Instructions forinstallation
Instructions for building in the units
The appliance is of class 3. It can be installed with just one side part (to right
or left of the hob) higher than the cooking hob and placed at a minimum
distance as shown in figure.
It can be built into all units whose walls withstand a temperature 65°C higher
than room temperature (UNI EN 30-1-1 e/o CEI EN 60335-2-6).
L
P
H
(mm)
(mm)
(mm)
hobs series
steel or enameled
glass
P
L
H
30
320
520
40
40
45
450
520
40
40
60
590
520
40
40
70
680
520
40
40
90
860
520
40
40
Avoid installing the appliance near inflammable materials (e.g. curtains,
cloths, etc.).

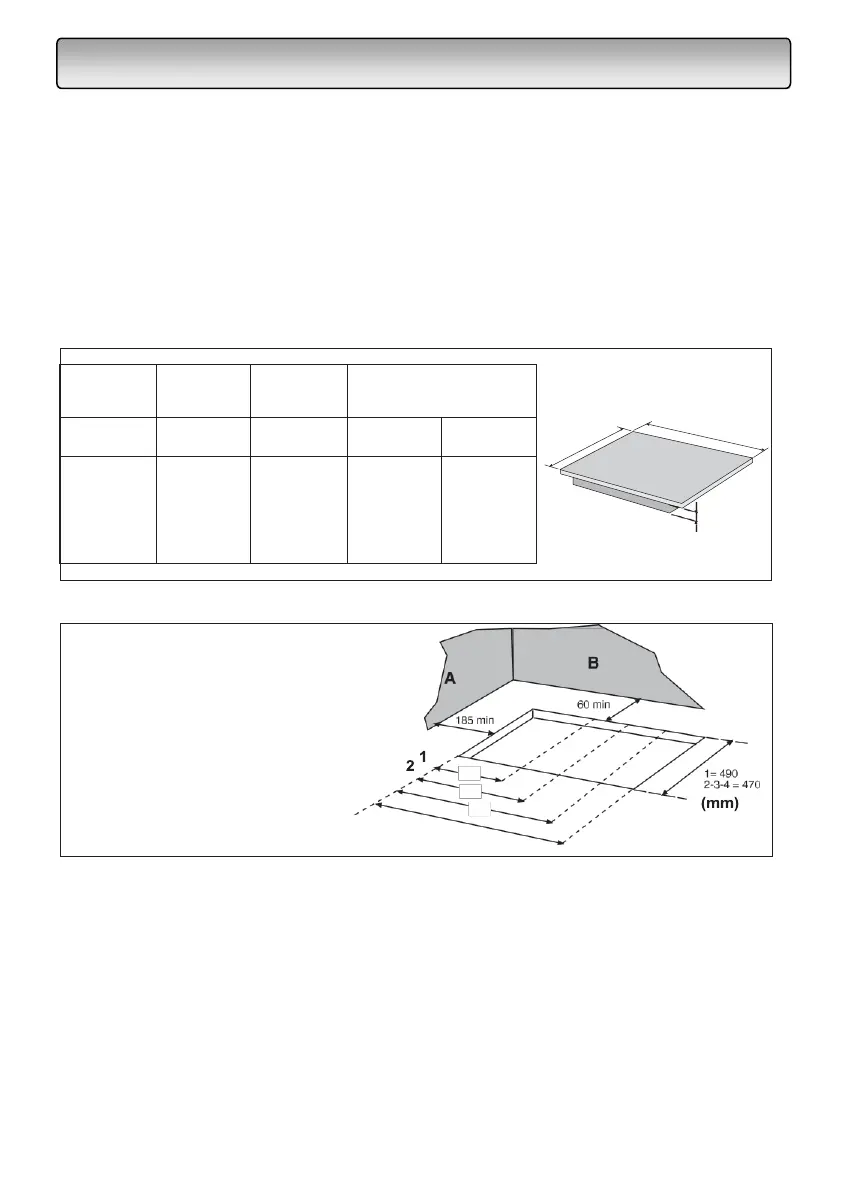

The dimensions of the openings for building in are given in the figure which
also gives the minimum distances to be respected between the hole for buil-
ding in and the side and back walls.
290
420
560
830
A = any side wall
B = any back wall
3
4
Hole dimensions
1 = hobs series 30 cm (290x490)
2 = hobs series 45 cm (420x490)
3 = hobs series 60 and 70 cm (560x490)
4 = hobs series 90 cm (830x490)
