11

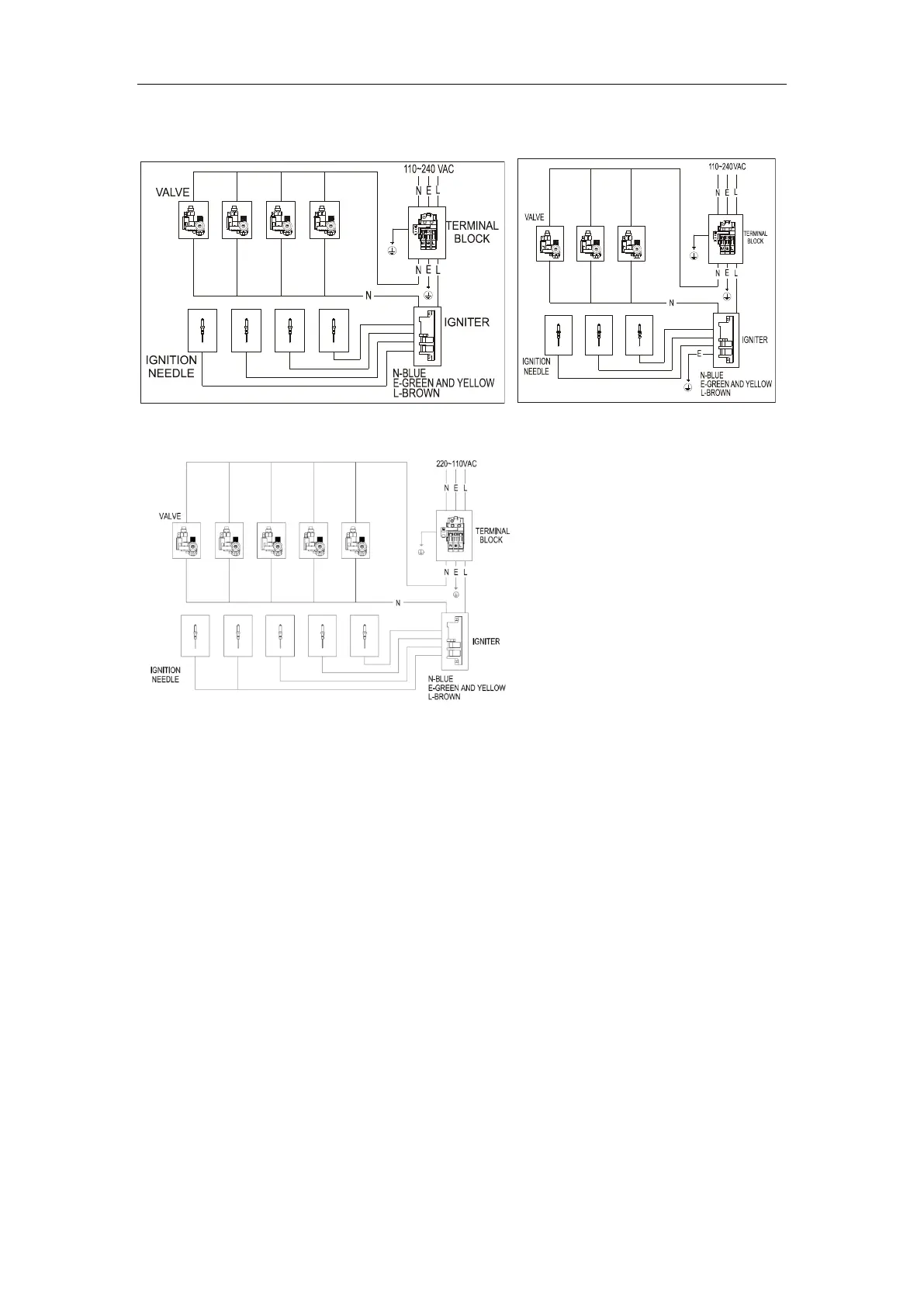

circuit diagram
Figure 20 (for the appliance with four bumers) Figure 21 (for the appliance with three burners)
Figure 22 (for the appliance with five bumers)
Use with D.C baterry
When your cooker is the one fitted with D.C supply device only,you are suggested to use one 1.5V battery.
Be sure that the battey is well fixed then you can follow the “Lighting”procedure.
Take off the battery if you won’t use the cooker for a long time.Check the working performance everytime before cooking.
