Installation

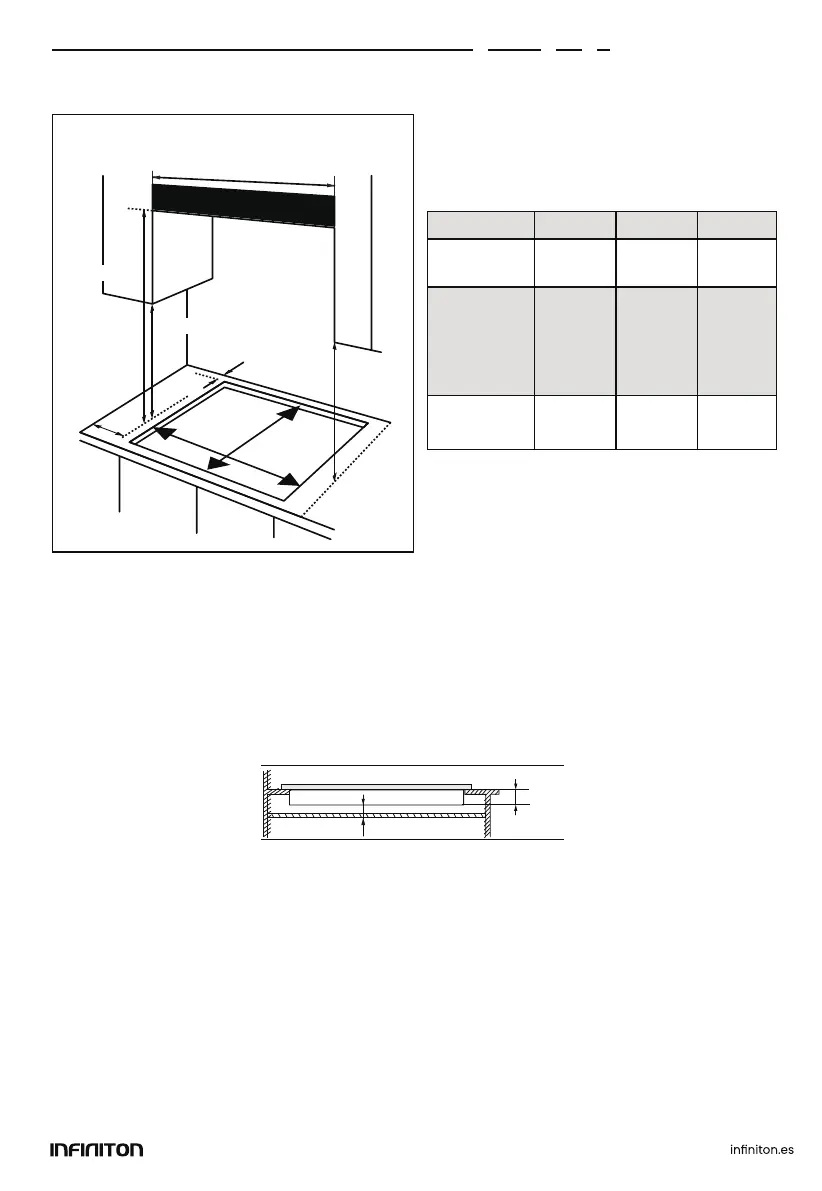

Required distances for the installation of the hob with an extractor hood above it
This appliance must be installed inside a kitchen, ensuring the minimum distance allowed:
•
•
•
Zmm cooker hood
700mm
400mm
400mm
6
0
m
m
2
0
0
m
m
M
in
.
X
Y
25mm(MIN)
45mm
Model X(mm) Y(mm) Z(mm)
GAS-CR2B
GAS-IX02
262 480 300
GG-331
GG-332
GGMCI-315
GG-429
GAS419H
GG-43BK
560 480 600
GAS-320WB
GASDL4
560 490 600
The edges of the hob should have a minimum distance of 60mm from one side or the back of the
hob.
700mm between the high point of the surface of the hob (including the burners) and the underside
of any horizontal surface on which it rests.
400mm between the surface of the plate, provided that the bottom of the horizontal surface is in line
with the other edge of the plate. If the bottom is lower than 400mm, then there should be at least
50mm horizontally to the edge of the plate.
Note: The oven must have forced ventilation to install a hob on top of it. Check the oven dimensions in
the installation manual.
