tallation for indoor unit

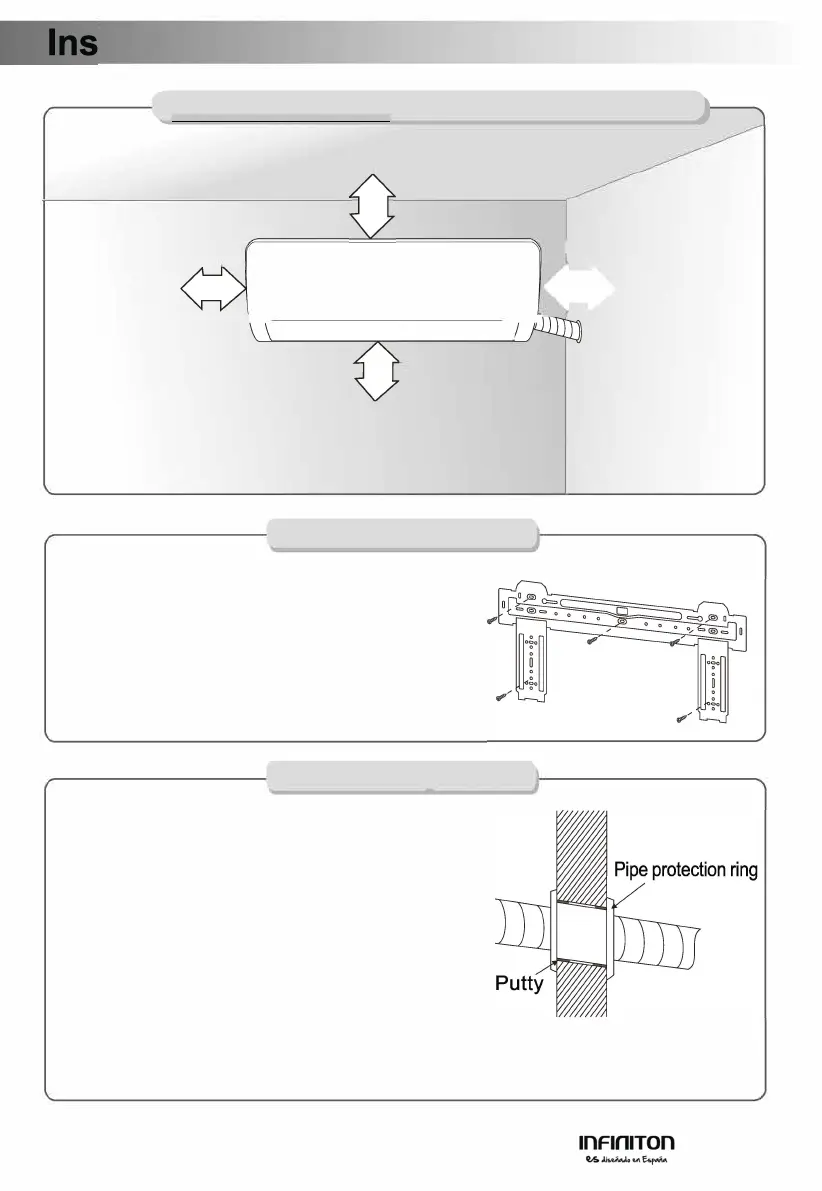

Dimension drawing
of indoor unit installation







Mounting plate

 
 


 

Wall-through Hole
  



º

º






Note: Usually, the wall hole is 60mm~80mm.
oid pre-buried power wire and hard wall
when making the hole.
