Installation
Place the portable air conditioner on the oor
horizontally and well leveled near the window.
For proper ventilation and better performance of the unit,
ensure that the portable air conditioner is at least 50 cm
away from nearby objects.

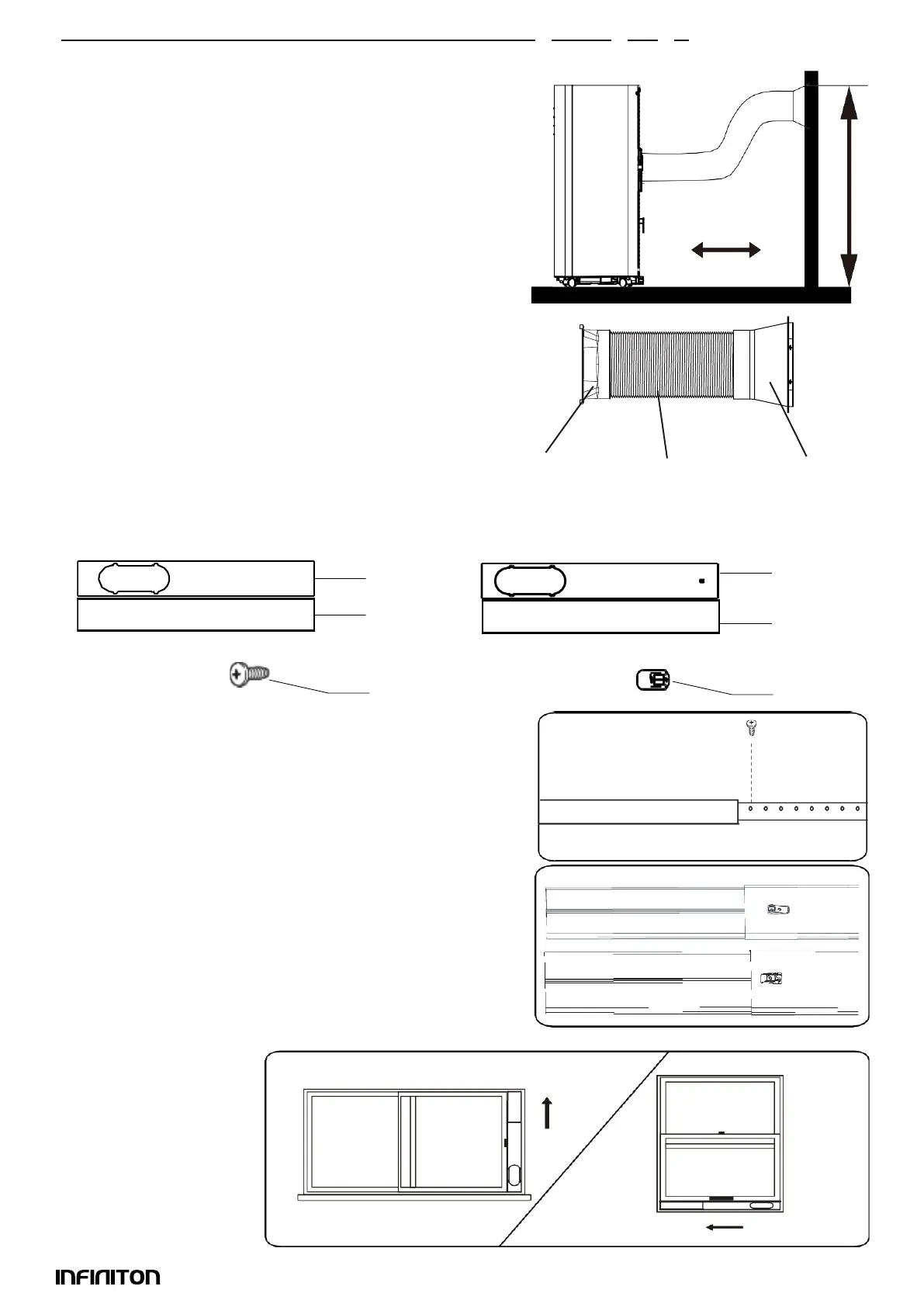

Install window sealing kit and corrugated air exhaust pipe.
Insert the corrugated air exhaust hose into the connector
on the rear of the unit.
Mount the window sealing kit as shown below.
Step 1:
A. Screw xing type
1. Measure the size of the window
2. Adjust the length of the plate according to the window
size
3. Fix the plate with a screw
B. Clip-on type
1. Measure the size of the window
2. Adjust the length of the plate according to the size of the
window.
3. Lock the plate with the help of the clip
Step 2:
Attach the plate to the
window.
50cm
90cm
C
onnector
Corru
g
ated pipe
Flat nozzl
e
Screw modelC lip model
Plate# 1
Plate# 2
Plate#
Plate# 2
Screw
Clip
