A
B
C
D
E
F
268＋4
-0 mm
500＋4
-0 mm
50mm mini
50mm mini
50mm mini
50mm mini

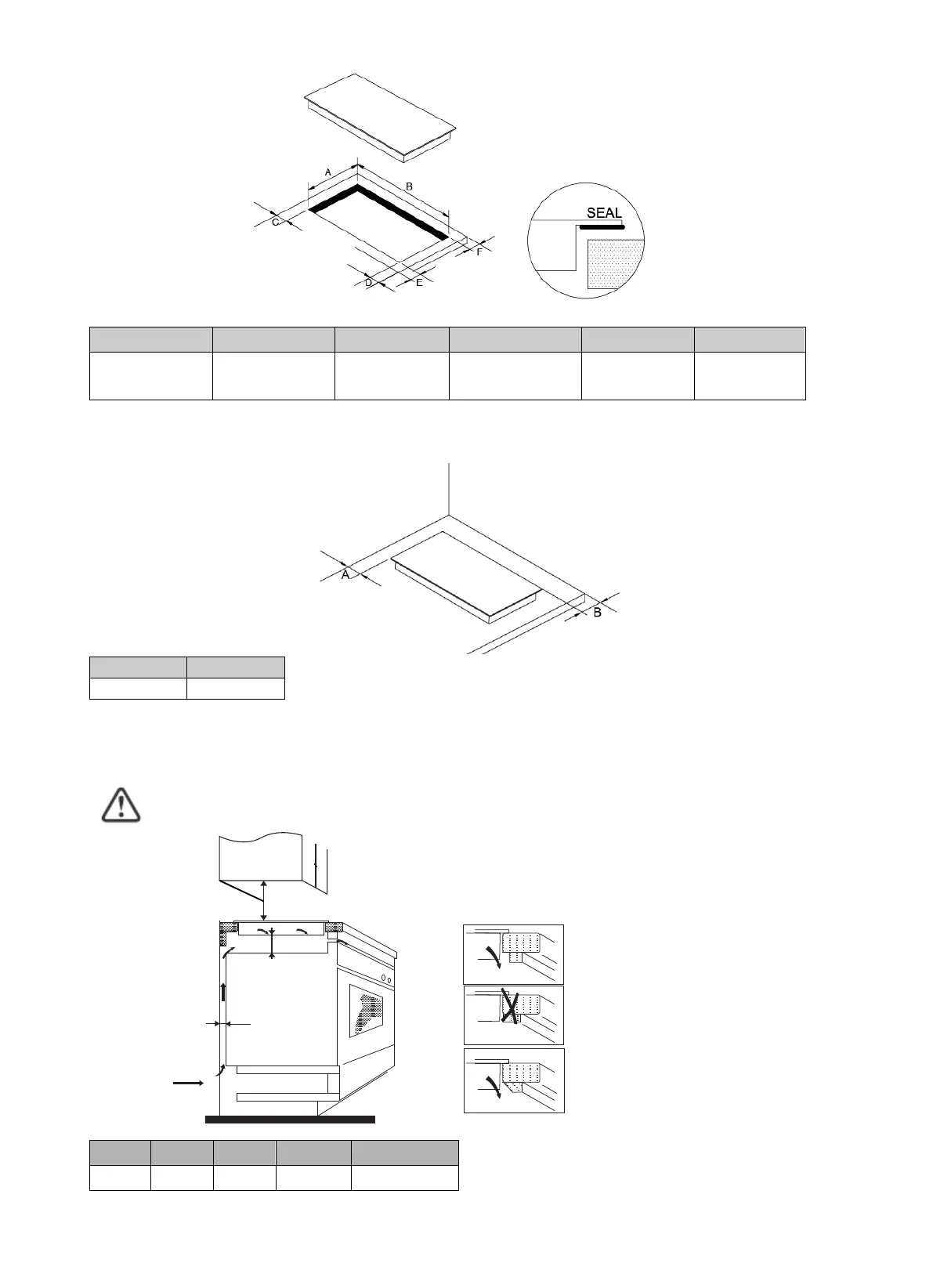

2. The ceramic cooker hob can be used on the table top of cabinet.The ceramic hob should be placed
horizontally. As shown below:
A
B
50mm mini
50mm mini
Under any circumstances, make sure the ceramic cooker hob is well ventilated and the air inlet and outlet
are not blocked. Ensure the ceramic cooker hob is in good work state. As shown below
Note: The safety distance between the hotplate and the cupboard above the hotplate should be at
least 760mm.
A(mm)
B(mm)
C(mm)
D
E
760
50 mini
30 mini
Air intake
Air exit 10 mm
8.2 Before locating the fixing brackets
A
B
E
C
D
