4
The 7541a can be set up for stereo 4-channel,
3-channel or bridged 2-channel operation, as
shown in Figures 7 through 9.
NOTE: For simplicity, Figures 7 through 9 do not
show power, remote and input connections.
NOTE: Minimum speaker impedance for
stereo operation is 2 ohms. Minimum speaker
impedance for bridged operation is 4 ohms.
NOTE: “Bass Boost” only affects rear channels.
APPLICATIONS – 7541a

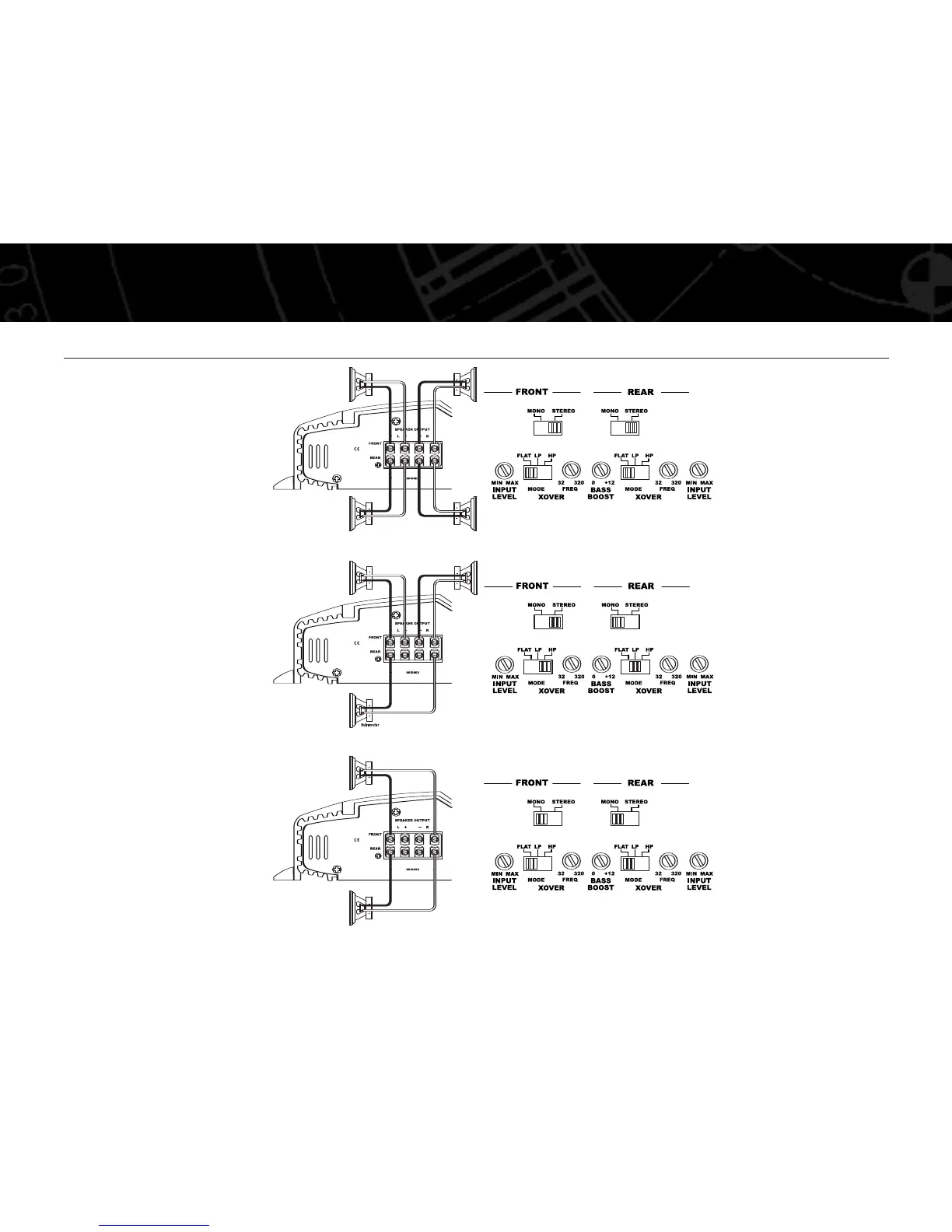

Figure 7. 7541a amplifier in 4-channel (stereo) operation to drive front and rear full-range speakers.
Figure 8. 7541a is set up for 3-channel operation to drive a set of full-range speakers and a subwoofer.
Figur
e 9.
7541a used in bridged 2-c
hannel mode to dri
ve a set of components or subwoofer
s.
