GI-46
< BASIC INSPECTION >
CONSULT-III/GST CHECKING SYSTEM
CONSULT-III/GST CHECKING SYSTEM
Description INFOID:0000000001679207

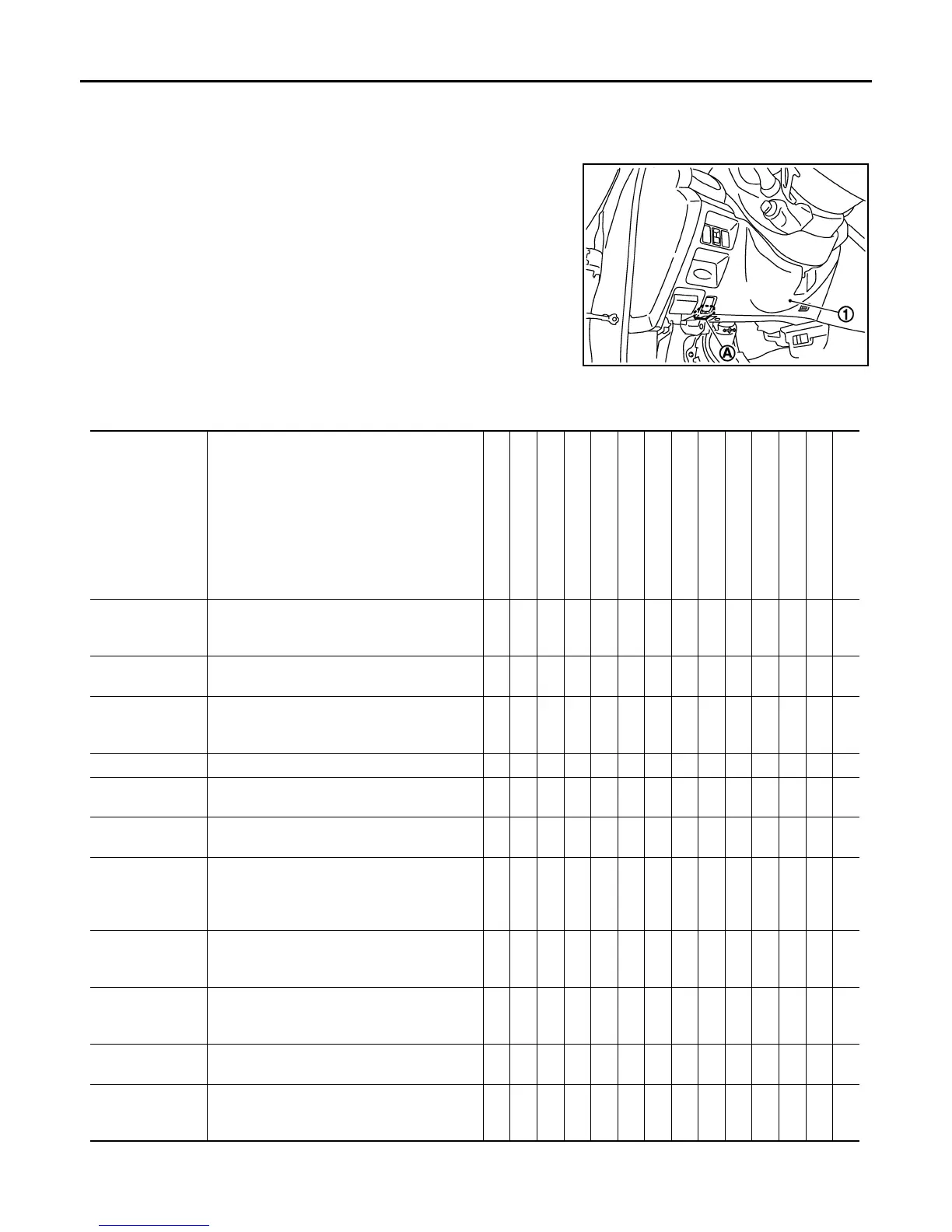

• When CONSULT-III/GST is connected with a data link connector
(A) equipped on the vehicle side, it will communicate with the con-
trol unit equipped in the vehicle and then enable various kinds of
diagnostic tests.
• Refer to “CONSULT-III Software Operation Manual” for more infor-
mation.
CONSULT-III Function and System Application*1 INFOID:0000000001679208
1 : Instrument driver lower panel
JPAIA0024ZZ
Diagnostic test
mode
Function
ENGINE
TRANSMISSION
AIR BAG
METER/M&A
BCM
AUTO DRIVE POS.
ABS (Including VDC)
IPDM E/R
ICC
4WAS(FRONT)
4WAS(MAIN)/RAS/HICAS
ADAPTIVE LIGHT
MULTI AV
PRE CRASH SEAT BELT
Work support
This mode enables a technician to adjust
some devices faster and more accurately by
following the indications on CONSULT-III.
xx--x-x-x--x--
Self-diagnostic
results
Self-diagnostic results can be read and
erased quickly.
xxxxxxxxxxxxxx
Trouble diagnos-
tic record
Current self-diagnostic results and all trouble
diagnostic records previously stored can be
read.
--x-----------
Data monitor Input/Output data in the ECU can be read. xx-xxxxxxxxxxx
CAN diagnosis
The condition of CAN communication line can
be indicated by a topology.
xxxxxxxxx-xxxx
CAN diagnosis
support monitor
The condition of CAN communication line can
be read.
xx-xxxxxxxxxxx
Active test
Diagnostic Test Mode in which CONSULT-III
drives some actuators apart from the ECUs
and also shifts some parameters in a speci-
fied range.
x- - -xxxxxxxx- -
DTC & SRT con-
firmation
The results of SRT (System Readiness Test)
and the self-diagnosis status/result can be
confirmed.
x-------------
DTC work sup-
port
This mode enables a technician to monitor
the status/results of self-diagnosis by the
ECU.
-x------------
ECU (ECM/TCM)
part number
ECU (ECM/TCM) part number can be read. xx- -xxxxxxxxxx
ECU discriminat-
ed No.
Classification number of a replacement ECU
can be read to prevent an incorrect ECU from
being installed.
--x-----------
Revision: 2007 June G37 Coupe
