[ Edit: 2016/ 6/ 21 Model: 2017MY INFINITI Q50(V37) OM17E00V37U0 ]
0-4 Illustrated table of contents
GUID-57AE6D4B-2D09-4713-AAB4-0355A17333C1

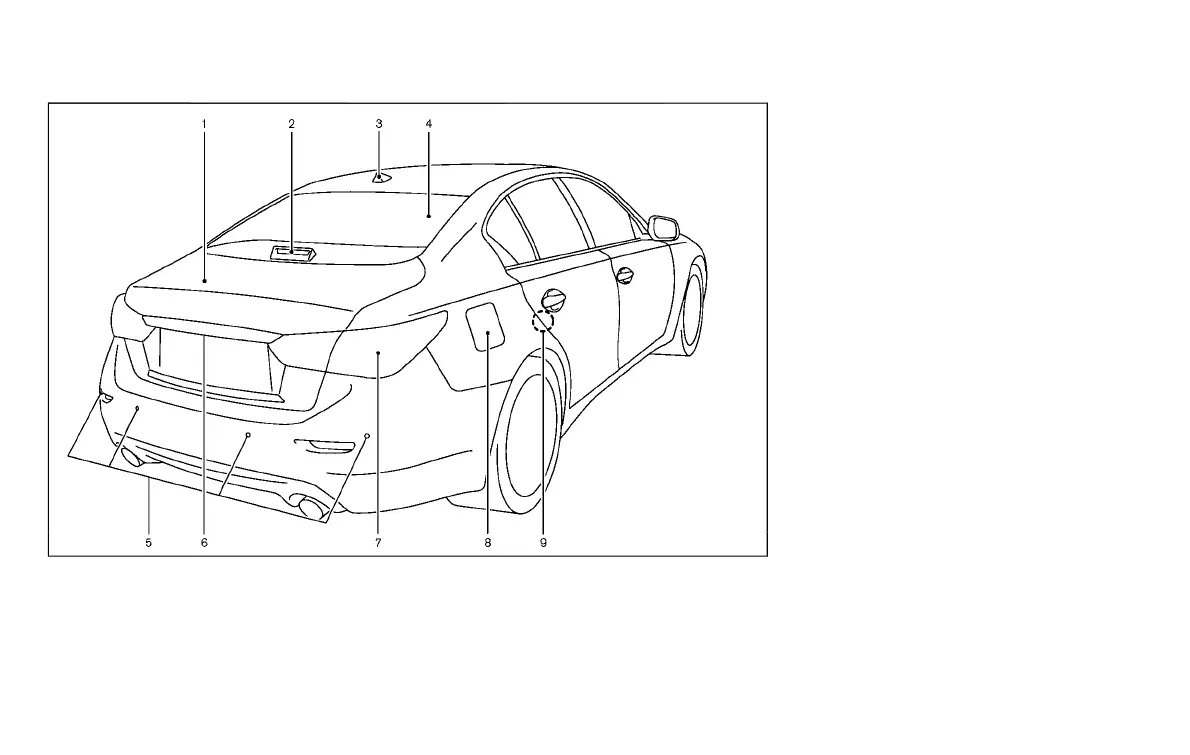

JVC0897X
1. Trunk
— Intelligent Key system (P.3-7)
— Remote keyless entry system
(P.3-16)
— Trunk lid (P.3-24)
— Auxiliary battery (for 2.0L turbo
gasoline engine models) (P.8-18)
2. High-mounted stop light (P.8-30)
3. Satellite antenna (P.4-3)
4. Rear window defroster (P.2-38)/An-
tenna (P.4-3)
5. Sonar system* (if so equipped)
— Back-up Collision Intervention
(BCI) system (if so equipped) (P.5-63)
6. Rear view camera*
7. Rear combination light (P.8-30)
8. Fuel-filler door
— Operation (P.3-27)
— Fuel information (P.10-4)
9. Child safety rear door locks (P.3-6)
*: Refer to the Infiniti InTouch Owner’s
Manual.
EXTERIOR REAR
