[ Edit: 2016/ 6/ 21 Model: 2017MY INFINITI Q50(V37) OM17E00V37U0 ]
V37-D-121025-3AA37B5B-1B7B-4B54-962C-B1F504C85062

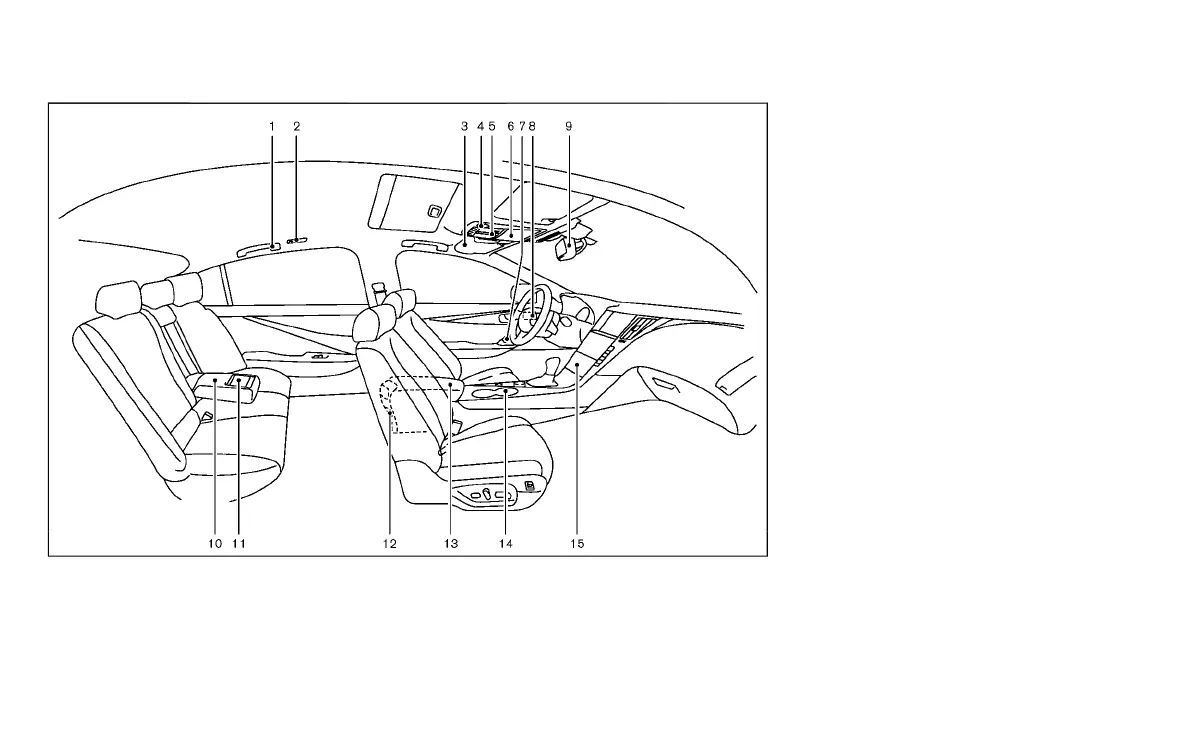

JVC0518X
1. Coat hooks (P.2-52)
2. Rear personal light (P.2-59)
3. Sun visors (P.3-31)
4. Map light (P.2-58)
— SOS call switch* (if so equipped)
5. Moonroof switch (if so equipped)
(P.2-56)
6. Sunglasses holder (P.2-50)
7. Power window switch (P.2-53)
8. Automatic drive positioner switch (if
so equipped) (P.3-34)
9. Inside mirror
— Operation (P.3-31)
— HomeLink
®
universal transceiver
(P.2-61)
10. Trunk pass-through/Rear armrest
(P.1-7)
11. Rear cup holders (P.2-49)
12. Rear ashtray (P.2-49)
13. Console box (P.2-51)
— Power outlet (P.2-48)
— Media hub*
14. Front cup holders (P.2-49)
15. Front passenger air bag status light
(P.1-52)
*: Refer to the Infiniti InTouch Owner’s
Manual.
Illustrated table of contents 0-5
PASSENGER COMPARTMENT
