[ Edit: 2016/ 8/ 1 Model: 2017MY INFINITI Q70(Y51) OM17E00Y51U0 ]
4-28 Monitor, climate, audio, phone and voice recognition systems
JVH1269X

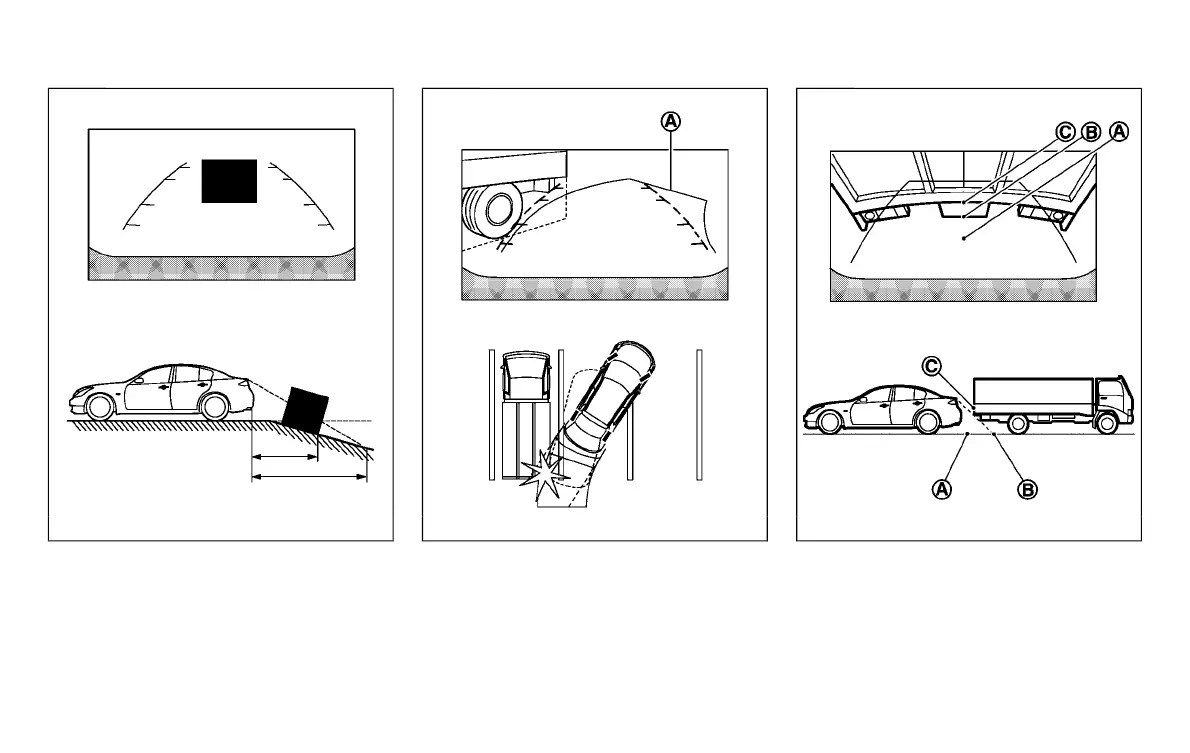

Backing up on a steep downhill
GUID-9C7A64C0-6B66-455E-BFE0-9223E29EC81C
When backing up the vehicle down a hill,
the distance guide lines and the vehicle
width guide lines are shown farther than
the actual distance. Note that any object on
the hill is closer than it appears on the
monitor.
SAA1923
Backing up near a projecting object
GUID-879B66FA-6EB4-4B9B-AE3D-2D38087973E0
The predictive course lines
*
A
do not touch
the object in the display. However, the
vehicle may hit the object if it projects over
the actual backing up course.
SAA2244
Backing up behind a projecting
object
GUID-B451CCFA-7EBC-40F8-92E2-F3DB9C6B18BC
The position
*
C
is shown further than the
position
*
B
in the display. However, the
position
*
C
is actually at the same
distance as the position
*
A
. The vehicle
may hit the object when backing up to the
Condition:
