[ Edit: 2016/ 8/ 1 Model: 2017MY INFINITI Q70(Y51) OM17E00Y51U0 ]
Front and rear view:
GUID-AD798049-CF2F-4C96-84E8-F03F26B4B7C4
Guiding lines that indicate the approximate
vehicle width and distances to objects with
reference to the vehicle body line
*
A
are
displayed on the monitor.
Distance guide lines
Indicate distances from the vehicle body.
. Red line
*
1
: approx. 1.5 ft (0.5 m)
. Yellow line
*
2
: approx. 3 ft (1 m)
. Green line
*
3
: approx. 7 ft (2 m)
. Green line
*
4
: approx. 10 ft (3 m)
Vehicle width guide lines
*
5
Indicate the vehicle width when backing
up.
Predictive course lines
*
6
Indicate the predictive course when oper-
ating the vehicle. The predictive course
lines will be displayed on the monitor when
the steering wheel is turned. The predictive
course lines will move depending on how
much the steering wheel is turned and will
not be displayed while the steering wheel
is in the straight-ahead position.
The front view will not be displayed when
the vehicle speed is above 6 MPH (10
km/h).
NOTE:
When the monitor displays the front view
and the steering wheel turns about 90
degrees or less from the straight ahead
position, both the right and left predictive
course lines
*
6
are displayed. When the
steering wheel turns about 90 degrees or
more, a line is displayed only on the
opposite side of the turn.
JVH1140X

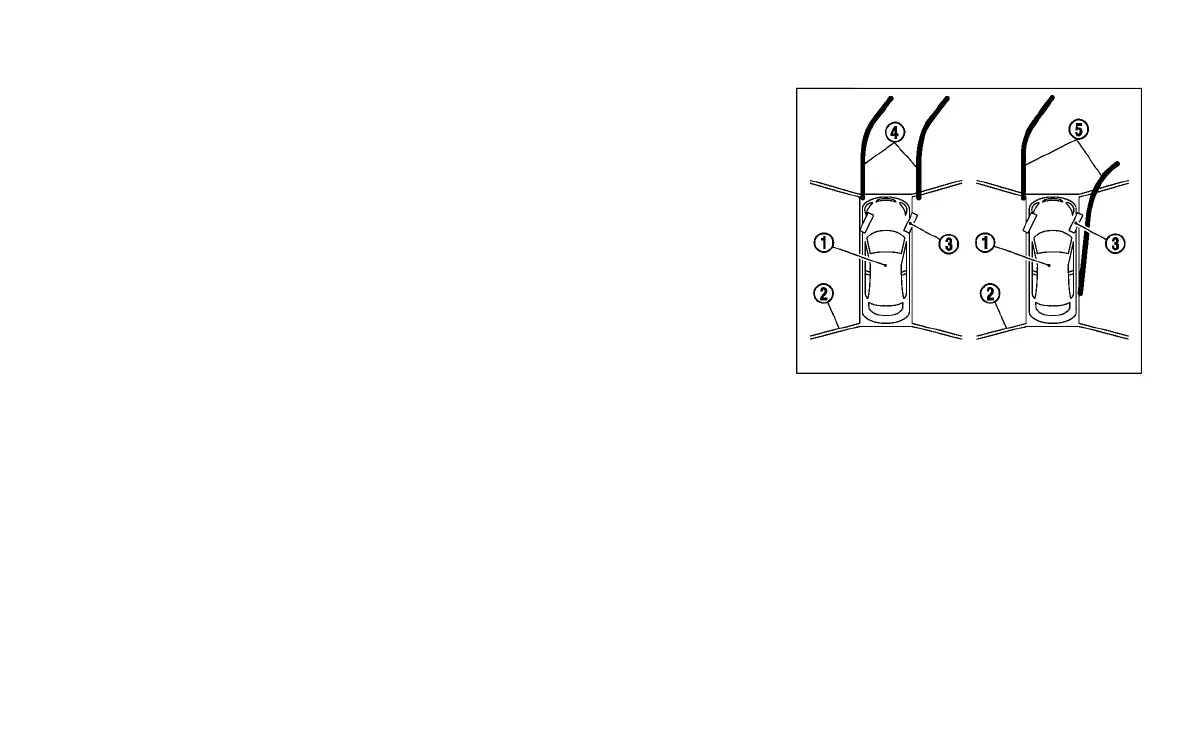

Bird’s-eye view:
GUID-F638B05C-385F-4D8A-A347-05FDAC3622FF
The bird’s-eye view shows the overhead
view of the vehicle, which helps confirm
the vehicle position and the predictive
course to a parking space.
The vehicle icon
*
1
shows the position of
the vehicle. Note that the size of the
vehicle icon on the bird’s-eye view may
differ somewhat from the actual distance
to the vehicle.
The areas that the cameras cannot cover
*
2
are indicated in black.
The non-viewable area
*
2
is highlighted in
yellow for several seconds after the bird’s-
Monitor, climate, audio, phone and voice recognition systems 4-35
