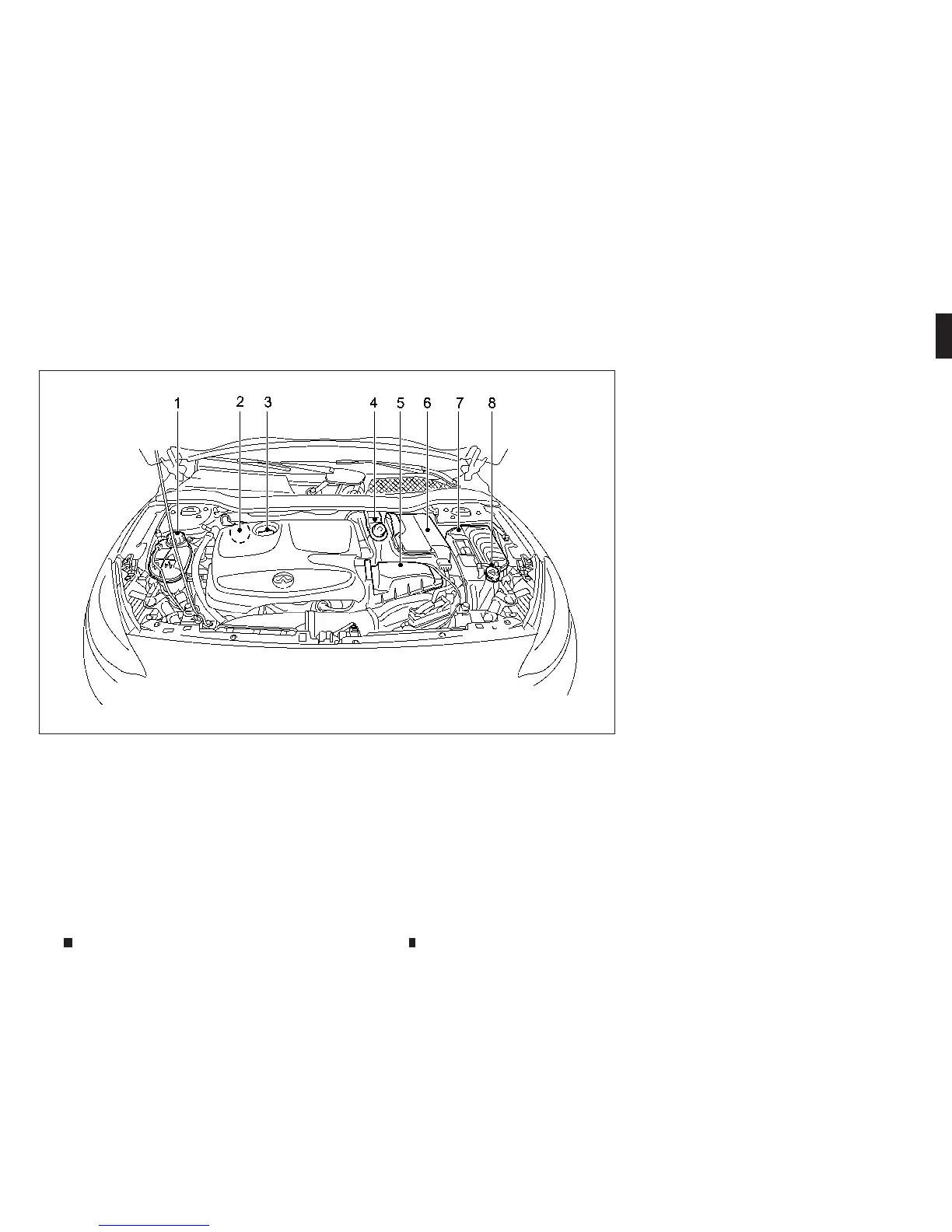

1.6L AND 2.0L PETROL ENGINE
1.
Engine coolant reservoir (P.8-6)
2.
Engine oil dipstick(P. 8-8)
3.
Engine oil filler cap(P. 8-8)
4.
Brake/clutch fluid reservoir* (P.8-13)
5.
Engine air cleanerfilter (P.8-14)
6. Battery(P. 8-17)
7.
Fuse box(P. 8-21)
8.
Window washer fluid reservoir (P.8-17)
*The layout illustrated is forthe Left-Hand
Drive (LHD) model. On the Right-Hand Drive
(RHD) model, these components are located
on th
eo
pposite
si
de.
NIC2833
ENGINE COMPARTMENT
