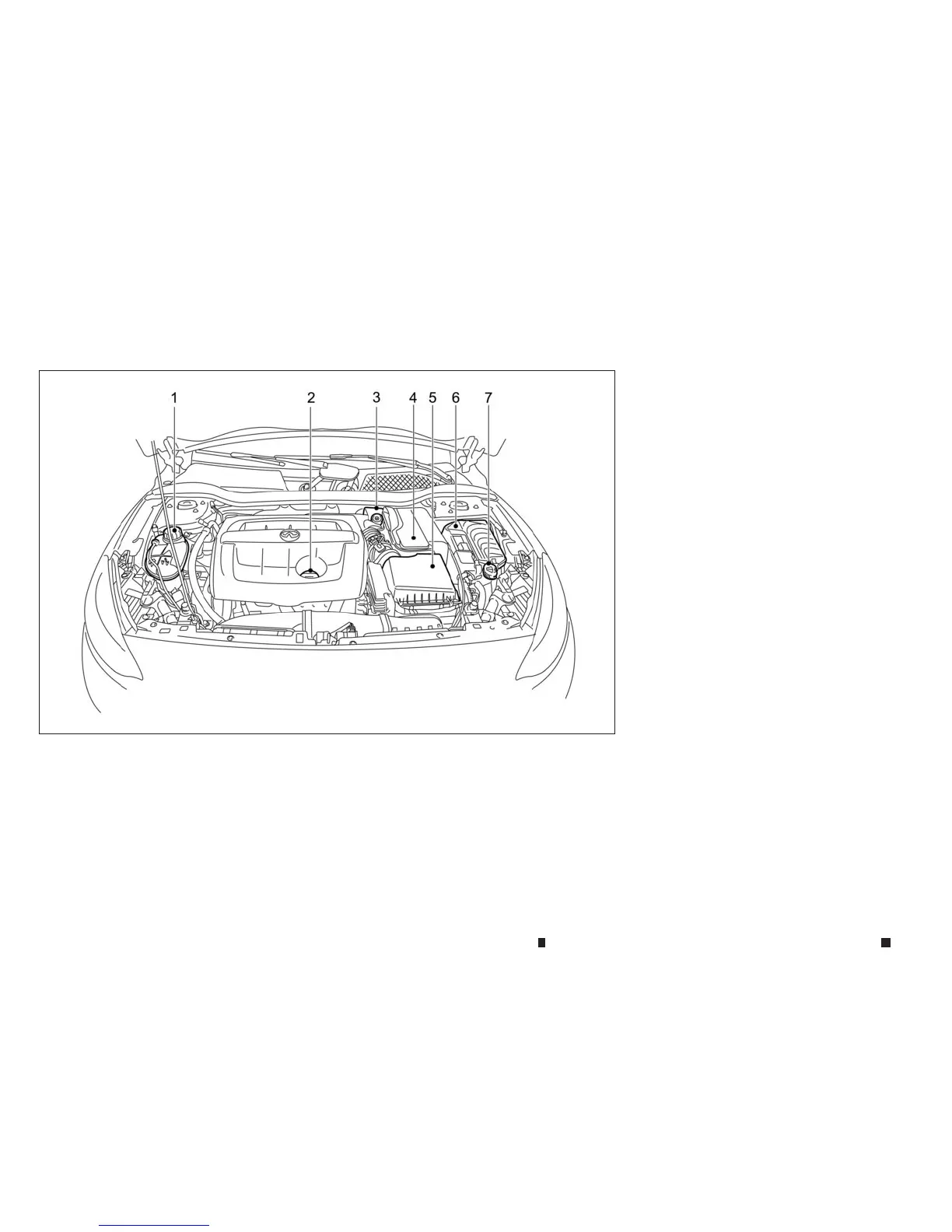

1.5L DIESELENGINE
1.
Engine coolant reservoir (P.8-6)
2.
Engine oil filler cap/Dipstick(P. 8-8)
3.
Brake/clutch fluid reservoir* (P.8-13)
4.
Battery(P. 8-17)
5.
Engine aircleaner filter (P.8-14)
6. Fuse box(P. 8-21)
7.
Window washer fluid reservoir (P.8-17)
*The layout illustrated is forthe Left-Hand
Drive (LHD) model. On the Right-Hand Drive
(RHD) model, these components are located
on theopposite side.
NIC2658
0-12 Illustratedtable of contents
