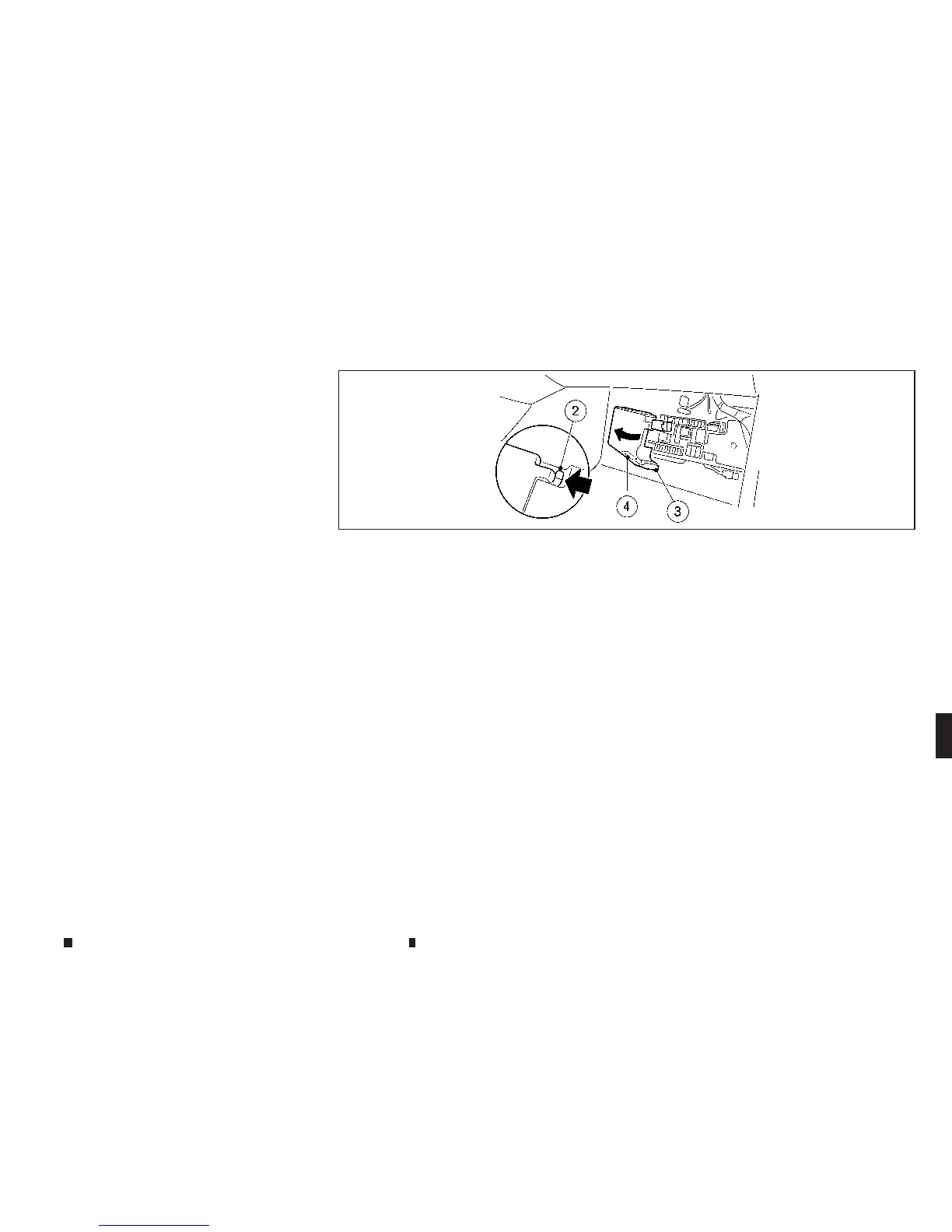

To open:
1. Open thefront-passenger door.
2. Remove the floor mats.
3. Fold out perforated floor covering
j
1inthe
directionofthe arrow.
4. To releasecover
j
3pressretaining clamp
j
2.
5. Fold out cover
j
3inthe direction of the ar-
row to the catch.
6. Remove cover
j
3forwards.
NOTE
Fuse allocation chart
j4islocated on the lower right-
hand side of cover
j3.
To close:
1. Insertcover
j
3onthe left-hand side of the
fuse boxinto the retainer.Cover
j
3engages
in the retainers.
2. Fold down cover
j
3until clamps
j
2lockau-
dibly.
3. Fold backperforated floor covering
j
1.
4. Fit the floor mats.
