LIGHT LOCATIONS
j
1Side turn signal light
j
2
Room light/Map lights (where fitted)
j
3
Daytimedriving light and sidelights and
turn signal (where fitted)
j
4
Low/High beam headlight
j
5
High beam headlight or turn signal
j
6
Cornering light (where fitted)
j
7
Front fog light (where fitted)
j
8
Daytimedriving light and sidelights
j
9
Footwelllight (where fitted)
j
10
Room light (where fitted)
j
11
High mounted stop light
j
12
Number plate light
j
13
RearFog and Reversing light
j
14
Brake light
j
15
Turn signal light
j
16
Tail light
Frontlight unit
Halogen type:
j
1
Turn signal light
j
2
Daytimedriving light and sidelight
j
3
High/Low beam halogen projector
headlights
j
4
Sidemarker light (where fitted)
j
5
Reflector (where fitted)
j
6
Daytimedriving light and sidelights
LED type:
j
1
Cornering light
j
2
Additional high-beam headlight
j
3
Daytime driving lightand sidelight and
turn signal light
j
4
High/Low beam LEDprojector headlights
and Adaptive Front Lighting system (where
fitted)
j
5
Sidemarker light (where fitted)
j
6
Reflector (where fitted)
j
7
Daytimedriving light and sidelights

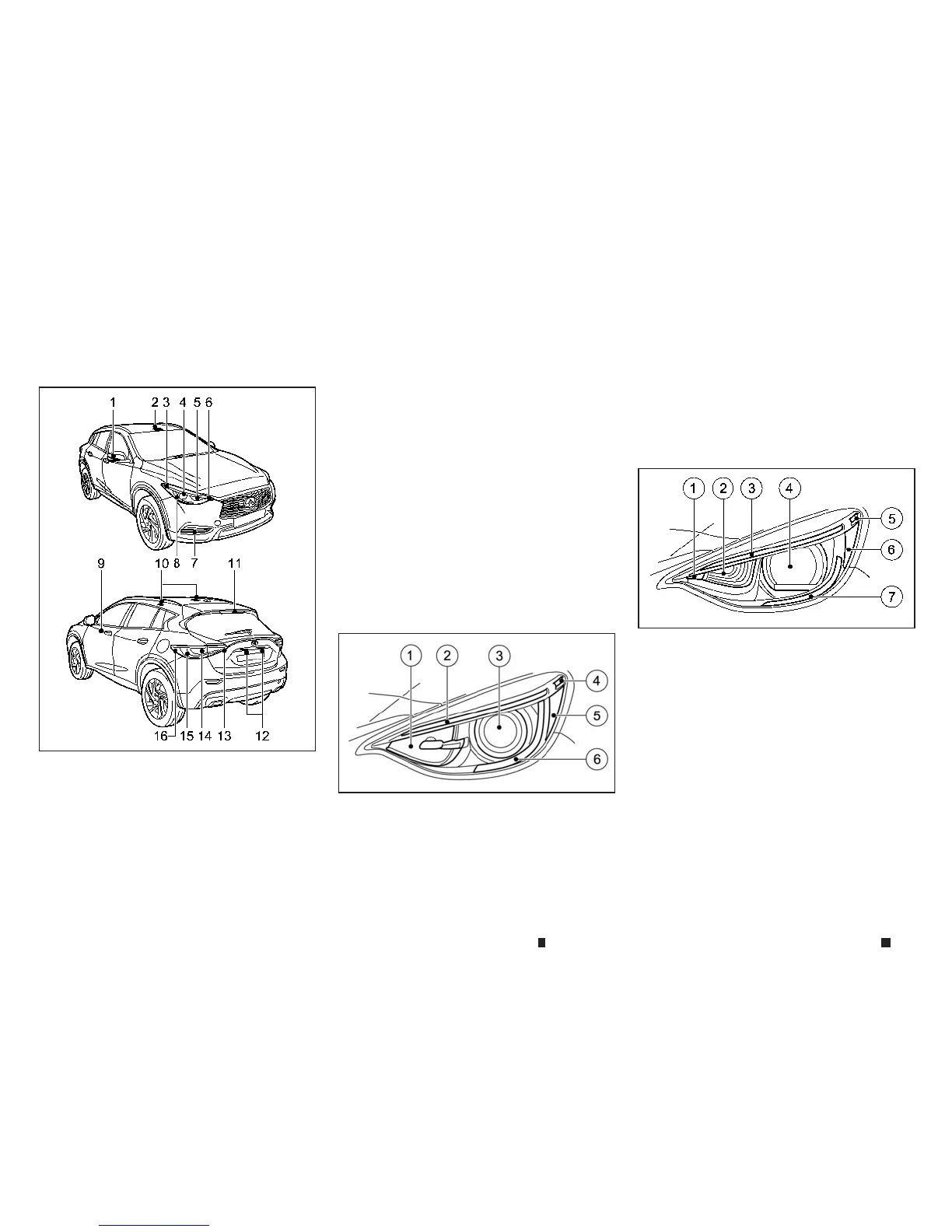

NDI1625
Light locations
NDI1613
Halogen type
NDI1614
LED type
