Setting up the Projector
F
IGURE
19

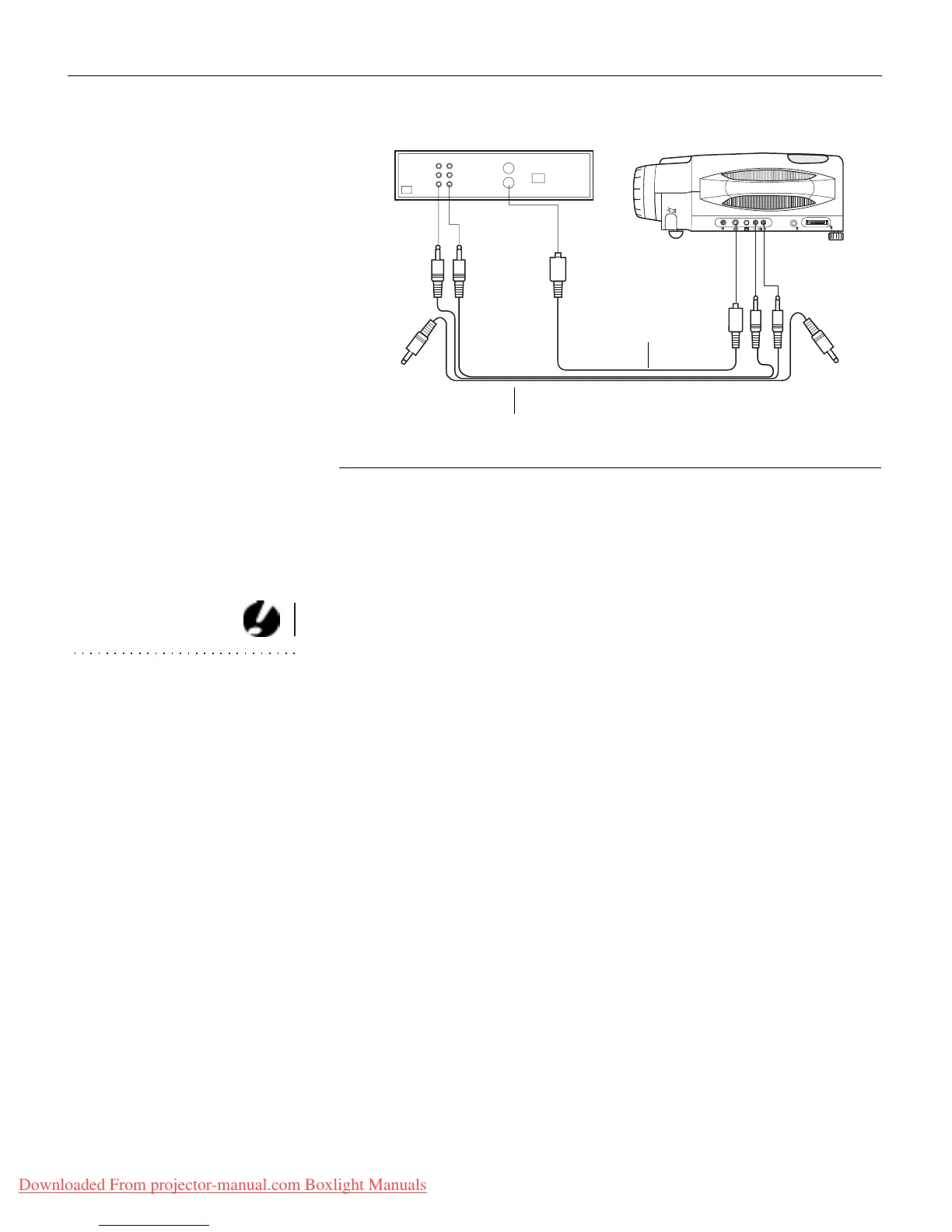

Connecting the projector to a video player using an S-video cable and the audio con-
nectors on the standard A/V cable
4 Plug the A/V cable’s white connector into the left “audio out”
port on your video player. Plug the cable’s red connector into
the right “audio out” port on the video player (Figure 18 and
Figure 19).
CAUTION: Your video player
may also have a “Video Out” port
for a coaxial cable connection.
DO NOT use this to connect to the
projector.
•
If you’re using an S-video cable, the yellow connectors on
the A/V cable remain unused (Figure 19).
5 Plug the A/V cable’s other white and red connectors to the
left and right “audio in” ports on the projector.
The projector is compatible with the these major broadcast video
standards: NTSC, NTSC 4.43, PAL and SECAM. It automatically
adjusts to optimize its performance for the incoming video. You
can also set the video standard manually from the projector’s
Controls menu; see “Video Standard” on page 37.
A/V cable
S-video cable
