4
P7648 Edition 1

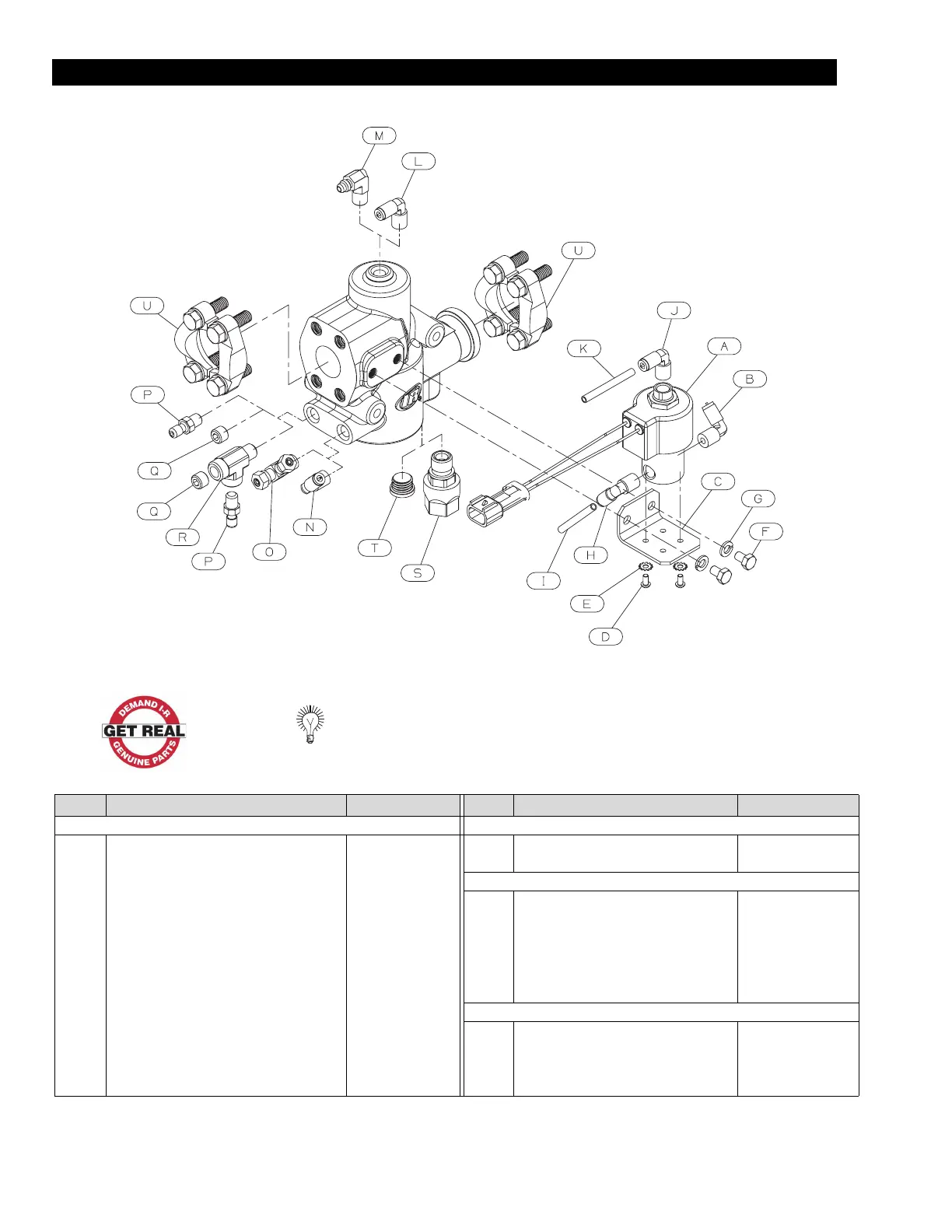

OPTIONAL EQUIPMENT
(Dwg. TP2212)
Item Part Description Part Number Item Part Description Part Number
Solenoid and Mounting Hardware - Position 1 Pilot Port Hardware - Position 2
A Solenoid L 90° Elbow with Push to Lock . . . . . . . . . EL90-4M4DOT
12 Volt, Pioneer Connections . . . . . . . . 150BMP-A1051C M 90° Elbow with JIC 37° . . . . . . . . . . . . . EL90-4M437M
12 Volt, Wire Leads . . . . . . . . . . . . . . . 150BMP-1051B Left and Right Live Air Port hardware - Position 3 and 4
12 Volt, Wire Leads . . . . . . . . . . . . . . . 150BMP-2451B N 90° Elbow with Push to Lock . . . . . . . . . EL90-4M4DOT
B 90° Elbow with Push to Lock . . . . . . . . . . . EL90-4M4DOT O T Connection with Push to Lock . . . . . . 150TMP-MRT4M4
C Solenoid Mounting Bracket . . . . . . . . . . . . . 150TMP-2451 P Schrader Valve . . . . . . . . . . . . . . . . . . . . 04333654
D Solenoid Mounting Screw (2) . . . . . . . . . . . Y133-105C Q 1/4” Pipe Plug . . . . . . . . . . . . . . . . . . . . . HSPPS-2
E Solenoid Mounting Screw Washer (2). . . . . Y117-110 R T Fitting with 1/4” NPT . . . . . . . . . . . . . SRV125F-188
F Solenoid Mounting Bracket Screw (2) . . . . 150TMP-128 + Pressure Gauge . . . . . . . . . . . . . . . . . . . . SRV125F-1064
G Solenoid Mounting Bracket Washer (2) . . . Y14-516C Secondary Inlet Port Hardware - Position 5
H 90° Elbow with Push to Lock . . . . . . . . . . . EL90-4M4DOT S Check Valve . . . . . . . . . . . . . . . . . . . . . . ST400-1056
I Connection Hose . . . . . . . . . . . . . . . . . . . . . 150TMP-125 T Plug . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SRV125F-34
J 90° Elbow with Push to Lock . . . . . . . . . . . EL90-4M4DOT U 1-1/4” Flange Kit . . . . . . . . . . . . . . . . . . ST500-K166
K Connection Hose . . . . . . . . . . . . . . . . . . . . . 150TMP-125
(+) Items Not Shown
For Position Coding information refer to Drawing 10554749
When ordering, use applicable part number
