MIXING AMPLIFIER

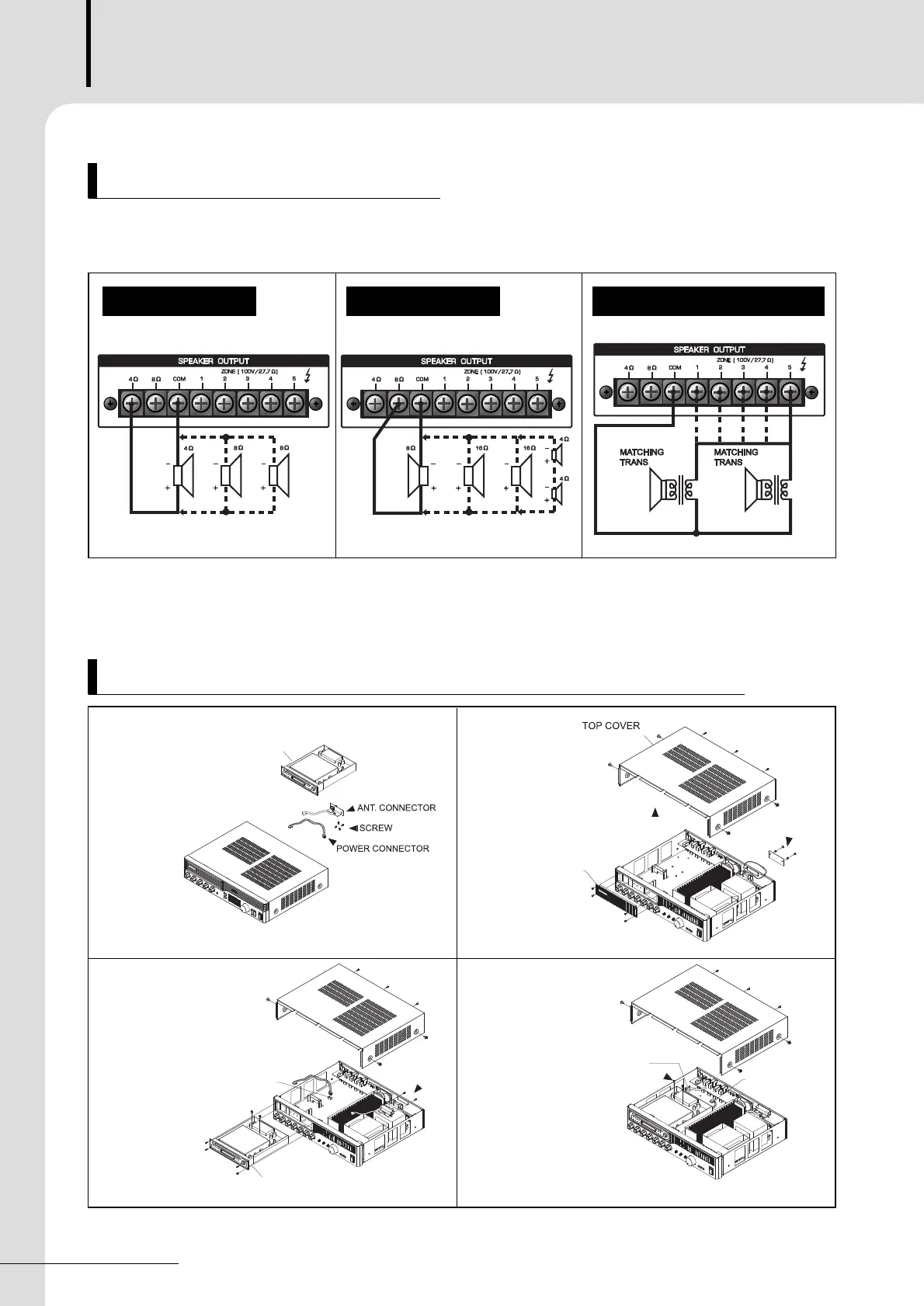

Connecting Speaker

Setting IPA-CDR/U(CD&MP3, TUNER , USB MODULE)

When connect speaker, pull a power cord from the outlet. And then, select a proper terminal depends on your speaker

types and connection methods to connect it to speaker terminals on the rear panel.

Total impedance of speaker terminal must be higher than regulated impedance in any time, and do not use two sorts of

impedance simultaneously.

8 IPA-60/120/240/360

For example at 4

Ω

For example at 8

Ω

For example at Hi-Z(IPA-360)

FIG. 2FIG. 1

FIG. 3 FIG. 4

IPA-CDR/U

FIX TO CONNECTOR

FIX TO ANT

TERMINAL

IPA-CDR/U

FIX TO CD MODULE

BY SCREW

WIRE FORMING

TAKE OUT SCREW

BLANK PANEL

TAKE OUT REVET

PRODECURE 1

1. Take out top cover and blank panel

2. Take out the antenna jack cover

PRODECURE 3

1. Assemble the CD module

2. Assemble the antenna jack

PRODECURE 4

1. Fix screws inside of CD module

2. Put the CD module connector

3. Close the tope cover

4. Fix a form to do not touch antenna wire with heat sink by using tie band
