BASKET - From the top of the pole
slide the basket down and line up
the 2 holes for the hex bolt, with the
threaded hole on the same side of
the pole as the locking collar tab.
Insert 5/16" x 2 3/4" hex bolt and
tighten locknut. Apply a small
amount of threadlock to the 1/4" x
3/8" hex bolt and insert into the
threaded hole on the basket and
tighten against the pole.
TARGET TOP - Hold up target top to
make sure chains hang freely and
are not tangled. While holding up
target top tilt slightly and slide the
two rings at bottom of chains onto
top of pole. Be careful not to let any
chains cross between the top of the
pole and the hole in the center of
the target top , as you put the target top onto the pole. Line up the three
holes on the target top with the top 3 holes on the pole. Insert and
tighten 1/4" x 3/4" one-way screw into threaded hole on front of target
top lining up with tab of locking collar. Start the 1/4" washer and locknut
onto back of owe-way screw. (Do not tighten) Insert 5/16" x 2 3/4" hex
bolt through target top and pole tighten locknut. At this point tighten
the 1/4" locknut onto one-way screw.
LOCKING COLLAR - From the
bottom end of the pole the locking
collar should slide onto and line up
with the bottom 3 mounting holes,
with the tab portion at the bottom
of the collar. Insert and tighten the
1/4" x 3/4" one-way screw into the
threaded hole above the tab. Insert
the 5/16" x 2 3/4" hex bolt through the
collar and pole and tighten locknut.
Step 1
Step 2
Step 3
Diagram 2.2 Basket
1/4 x 3/8 Bolt
washer
locknut
Diagram 2.3 Target Top
Parts (included per target)
• One Pole
• One Target Top (w/chains)
• One Basket
• One Locking Collar
Assembly Tools and Extras
(not included)
• One padlock per target
• Two ½
” and one /”
wrenches or sockets
• Flat head screwdriver (short)
WAIT AT LEAST 24 HOURS AFTER POURING CONCRETE TO INSTALL ASSEMBLED TARGETS.
You must be patient enough to let the concrete set thoroughly before putting the target in. This
usually takes at least one day.
Diagram 2.1 Locking Collar
East Coast Sales
(800) 476-3968
2850 Commerce Drive | Rock Hill, SC 29730
West Coast Sales
(800) 408-8449
900 S. Dupont Ave. | Ontario, CA 91761
w
w
w
.
i
n
n
o
v
a
d
i
s
c
s
.
c
o
m
Still have questions? Give us a call.
target
top
basket
mounting
holes
mounting
holes
mounting
holes
target pole
locking tab
installation
tube
hex head
bolt
hex head
bolt
hex head
bolt
one-way
screw

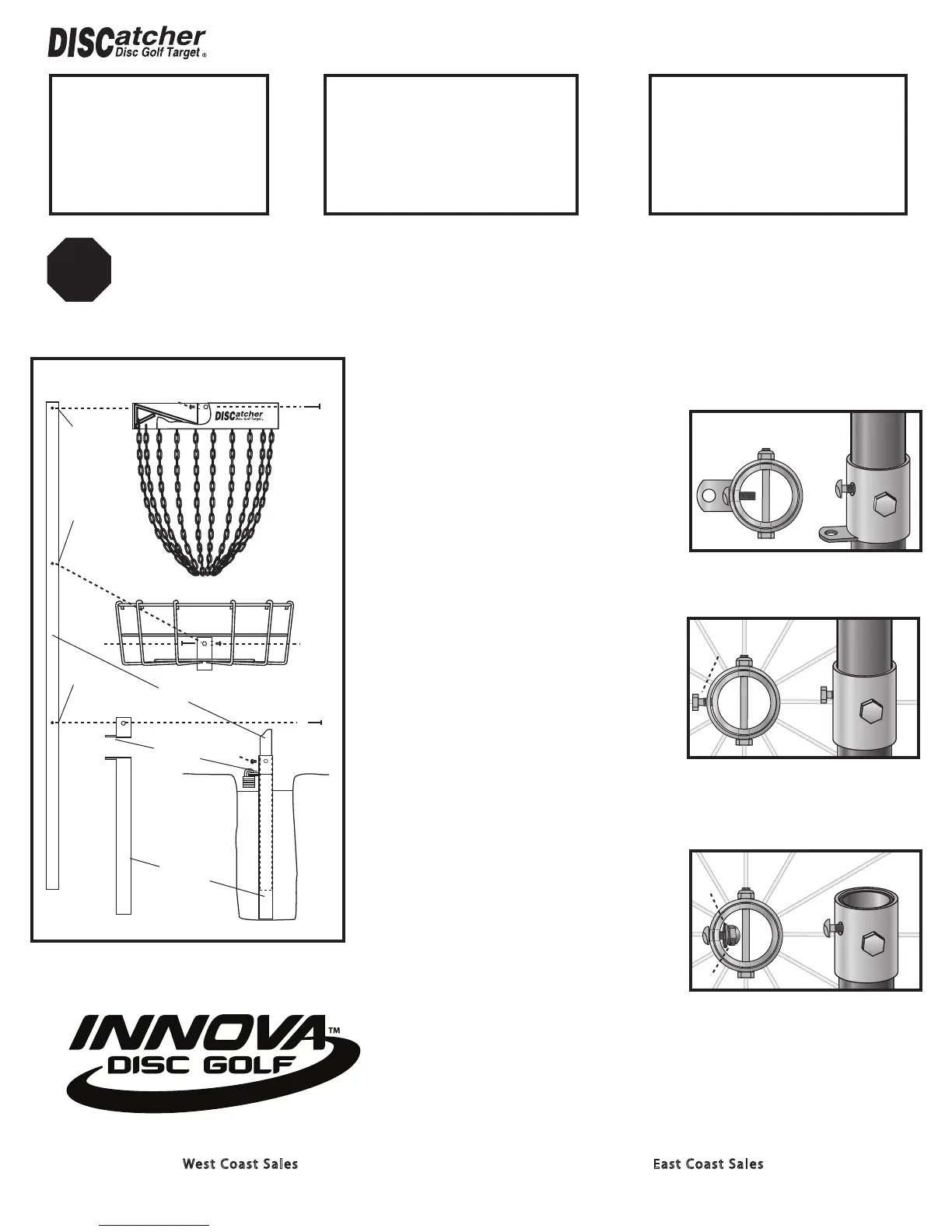

Diagram 2
small hex
bolt
one-way
screw
Hardware (included per target)
• Three ⁄” x 2¾” hex head bolts
• Two ¼” x ¾”
One ¼” x ⁄” hex head bolt
one-way screws
•
• Three / ” lock nuts
• One ¼” lock nut
• One ¼” washer
ASSEMBLING THE DISCATCHER® TARGET (Diagram 2)
STOP
The easiest way to assemble the DISCatcher® Target is with the pole on the ground
(the top of the main pole has mounting holes drilled within an inch of the end).
Page 2
