SERIAL COMMUNICATION PROTOCOL
The device supports multiple baud rates. These can be programmed using the HID
interface.
 9600 baud [default]
 19200 baud
 38400 baud

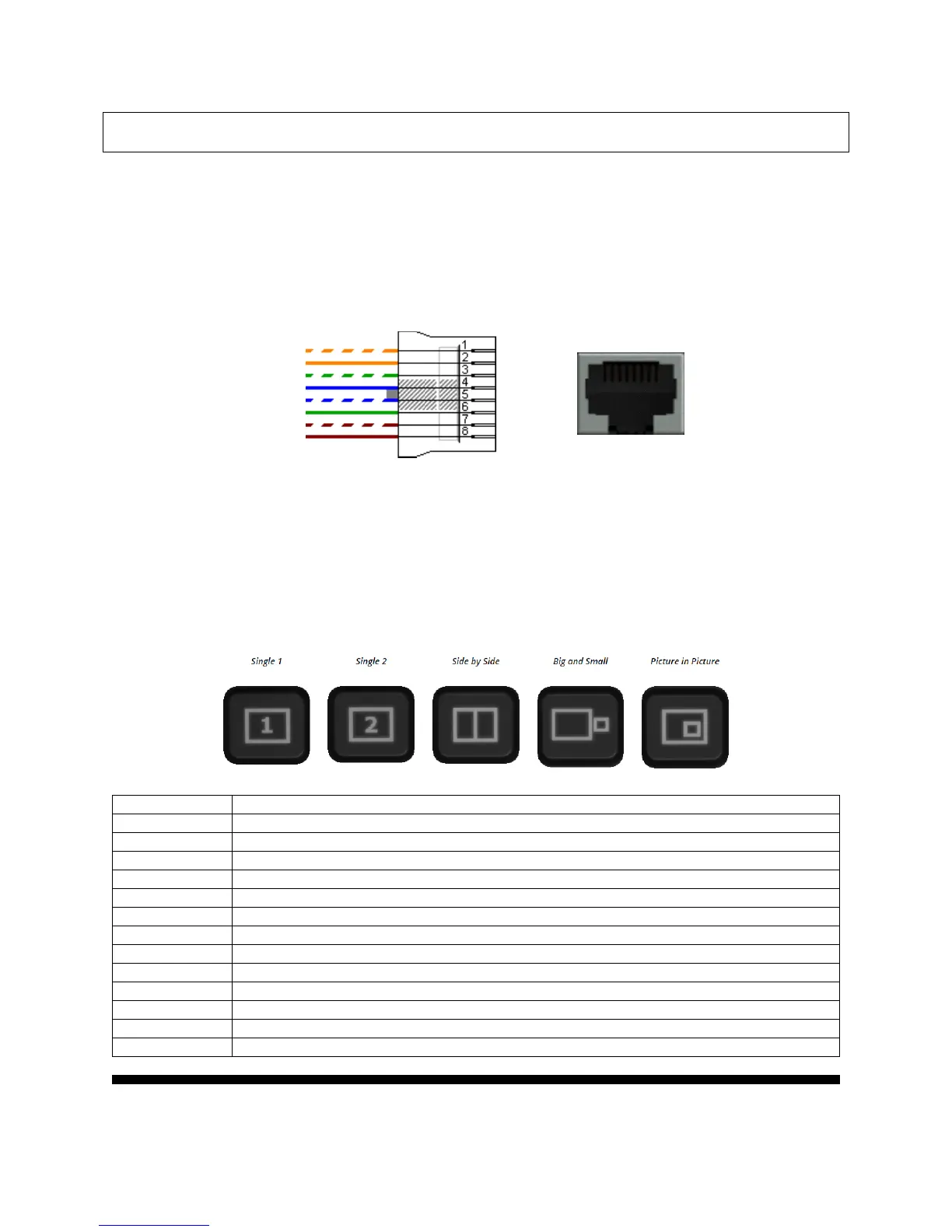

RJ45 cable pinout
Commands
Commands sent to the serial interface must have the ‘<’ character at the beginning and
‘>’ character at the end. If the commands are recognized and executed properly, the
“ACK” string will be sent.
Input 1 is the HDMI stream.
Input 2 is the DVI or composite stream.
COMMAND
Command description
<S1>
Source 1
<S2>
Source 2
<SS>
Side by Side View
<BS>
Big and Small View
<PPTR>
Picture in Picture at top right corner
<PPTL>
Picture in Picture at top left corner
<PPBR>
Picture in Picture at bottom right corner
<PPBL>
Picture in Picture at bottom left corner
<SW>
Swap View
<SS1>
Side by Side View where Input 1 is at the left side
<SS2>
Side by Side View where Input 2 is at the left side
<BS1>
Big and Small View where Input 1 is at the left side
<BS2>
Big and Small View where Input 2 is at the left side
RX 
TX 
GND
+5V
NC
NC
NC
NC
1
