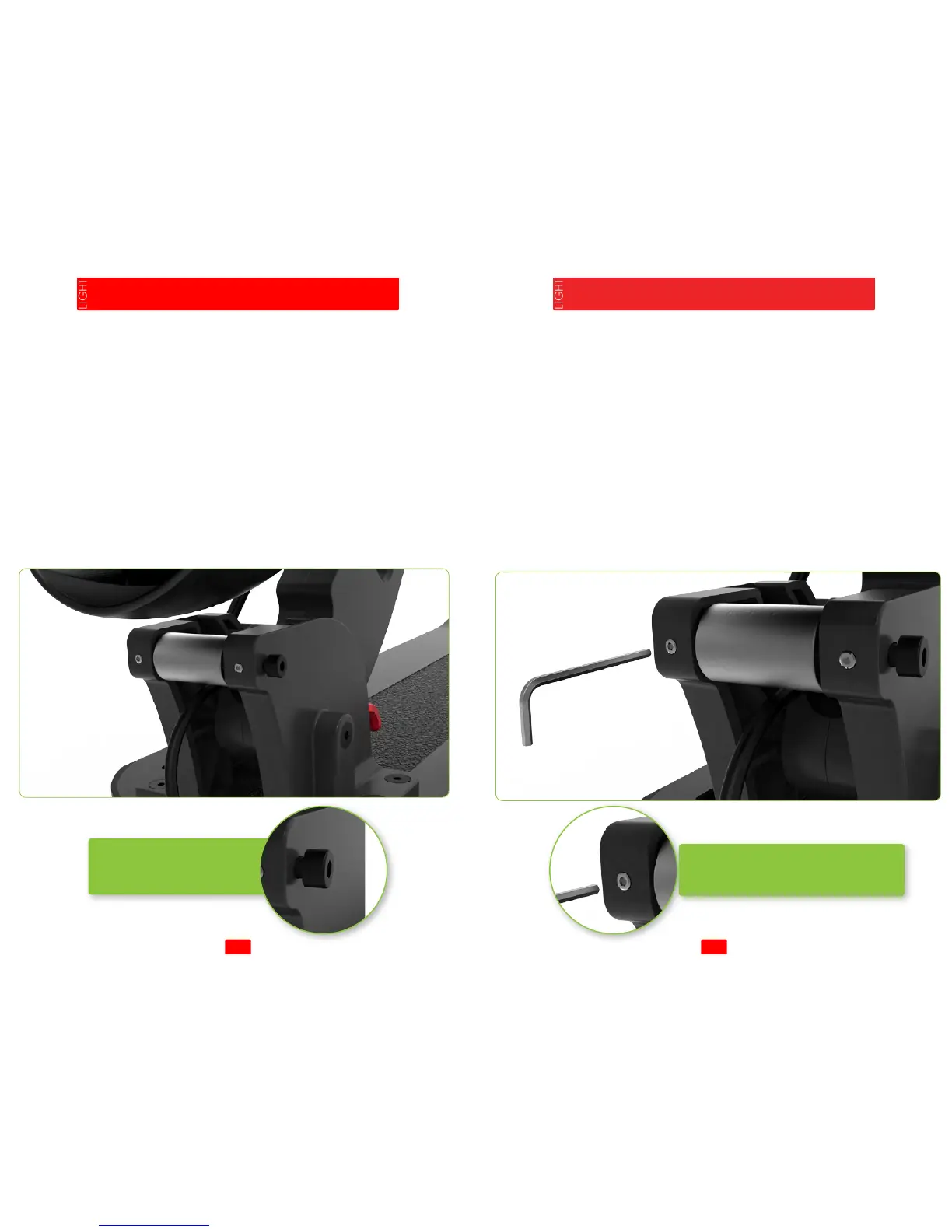

Figure 1
Use Allen key to release
outer screw on both sides.
Adjustment of folding mechanism
For more rigid feel:
Use Ellen Key number ___ to release tension on both sides of M4 screws as shown
on Figure 1
Then use Ellen Key number ___ and gently tight both screws as shown on Figure
2.
Test the function and only then, tight back both sides of M4 screws (gure 1)
For easier folding:
Use Ellen Key number ___ tor release tension on both sides of M4 screws as
shown on Figure 1
Then use Ellen Key number ___ and gently release tension on both screws as
shown on Figure 2. be aware that the distance is only a few millimeters. Be
careful that screw will not fall out of their place.
Test the function and only then, tight back both sides of M4 screws (gure 1)
INOKIM LIGHT MAINTENANCE INOKIM LIGHT MAINTENANCE
Figure 2
Slightly tight or release screws
in order to get a rigid or easy action
