Connecting headphones
The TV speakers are muted when headphones are
attached.

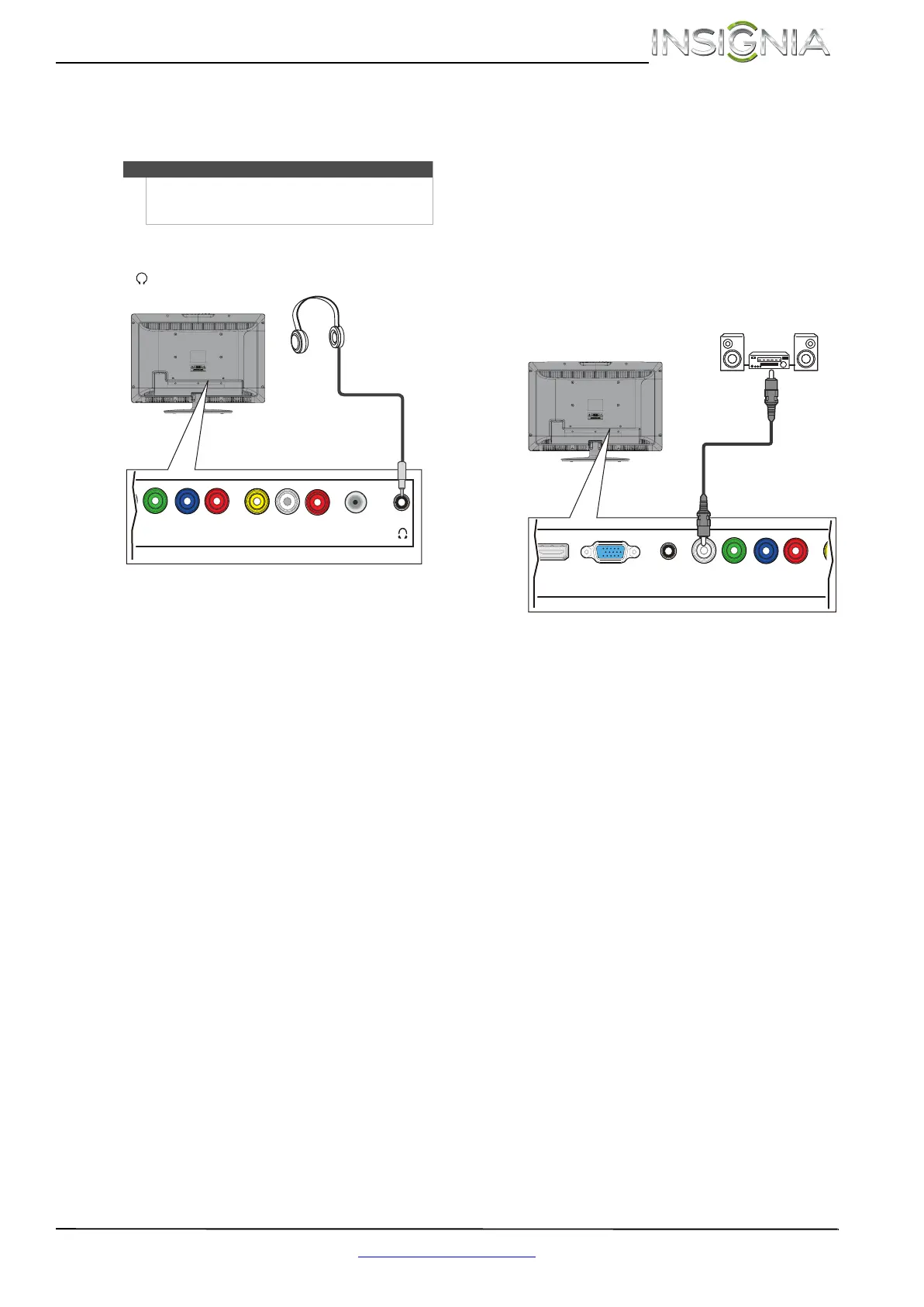

To connect headphones:
• Connect the headphones to the
(headphone) jack on the back of your TV.
Connecting a basic home theater system
Using digital audio
To connect a basic home theater system using
digital audio:
1 Make sure that your TV’s power cord is
unplugged and the home theater system is
turned off.
2 Connect a digital coaxial audio cable (not
provided) to the DIGITAL OUTPUT jack on the
back of your TV and to the coaxial AUDIO IN
jack on the digital home theater system.
Warning
Loud noise can damage your hearing. When using
headphones, use the lowest volume setting on your
headphones that still lets you hear the sound.
AL
UT
YP
B
P
R
VIDEO
COMPONENT IN AV IN
L - AUDIO - R
ANT / CABLE
Back of TV
HDMI 2 / DVI VGA
PC / DVI
AUDIO IN
DIGITAL
OUTPUT
YP
B
P
R
VI
COMPONENT IN
Digital coaxial audio cable
Home theater system
Back of TV
