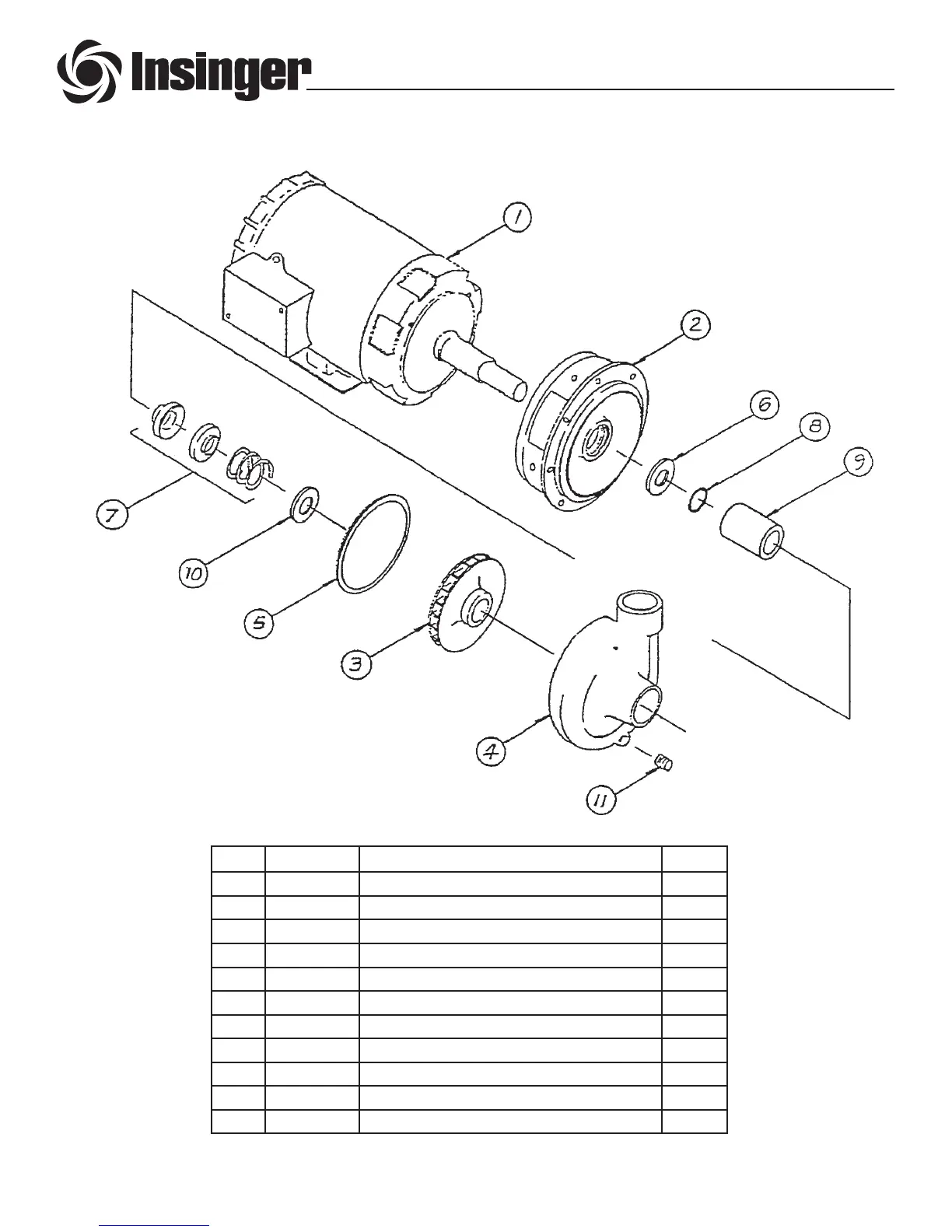

SK-2525 : 5 HP Pump Motor Assembly
ITEM PART NO. DESCRIPTION QTY
1 Motor 5 HP 1
2 D-439 Adapter 1
3 D-440 Impeller 1
4 D-441 Casing 1
5 D2-566 Gasket, Casing 1
6 D2-568 Flinger, Shaft 1
7 D-2494 Seal Assembly 1
8 D2-567 O-Ring, Shaft 1
9 D3-818 Sleeve, Shaft 1
10 D3-819 Retainer, Seal Spring 1
11 Drain Plug - 1/4 IPS 1
REV A - 07/21/82
