PART 6 PARTS & ASSEMBLIES
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802

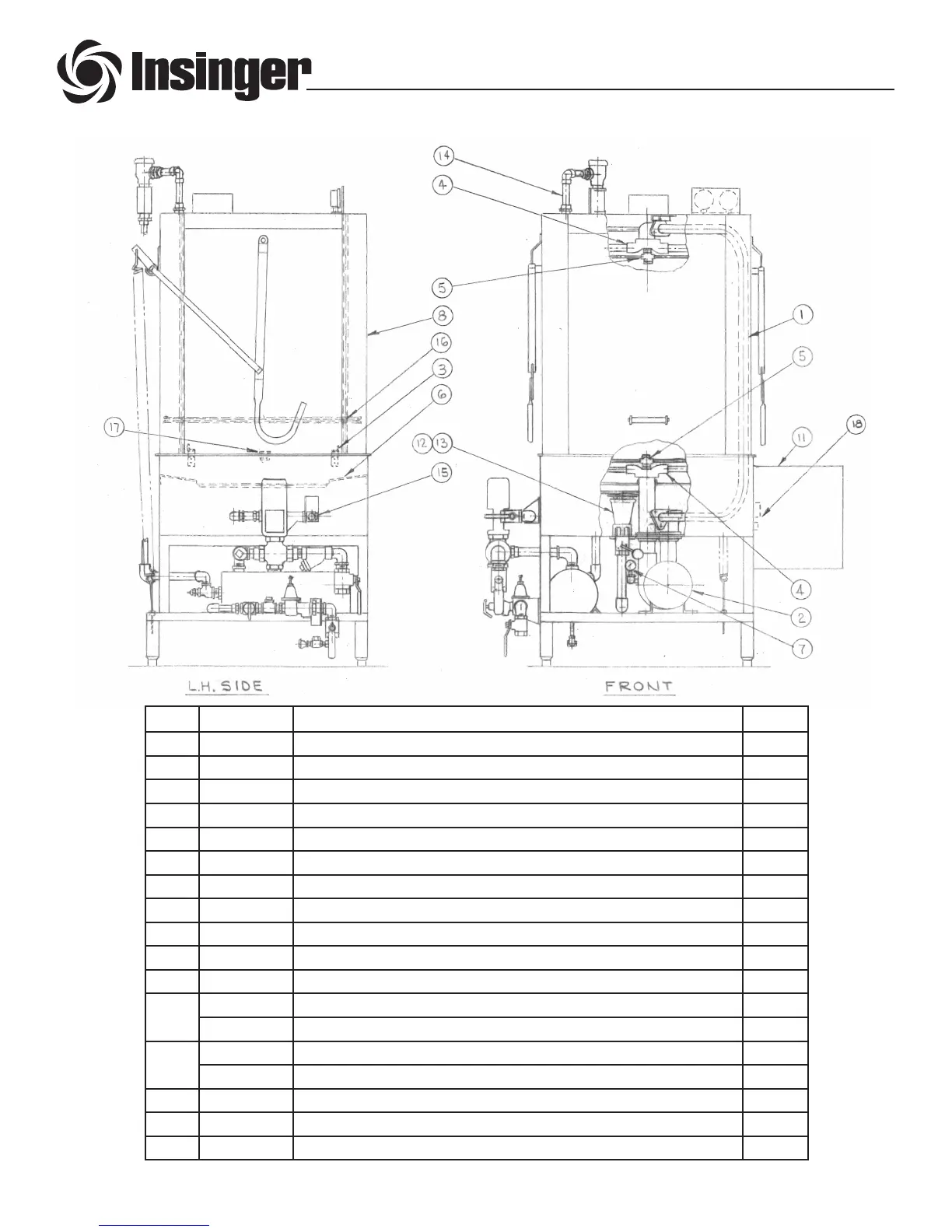

1172-1 : CA-3 Assembly
ITEM PART NO. DESCRIPTION QTY
1 1172-11 Discharge Line Assembly 1
2 1172-9 Pump & Motor Installation 1
3 979-37 Track & Track Bracket Location 1
4 1172-17 Spray Nozzle Assembly - Wash 2
5 1172-20 Spray Nozzle Assembly - Rinse 2
6 1172-3 Scrap Screen Arrangement 1
7 1172-42 Pressure Gauge Installation 1
8 1172-33 Shell Assembly 1
11 1173-10 Control Box Location 1
12 954-1 Drain Assembly 1
13 925-52 Drain Handle 1
14 1172-84 Final Rinse Piping w/ Steam Booster 1
1172-27 Final Rinse Piping w/ Electric Booster 1
15 1172-47 Steam Piping (Injector) 1
1172-49 Steam Coil - Solenoid Operated 1
16 562-137 Grid Installation Assembly 1
17 D2626 Proximity Switch Location 1
18 1172-51 Electric Heater, Liquid Level Float & Diode Junction Locations 1
