Insinger CA-3 - Control Panel Component Layout

48
®
PART 7 ELECTRICAL SCHEMATICS AND PARTS
CA-3 & DA-3 Technical Manual 2018 www.insingermachine.com 800-344-4802

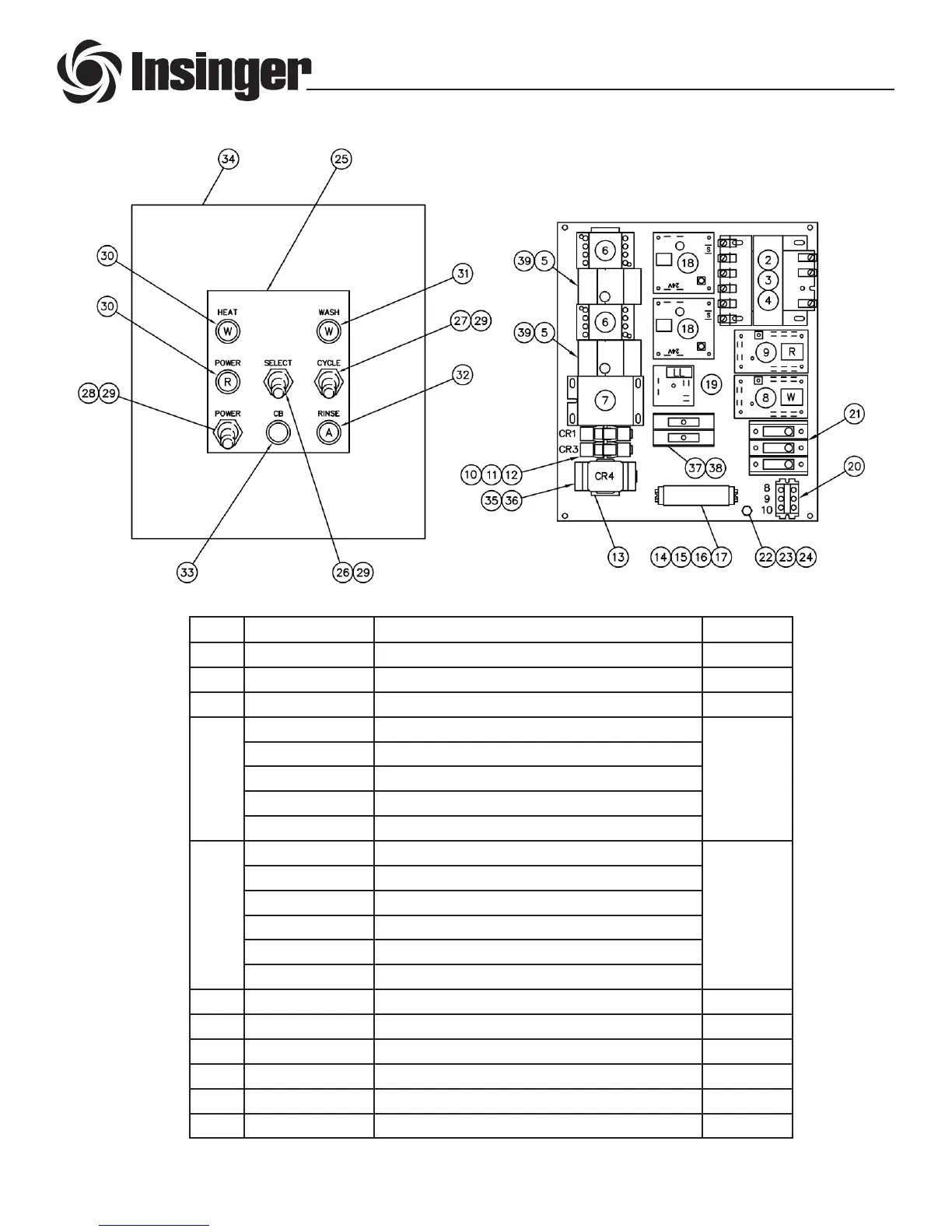

SK-3241 : Control Panel Layout
REV P - 03/12/18
ITEM PART NO. DESCRIPTION QTY
1 SK-3825 Component Mounting Plate 1
2 DE6-9 Transformer (150 VA, 24 VAC) 1
3 DE9-164 Fuse Block Kit (150 VA XFMR) 1
4
Fuse (150 VA Transformer Primary)
2
DE9-167 460V, FNQ-R-1
DE9-199 380V, FNQ-R-1.25
DE9-170 220V - 230V, FNQ-R-2
DE9-171 208V, FNQ-R-2.25
5
Overload Relay (Pumps)
AR
DE2-55 460/3/60, 5.5 - 8A
DE2-56 380/3/50, 7 - 10A
DE2-58 230/3/60, 12 - 18A
DE2-58 220/3/50, 12 - 18A
DE2-58 208/3/60, 12 - 18A
6 DE1-93 Contactor (Pumps) SP4 AR
7 DE1-109 Contactor (Electric Tank Heat) 30A Res 1
8 DE7-28 Time Delay Board (Wash) 1
9 DE7-27 Time Delay Board (Rinse) 1
10 DE2-37 Relay Base AR
11 DE2-38 Relay AR
