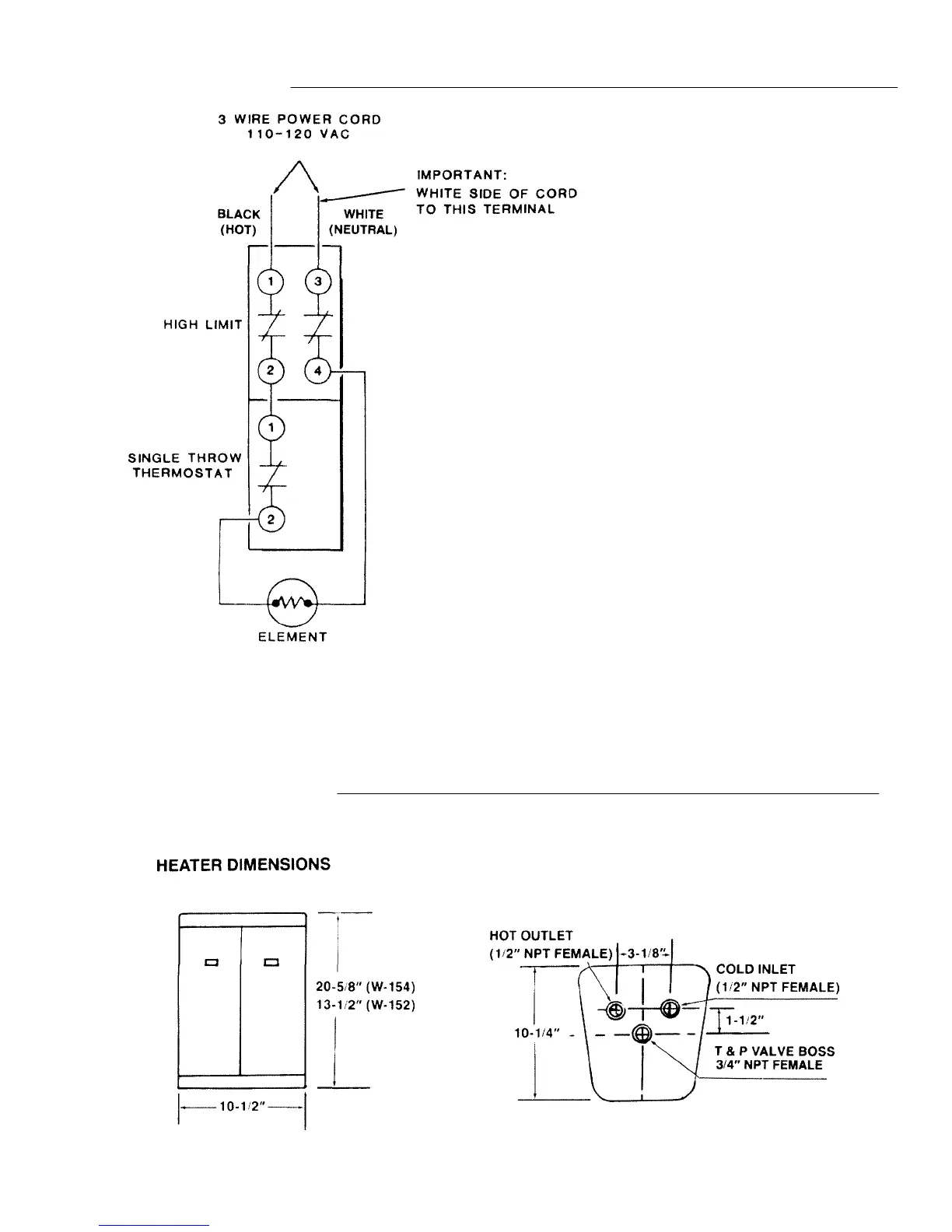

InSinkErator W-152 - TECHNICAL DIAGRAMS AND DIMENSIONS; Wiring Diagram and Electrical Notes; Heater Dimensions

7
wiring diagram
heater dimensions
IMPORTANT
THE CORD OF THIS HEATER MUST BE USED WITH A PROPERLY
GROUNDED OUTLET TO INSURE PROPER SAFETY AND
OPERATION, DO NOT USE A 3 PRONG TO A 2 PRONG ADAPTER.
WATER HEATER IS NOT TO BE HARD WIRED.
