INSYS CombiStar 7250 simplex - Assembly sequence; Attachment ring for CombiControl 7238 keypad; Positioning the keypad

Installation Instructions No. 9999-067-0
_________________________________________________________________________________________________
_____________________________________________________________________________________________
E7250E_01.doc Rel. 1 vom 11.07.2005 2
Assembly sequence

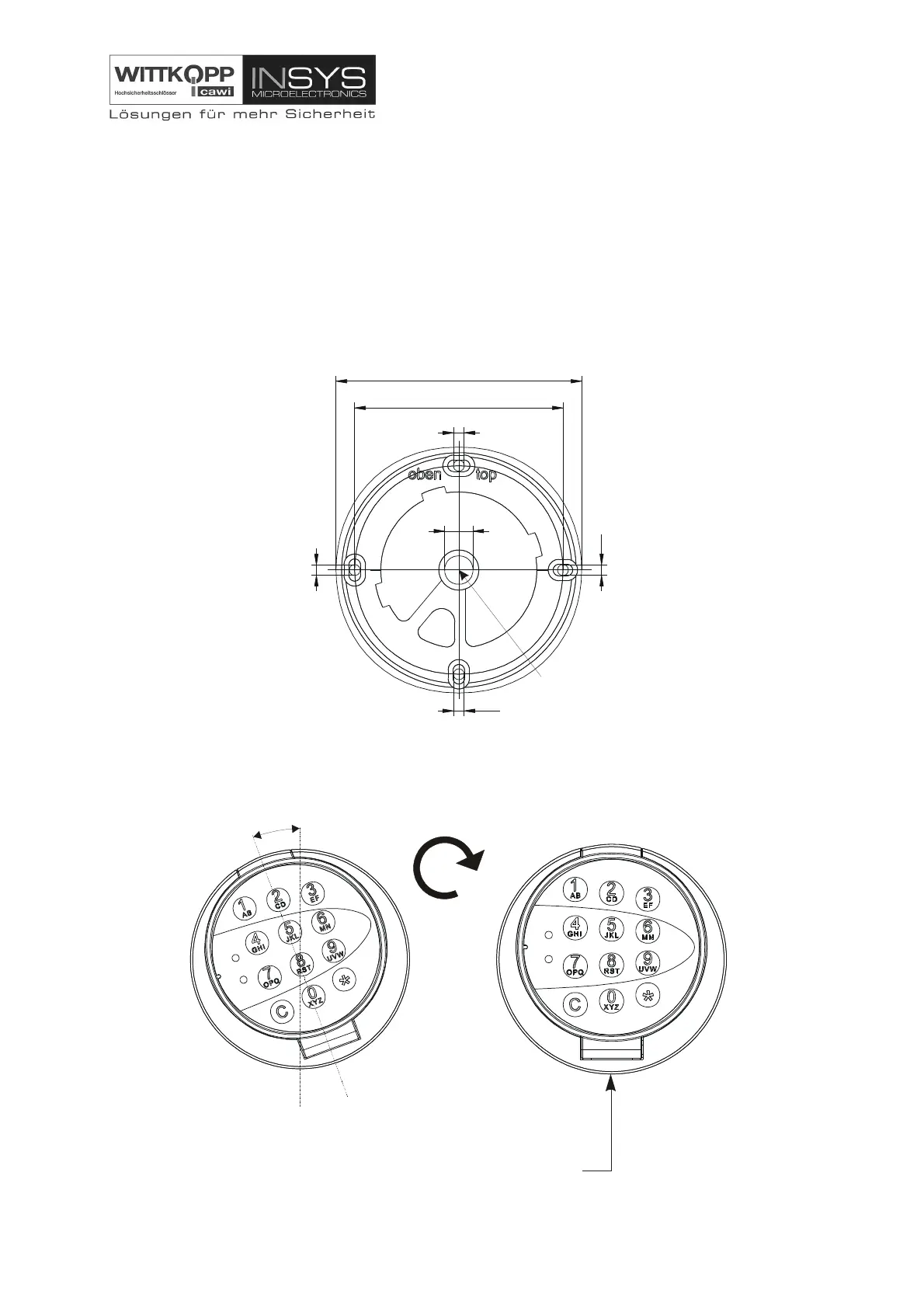

Mount the attachment ring for the CombiControl 7238 keypad as shown in the sketch. Four M4
threaded holes and one hole, max. 11.4, min. 10.5 mm in diameter, will have to be tapped in the door
of the safe. Then use four M4 x 10 machine screws to mount the attachment ring, ensuring that there
is no damage in the area where the ring is secured.
Ø78
M4
M
4
Ø11,4 mm hole diameter
M4
Keyboard center line
congruent with center line
of electronic lock
M4
Ø92
Attachment ring for
CombiControl 7238 keypad
Positioning the keypad
c
a
.
2
0
°
Position the keypad on the
attachment ring at an angle of
about 20° and then rotate the
keypad to the right to bring it into position
this
