Intec CVM Series - Upgraded System Connection Details; Display Connection Overview; Controller Connection Overview; Power Connection Information

2
Power Connection Table – CVS100
Color Function
Red Power (+11 to +32 VDC)
Black Ground
Blue Reverse Trigger (+11 to +32 VDC)
Green
Source Alarm Out (Functional Only
with Optional Radar Component)
DISPLAY VIDEO OUT/IN CAMERA POWER

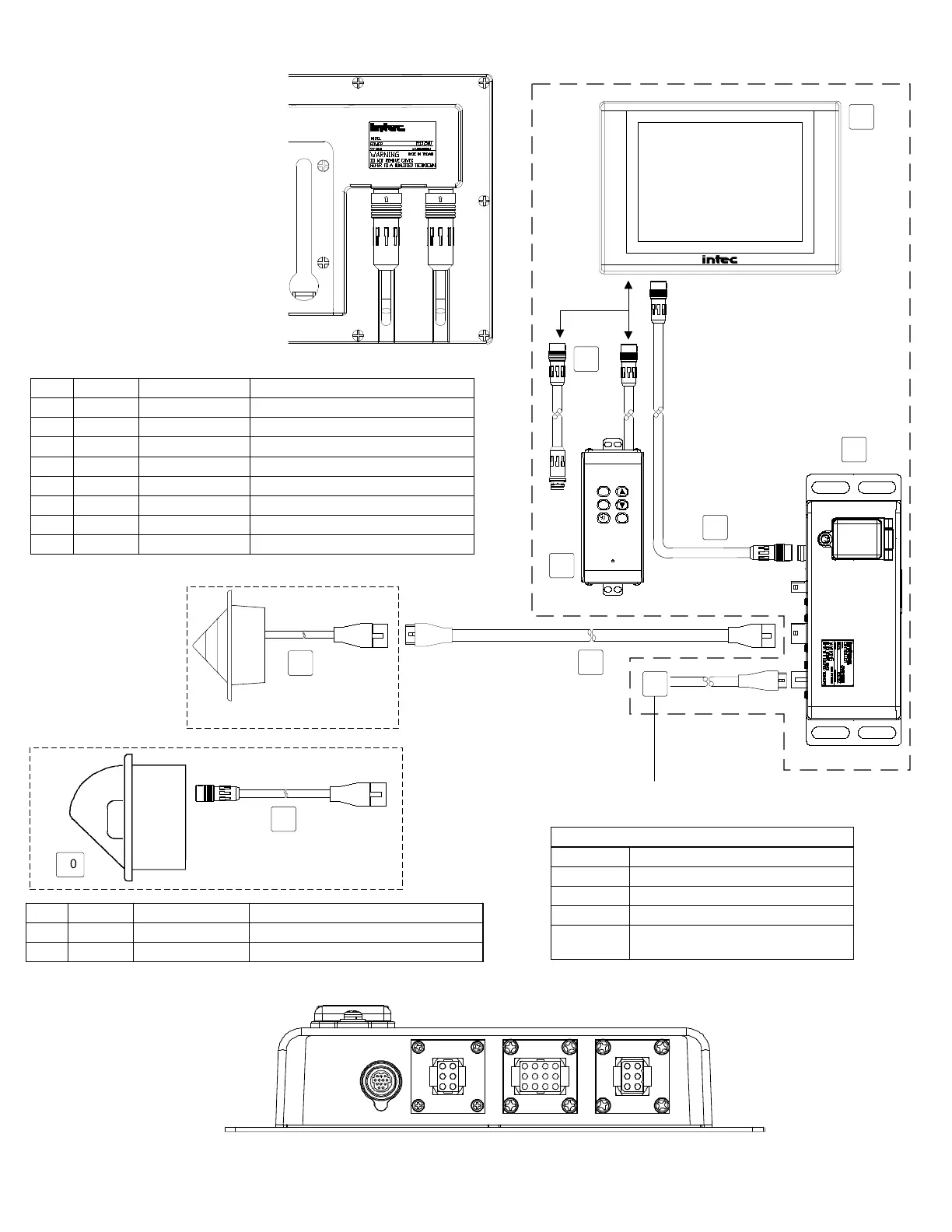

Controller Connection Detail
Upgraded System
1
2
3
4
5
6
7
8
DISPLAY
CVD640LCD
Controller Remote
Display Connection Detail
See The Power Connection Table
Below For Wire Connection Details
10
For CVC400 Series Option
For CVC500AH Series Option
Item Quantity Part Number Description
9 1 313-02-02-002 Adapter – Cable to CVC500AH
10 1 CVC500AH(FM) H Series (Flush Mount) Camera
Item Quantity Part Number Description
1 1 CVDxxxLCD Car Vision Display
2 1 CVDR5MA Optional Remote Extension Cable
3 1 CVR100 Remote Control
4 1 CVDC6MA Six Meter Display to Controller Cable
5 1 CVS100M Controller – Molex Version
6 1 CVS100MP3M Power Harness for Molex Controller
7 1 CVU18M Existing Coach Cable
8 1 CVC400(FM) M Series (Flush Mount) Camera
9
