Controls and Indicators
- 6 -
3. VOL/OFF (On-OFF/Volume) Control
This knob switches the radio ON and OFF and it adjusts the volume control to the desired level.
4. SQ (Squelch) Control
The SQL control allows to silent the receiver by cutting the background noise, when no signals
are received. Turn the knob clockwise until the background noise is cut. Turn the knob counter
clockwise (SQUELCH opening) in order to listen to the weakest signals.
5. LCD Display
Large size LCD display with orange color backlight function for best readability in darkness. The
4-line LCD indicates simultaneously all the programmed settings and all the enabled functions.
Digital 10-bar Signal Meter and 4-bar battery level indicator.

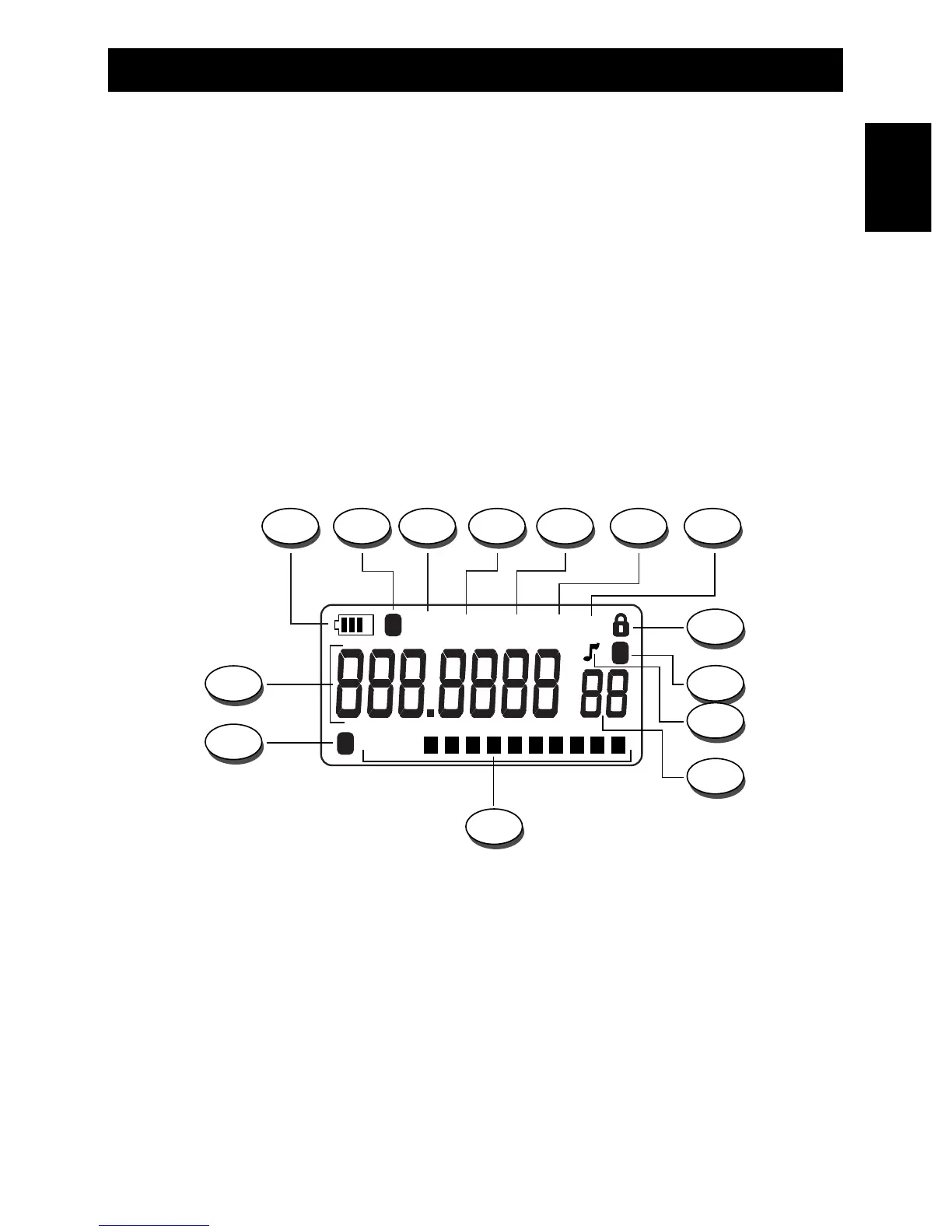

LCD Display
A. Battery Level Indicator
It shows the current battery level condition and the charging process.
B. F Icon (Function Mode)
The F Icon (B) is lighted when the F key (13) is pressed.
C. AIR Icon
The AIR Icon (C) is lighted when the AIR band is selected.
D. NFM Icon
The NFM Icon (D) is lighted when the VHF NFM band is selected.
