Installing and Replacing Desktop Board Components
35
Setting the BIOS Configuration Jumper
NOTE
Always turn off the power and unplug the power cord from the computer before
changing a jumper. Moving the jumper with the power on may result in unreliable
computer operation.
Figure 12 shows the location of the Desktop Board’s BIOS configuratio
n jumper block.

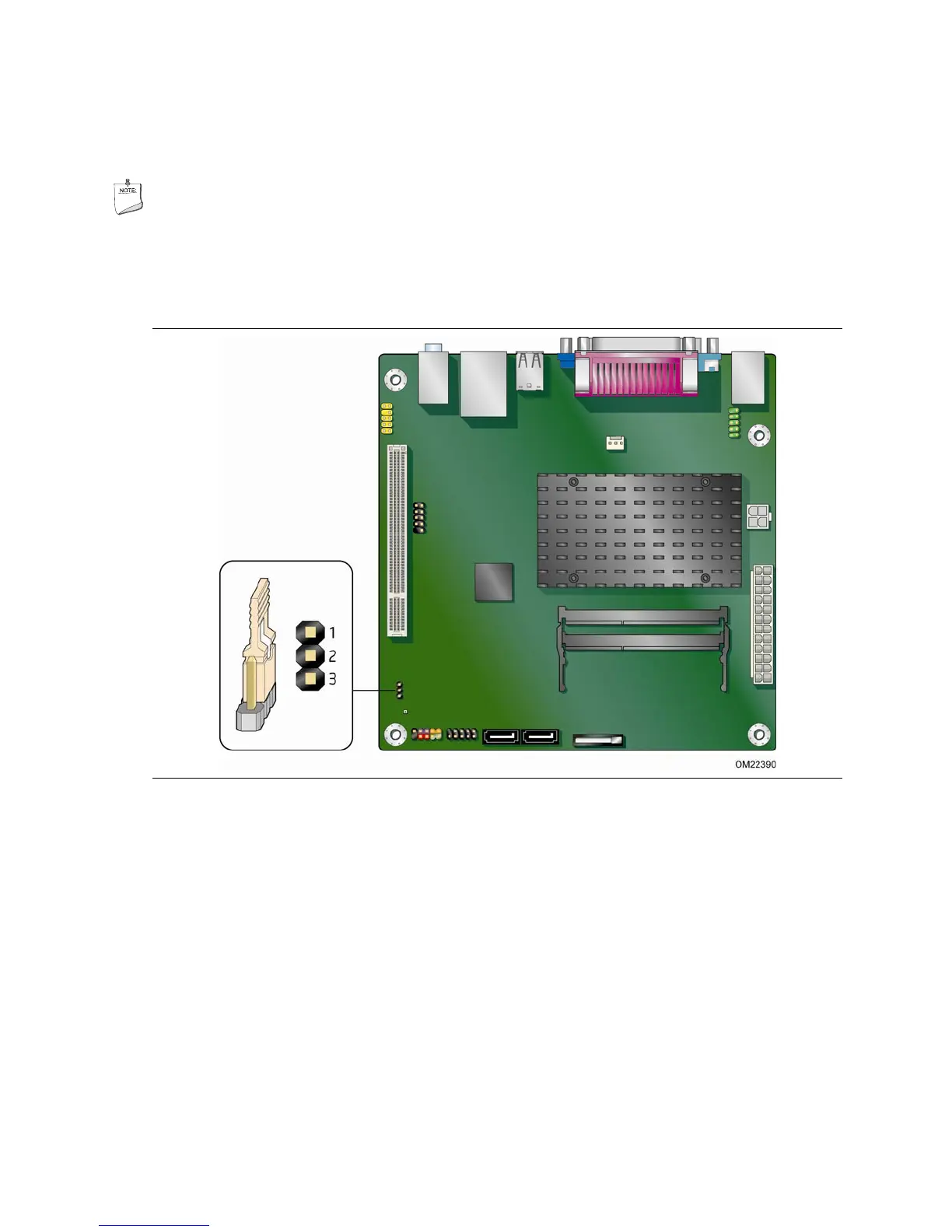

Figure 12. BIOS Configuration Jumper Block
The three-pin BIOS configuration jumper block enables board operating modes.
Table 10 shows the jumper settings for each of the available modes.
