Intel Desktop Board D510MO Product Guide
32
Installing a Wireless LAN Card in the PCI
Express Full-Mini Card Slot
A wireless LAN card can be installed in the Desktop Board’s PCI Express Full-Mini Card
slot.
To install a wireless LAN card on the Desktop Board, see Figure 10 and follow these
steps:
1. Observe the precautions in "Before You Begin" on page 23.
2. Locate the
PCI Express Full-Mini Card slot.
3. Insert the wireless LAN card into the PCI Express Mini Card connector (Figure 10,
A) at
a slightly upward angle.
4. Align the mounting holes (Figure 10, B) and snap the card in place.
5. Attach yo
ur system’s
antenna wires to the connectors (Figure 10, C) on the
wireless LAN card as
shown.
NOTE
External antennas can be connected through the I/O shield by removing any or all of
the cut-outs above the back panel I/O section.

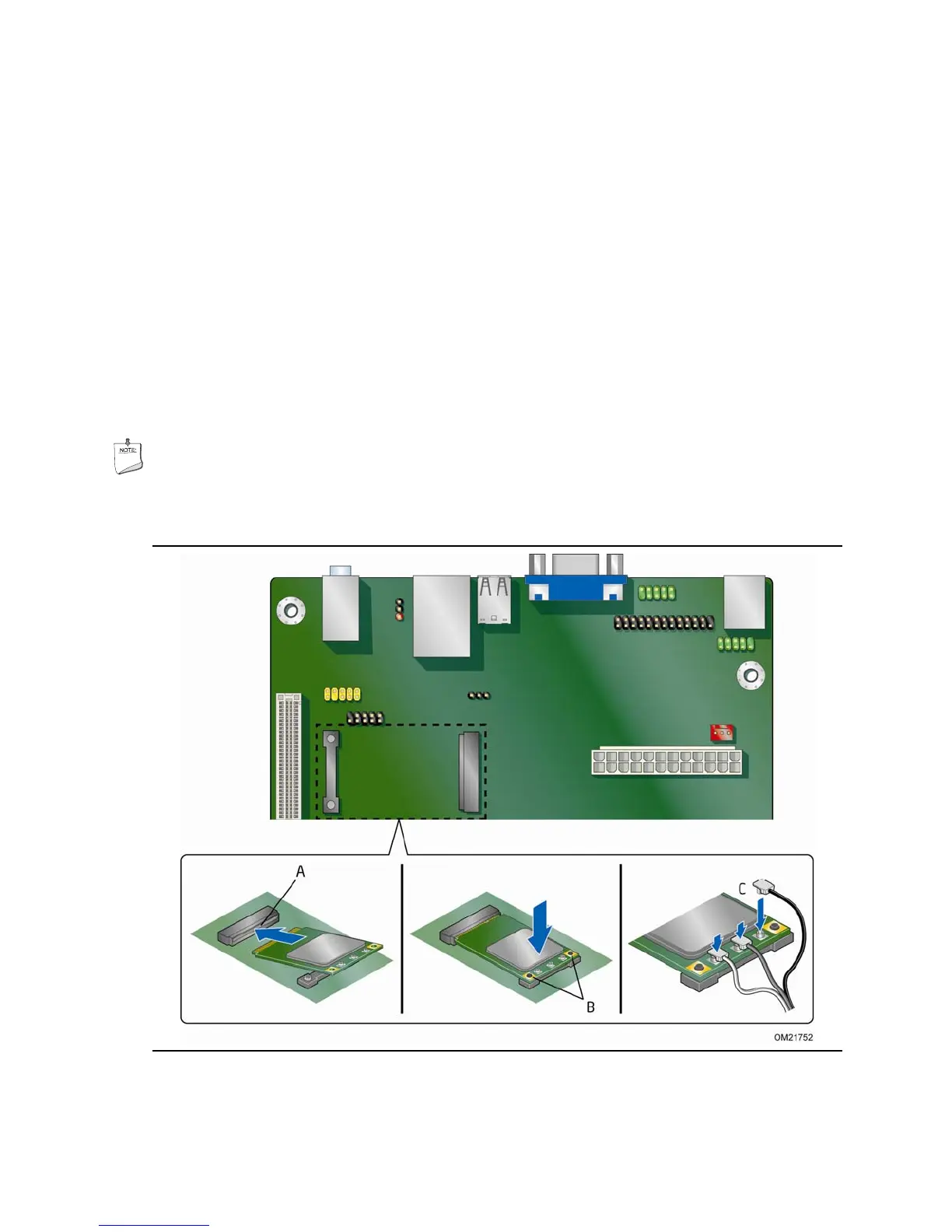

Figure 10. Installing a Wireless LAN Card
