Intel Desktop Board DG35EC Product Guide
44
Connecting to the Internal Headers and
Connectors
Before connecting cables to the internal headers and connectors, observe the
precautions in “Before You Begin” on page 25. Figure 23 shows the location of the
internal headers and
connectors.
Item Description Item Description
A S/PDIF E
Front panel
B Front panel audio F
Alternate front panel power LED
C IEEE 1394a G
USB 2.0
D Serial port
H Chassis intrusion

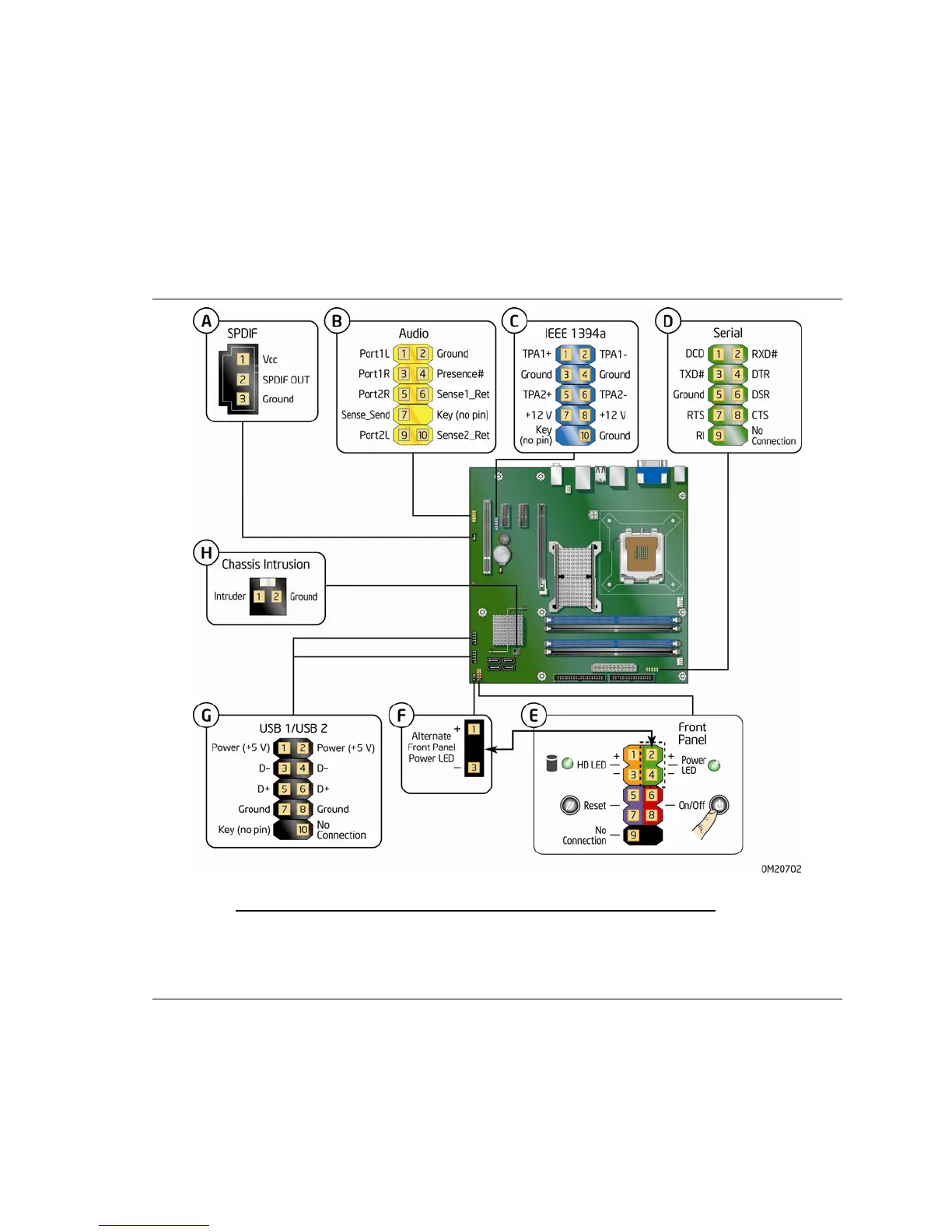

Figure 23. Internal Headers
