Intel Desktop Board DH61DL Product Guide
46
S/PDIF Header
Figure 19, H shows the location of the S/PDIF output header. Table 12 shows the pin
assignments and signal names for the S/PDIF output header.
Table 12. S/PDIF Header Signal Names
Pin Description
1 Ground
2 S/PDIF Out
3 Key (no pin)
4 +5 VDC
Connecting to the Audio System
After installing the Realtek audio driver from the Intel
®
Express Installer DVD-ROM,

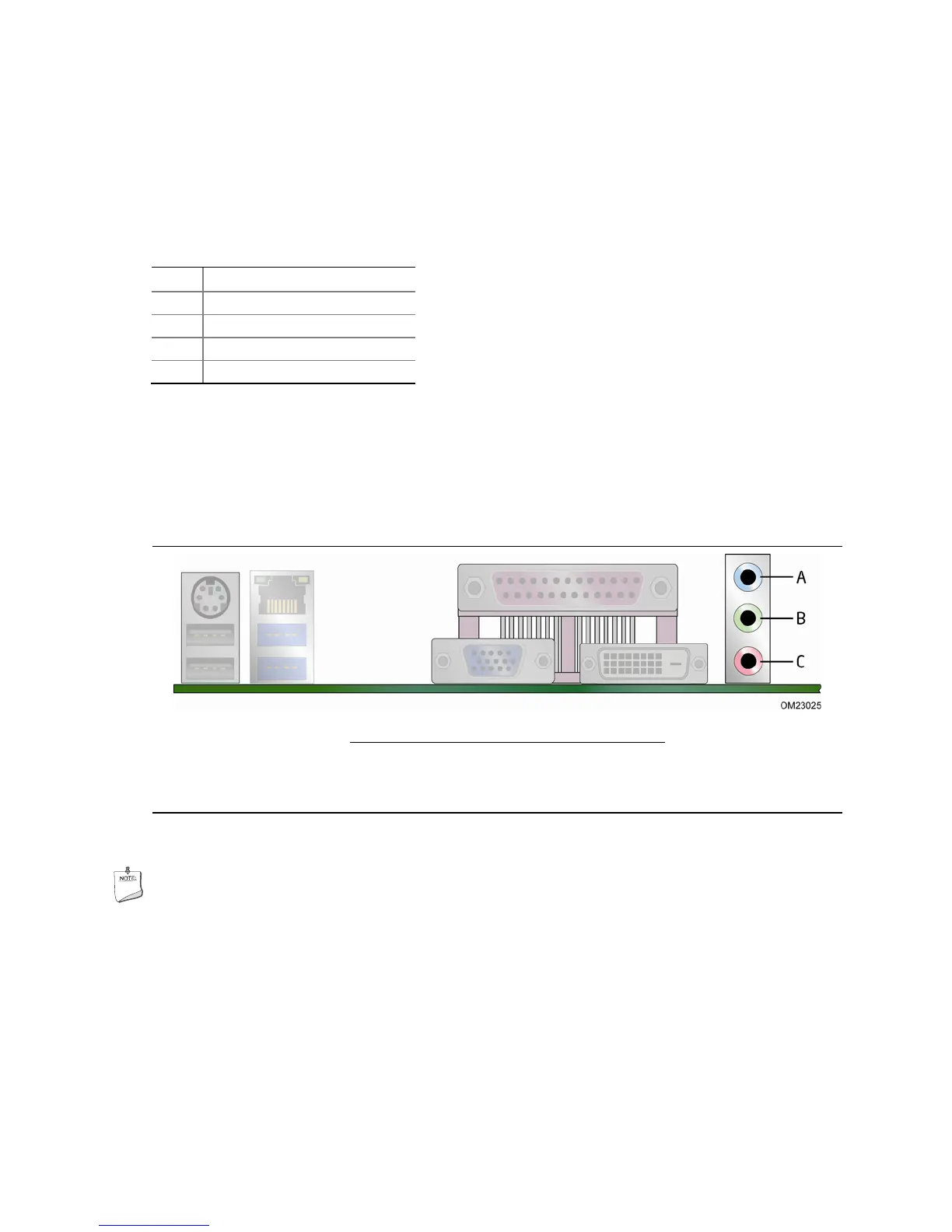

the multi-channel audio feature can be enabled. Figure 20 shows the back panel audio
connectors
. The default connector assignments are shown in the table.
Item Description
A Line in
B Line out (front speaker/headphones)
C Mic in
Figure 20. Back Panel Audio Connectors
NOTE
The back panel line out connector is designed to power either headphones or amplified
speakers only. Poor audio quality may occur if passive (non-amplified) speakers are
connected to this output.
