Intel DH61DL - Tables; Intel Desktop Board DH61 DL Components

Desktop Board Features
13

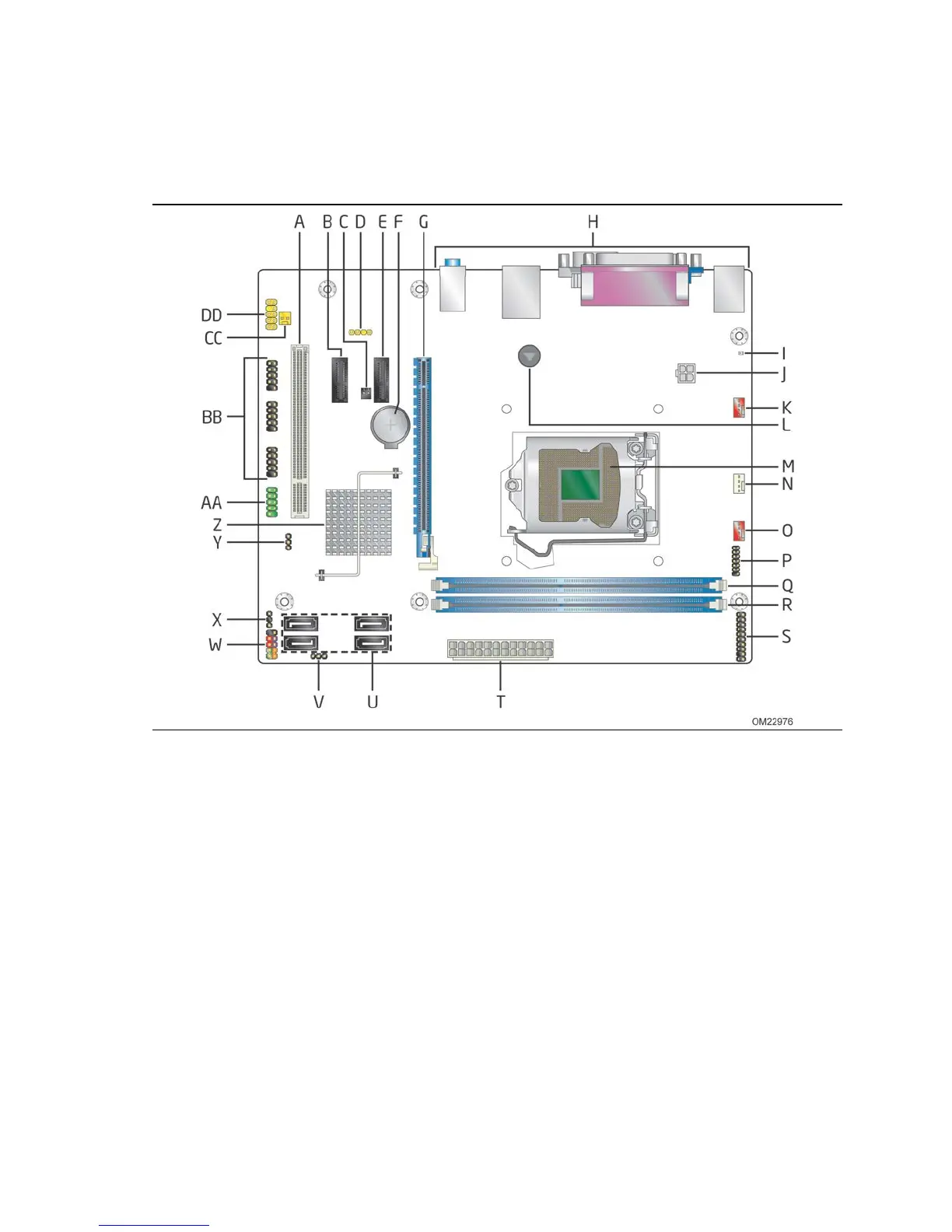

Table 2. Intel Desktop Board DH61DL Components
Label Description
A Back panel connectors
B Battery
C BIOS configuration jumper block
D SATA connectors
E Intel
®
Management Engine BIOS Extension (Intel
®
MEBX) reset header
F Front panel USB 2.0 header
G Front panel USB 2.0 header
H Front panel USB 2.0 header
I Main power connector (2 x 12 pin)
J PCI Express Mini Card Slot
K Speaker
L Standby power indicator LED
M DDR3 DIMM 2 socket
N DDR3 DIMM 1 socket
O Serial port header
P Front panel header
Q Chassis intrusion header
R Alternate front panel power LED header
S Processor fan header
T Processor socket
U 12 V processor core voltage connector (2 x 2 pin)
V PCI Express 2.0 x1 add-in card connector
W System fan header
X S/PDIF header
Y Front panel audio header
Z Internal mono speaker header
