Intel Desktop Board DH61ZE Product Guide
42
Connecting Serial ATA (SATA) Cables
SATA cables support the Serial ATA protocol. Each cable can be used to connect one
internal SATA drive to the Desktop Board. For correct cable function:
1. Observe the precautions in “Before You Begin” on page 27.
2. Attach one end
of the SATA cable to one of the SATA connectors on the board
(Figure 18, A) and attach the other end of the
cable to the
SATA drive
(Figure 18, B).

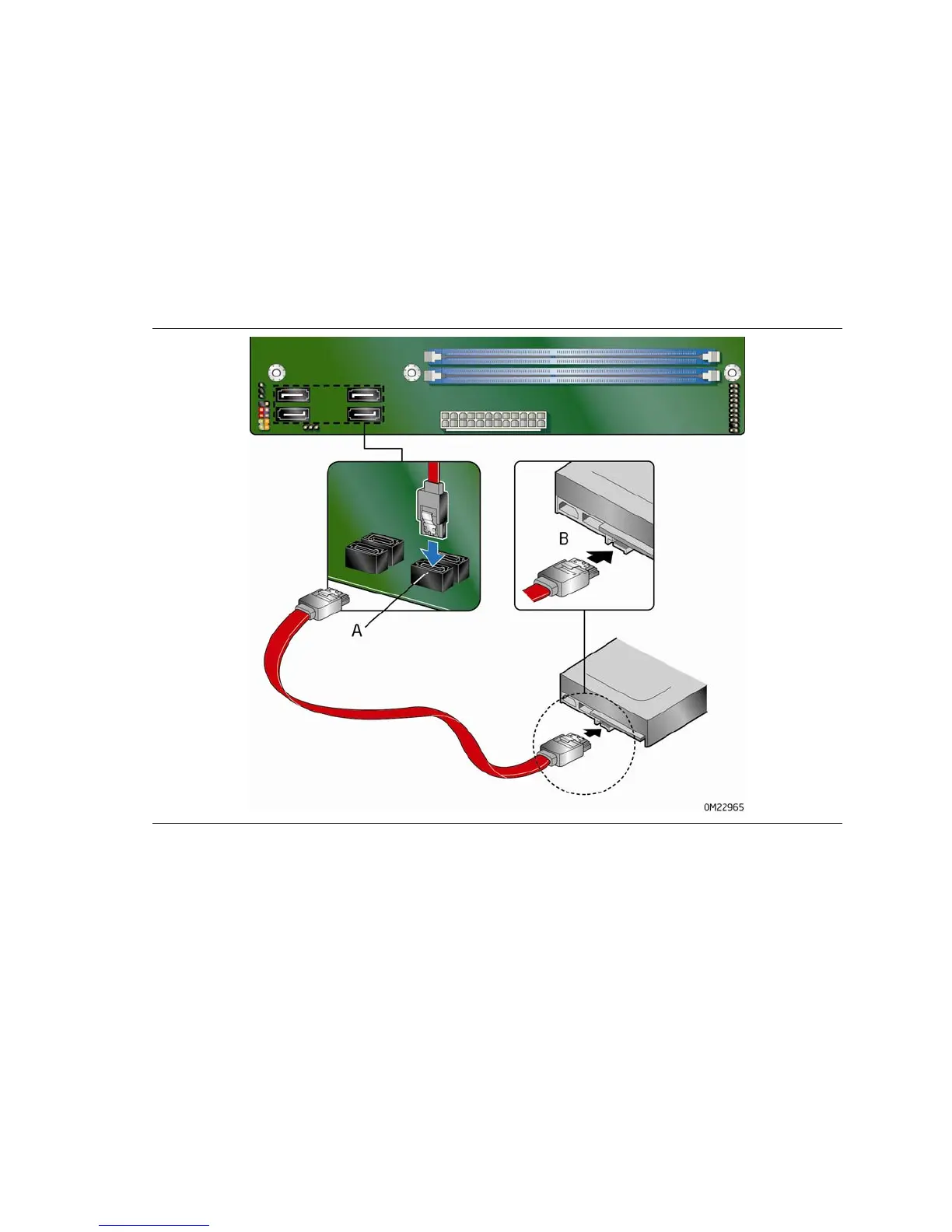

Figure 18. Connecting a Serial ATA Cable
