Intel E39545-004 Spares Parts List & Configuration Guide

2
7

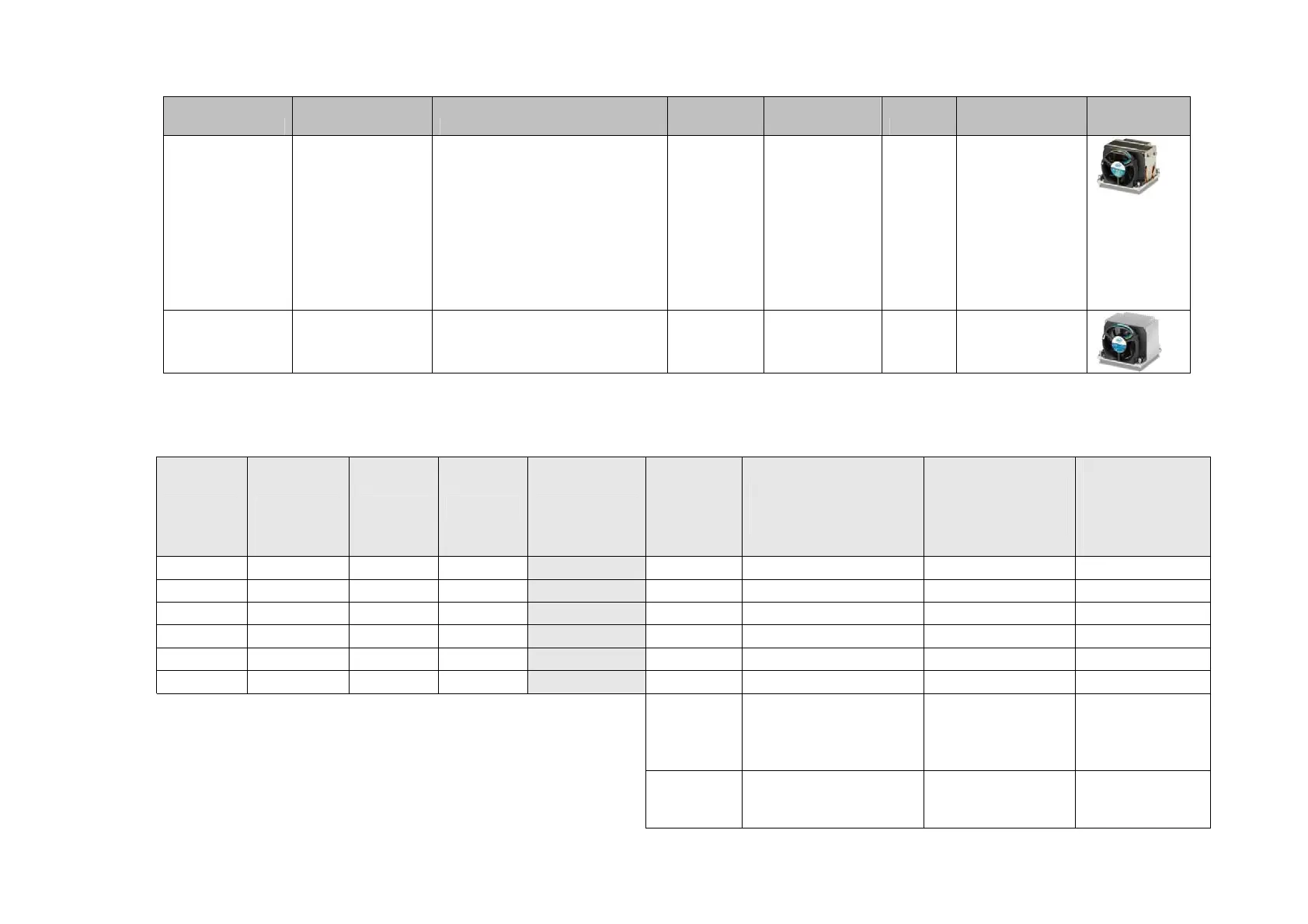

Production Intel Thermal Solution STS100 Series
Product name Description Recommended usage
Maximum
CPU TDP
Boxed
Product Code MM# UPC Code
Intel
®
Thermal
Solution
STS100C
Passive/Active
Combination Heat
Sink with
Removable Fan
With fan installed:
- Pedestal chassis that provide
adequate ventilation and correct
temperature air to heat sink
With fan removed:
- Pedestal chassis with ducted
airflow to heat sink
- 2U or larger rack chassis* with
ducted airflow to heat sink
130W BXSTS100C 900491 7 35858 20515 3
Intel
®
Thermal
Solution
STS100A
Active Heat Sink
with Fixed Fan
Pedestal chassis that provide
adequate ventilation and correct
temperature air to heat sink
80W BXSTS100A 900490 7 35858 20513 9
Heat Sink Configuration Guide
S5520HC S5500HCV S5520SC S5500BC Chassis SKU
Heat Sink
Includes
Intel
®
Thermal Solution
STS100C (w/ fan, Active
mode)
Intel
®
Thermal
Solution STS100A
(Active)
FXXRGTHSINK
Or
FXXRGTHS
(Passive Tower
Heat Sink)
Support Support Support N/A
SC5600Base
No Support Support N/A
Support Support N/A N/A
SC5600BRP
No Support Support N/A
Support Support N/A N/A
SC5600LX
No N/A N/A Required
Support Support N/A Support
SC5650DP
No Support Support N/A
Support Support N/A Support
SC5650BRP
No Support Support N/A
N/A N/A Support N/A
SC5650WS
No Support Support N/A
Maximum
CPU TDP
130W (supported in
SC5650WS Chassis
only);
95W
80W 95W
Boxed
Product
Code
BXSTS100C BXSTS100A FXXRGTHSINK
FXXRGTHS
