Intel NUC 11 Extreme Kit NUC11BTMi9

14
NUC11BTMi7, NUC11BTMi9
User Guide – August 2021

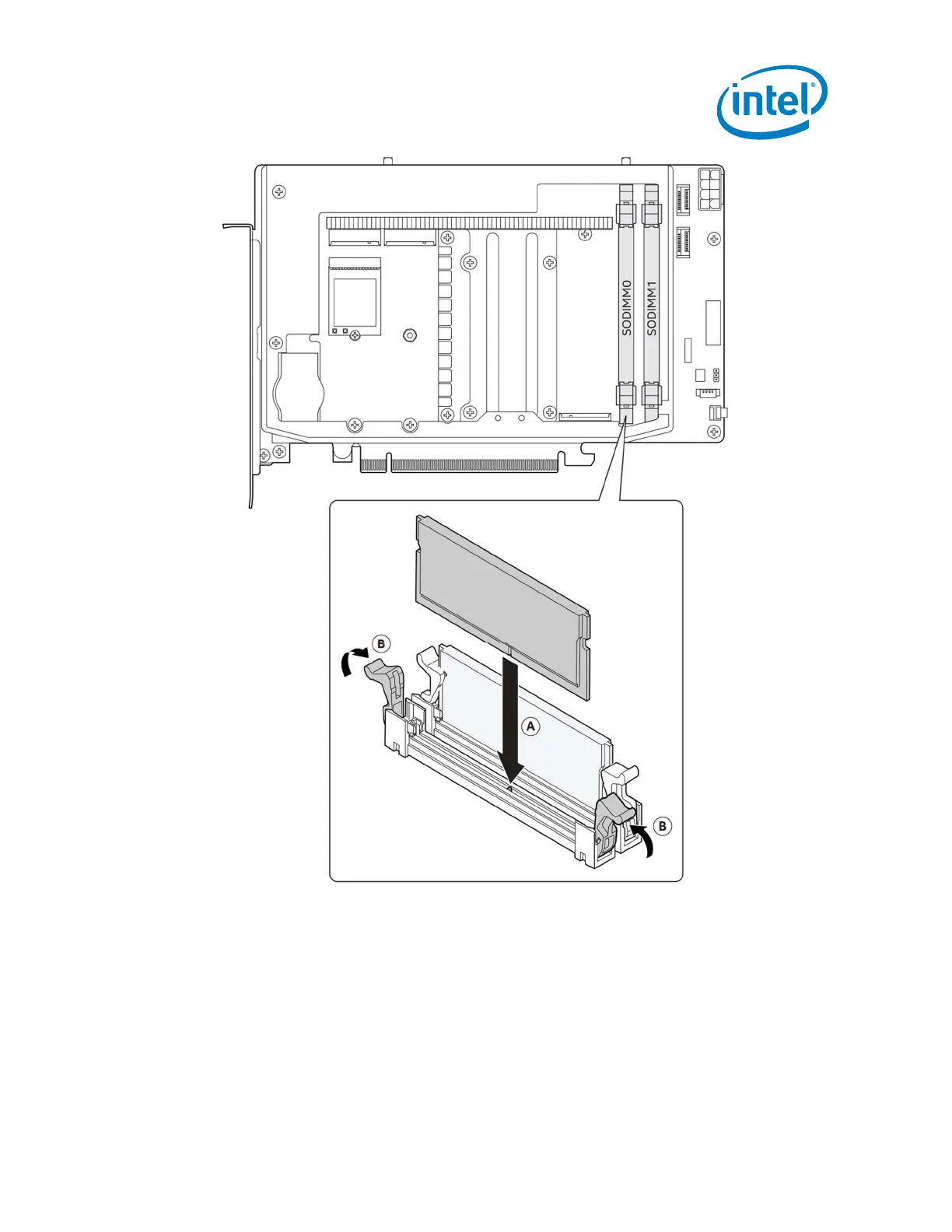

3. Align the small space at the bottom edge of the memory module with the
key in the socket.
4. Insert the bottom edge of the module at a 45-degree angle into the socket (A).
5. When the module is inserted, push down on the outer edge of module
until the retaining clips snap into place (B).
