User Guide for NUC7CJYSAMN
5
5. Replace the computer’s cover and reconnect the power cord.
Install a 2.5” SSD or Hard Drive
Observe the precautions in "Before You Begin" on page 2.
Find compatible 2.5” hard drives in the Intel Product Compatibility Tool.
NUC7CJYSAMN
Follow these instructions to install a 2.5” Solid State Drive (SSD) or Hard Disk Drive (HDD):

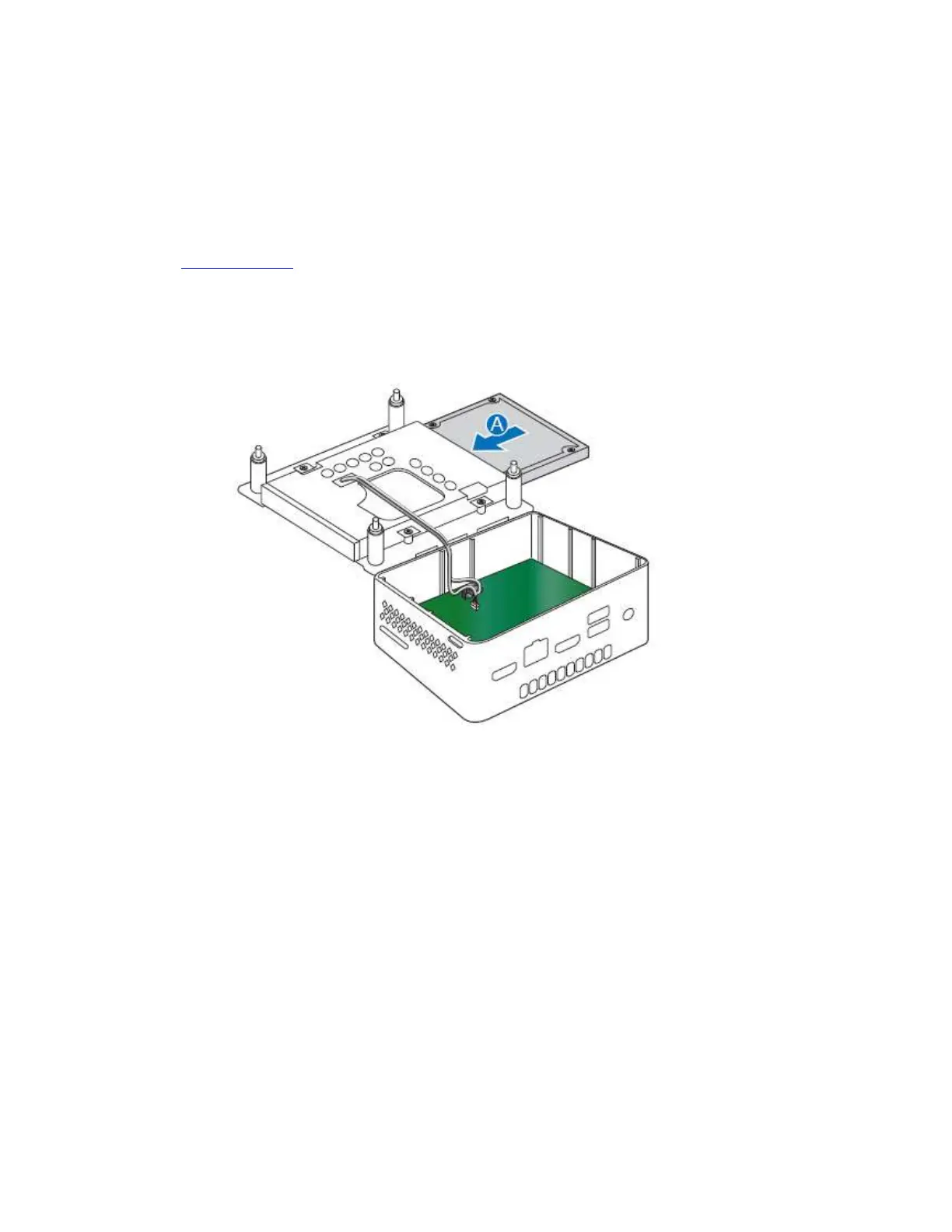

1. Slide the 2.5” drive into the drive bay, ensuring the SATA connectors are fully seated into the
connectors of the SATA daughter card (A).
2. Secure the drive into the drive bay with the two small silver screws that were included in the box
(B).
3. Set the drive bay bracket down inside the chassis.
