Intel NUC Kit DC3217IYE User Manual

Intel NUC Kit DC3217IYE User Guide
3
This guide tells you how to:
• Install and remove memory
• Install a wireless card
• Install an mSATA SSD
• Install a VESA mount bracket
• Install an operating system
• Install the latest drivers

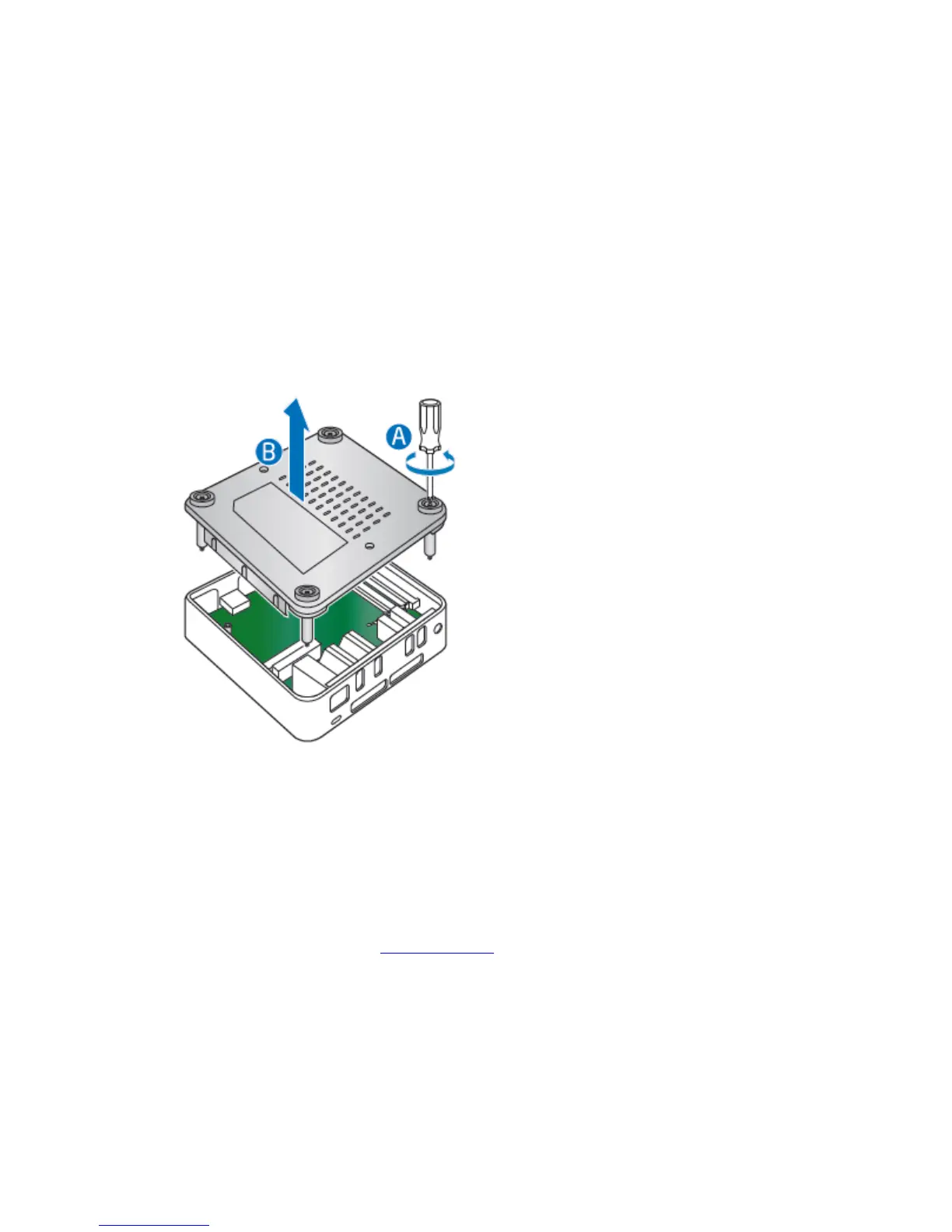

Open the Intel NUC Chassis
To open the Intel NUC chassis, follow these steps:
1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.
Installing and Removing Memory
Intel NUC Kit DC3217IYE has two 204-pin SO-DIMM sockets. Memory requirements:
 1.5V DDR3 or 1.35V DDR3L (low voltage) memory
 1333 MHz or 1600 MHz SO-DIMMs
 Non-ECC
For a list of tested memory, go to the System Memory page on the Support site:
Install SO-DIMMs
If you plan to install just one SO-DIMM, install it in the lower memory socket.
To install the SO-DIMMs, follow these steps:
1. Observe the precautions in "Before You Begin" on page 2.

Intel NUC Kit DC3217IYE Specifications

General

Processor	Intel Core i3-3217U
Processor Cores	2
Processor Threads	4
Processor Base Frequency	1.8 GHz
Processor Cache	3 MB
Graphics	Intel HD Graphics 4000
Graphics Base Frequency	350 MHz
Graphics Max Dynamic Frequency	1.05 GHz
Memory Slots	2
Maximum Memory	16 GB
Storage	mSATA SSD
Storage Interface	mSATA
HDMI Ports	1
Memory Type	DDR3
Ethernet	Gigabit Ethernet
Wireless	Optional via PCIe mini card slot
Audio	HDMI Audio
Cooling System	Active
Power Supply	65W external power adapter
Operating System Support	Windows, Linux
USB Ports	3 x USB 2.0
Bluetooth	Optional via Half-Length Mini-PCIe slot
Dimensions	4.6 x 4.4 x 1.5 inches
