Intel NUC Kit DC3217IYE User Manual

Intel NUC Kit DC3217IYE User Guide
5
The operation of any other wireless adapter with Intel® NUC Kit DC3217IYE, other than those listed above,
may violate regulatory compliance requirements for your region.
For more information on wireless adapters, go to: http://www.intel.com/support/wireless/wlan.
CAUTION
When installing a Mini-PCIe wireless adapter on the Intel NUC, ensure that the adapter is fully seated in
the connector before you power on the system. If the adapter is not fully seated in the connector, an
electrical short may result across the connector pins. Depending on the over-current protection of the
power supply, certain Intel NUC components and/or traces may be damaged.

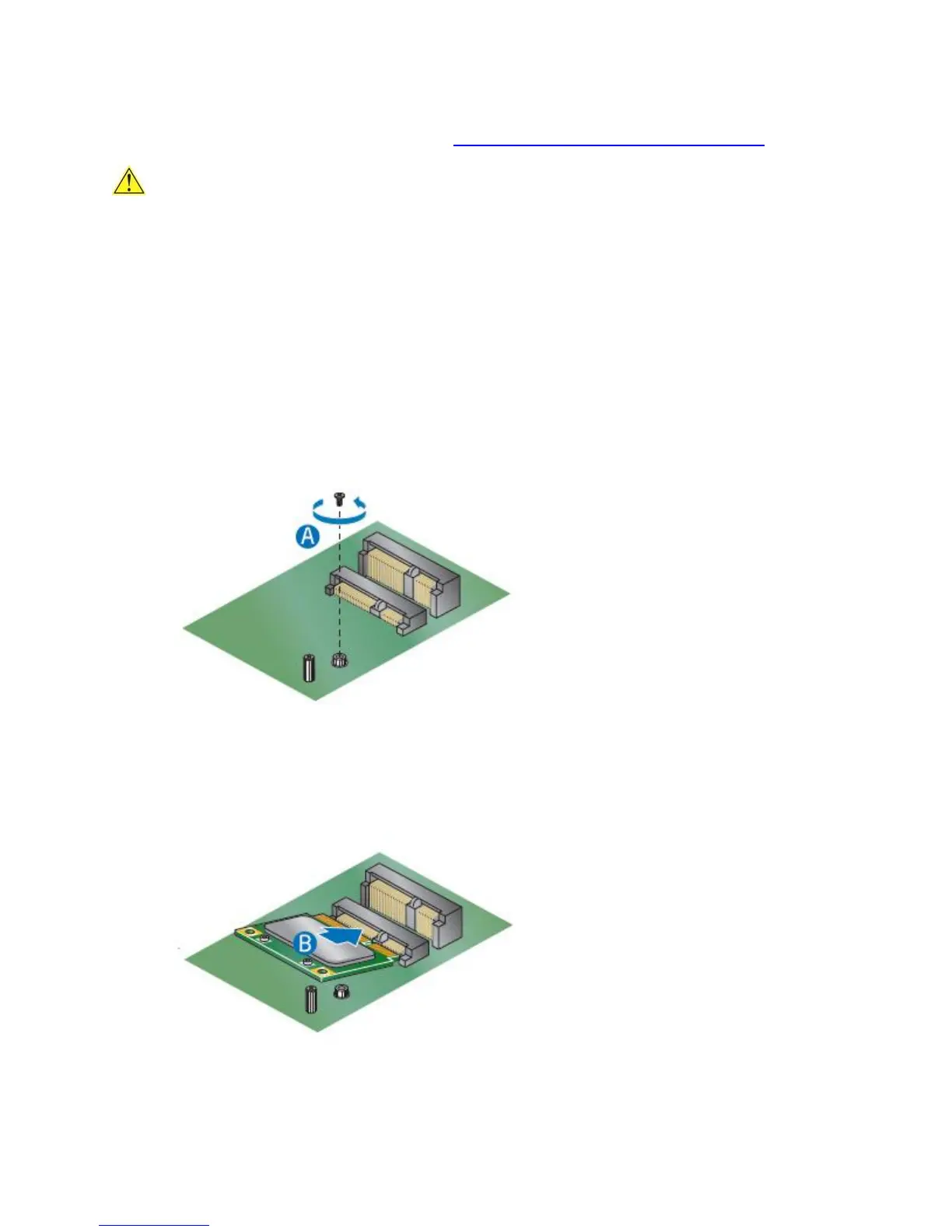

Install a Mini-PCIe Wireless Adapter
Follow these instructions to install a Mini-PCIe wireless adapter:
1. Observe the precautions in "Before You Begin" on page 2.
2. Remove the small silver screw from the metal standoff on the motherboard (A).
3. Align the small notch at the bottom edge of the wireless card with the key in the connector.
4. Insert the bottom edge of the wireless card into the connector (B).

Intel NUC Kit DC3217IYE Specifications

General

Processor	Intel Core i3-3217U
Processor Cores	2
Processor Threads	4
Processor Base Frequency	1.8 GHz
Processor Cache	3 MB
Graphics	Intel HD Graphics 4000
Graphics Base Frequency	350 MHz
Graphics Max Dynamic Frequency	1.05 GHz
Memory Slots	2
Maximum Memory	16 GB
Storage	mSATA SSD
Storage Interface	mSATA
HDMI Ports	1
Memory Type	DDR3
Ethernet	Gigabit Ethernet
Wireless	Optional via PCIe mini card slot
Audio	HDMI Audio
Cooling System	Active
Power Supply	65W external power adapter
Operating System Support	Windows, Linux
USB Ports	3 x USB 2.0
Bluetooth	Optional via Half-Length Mini-PCIe slot
Dimensions	4.6 x 4.4 x 1.5 inches
