Intel NUC Kit DC3217IYE User Manual

Intel NUC Kit DC3217IYE User Guide
7
Install an mSATA SSD
For a list of tested mSATA drives, go to the Tested Peripherals page on the Support site.
Follow these instructions to install an mSATA SSD:
1. Observe the precautions in "Before You Begin" on page 2.

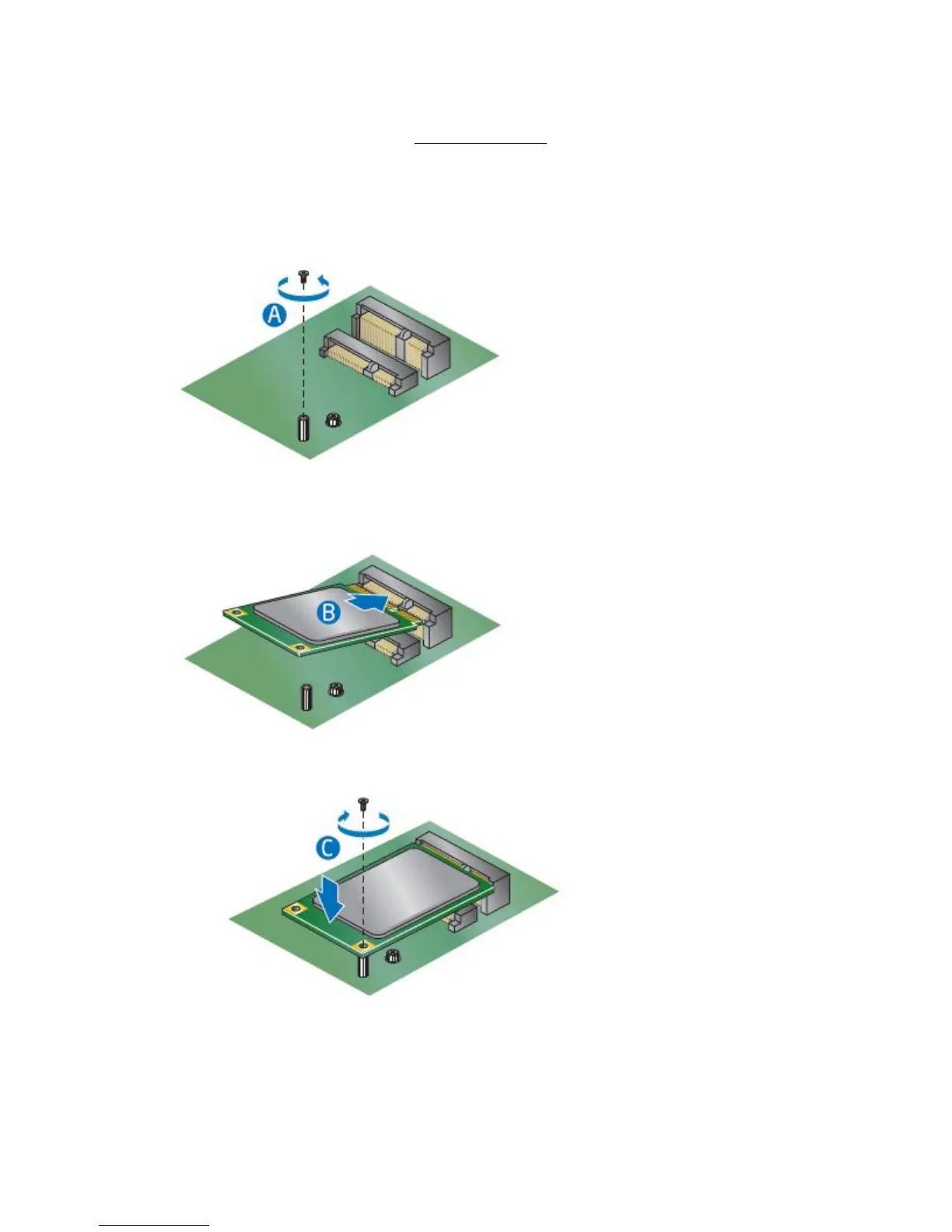

2. Remove the small silver screw from the metal standoff on the motherboard (A).
3. Align the small notch at the bottom edge of the mSATA card with the key in the connector.
4. Insert the bottom edge of the mSATA card into the connector (B).
5. Secure the card to the standoff with the small silver screw (C).

Intel NUC Kit DC3217IYE Specifications

General

Processor	Intel Core i3-3217U
Processor Cores	2
Processor Threads	4
Processor Base Frequency	1.8 GHz
Processor Cache	3 MB
Graphics	Intel HD Graphics 4000
Graphics Base Frequency	350 MHz
Graphics Max Dynamic Frequency	1.05 GHz
Memory Slots	2
Maximum Memory	16 GB
Storage	mSATA SSD
Storage Interface	mSATA
HDMI Ports	1
Memory Type	DDR3
Ethernet	Gigabit Ethernet
Wireless	Optional via PCIe mini card slot
Audio	HDMI Audio
Cooling System	Active
Power Supply	65W external power adapter
Operating System Support	Windows, Linux
USB Ports	3 x USB 2.0
Bluetooth	Optional via Half-Length Mini-PCIe slot
Dimensions	4.6 x 4.4 x 1.5 inches
