NUC9VXQNX, NUC9V7QNX, NUC9i9QNX, NUC9i7QNX, NUC9i5QNX
User Guide – May 2020
4. Align the small space at the bottom edge of the memory module with the
key in the socket.

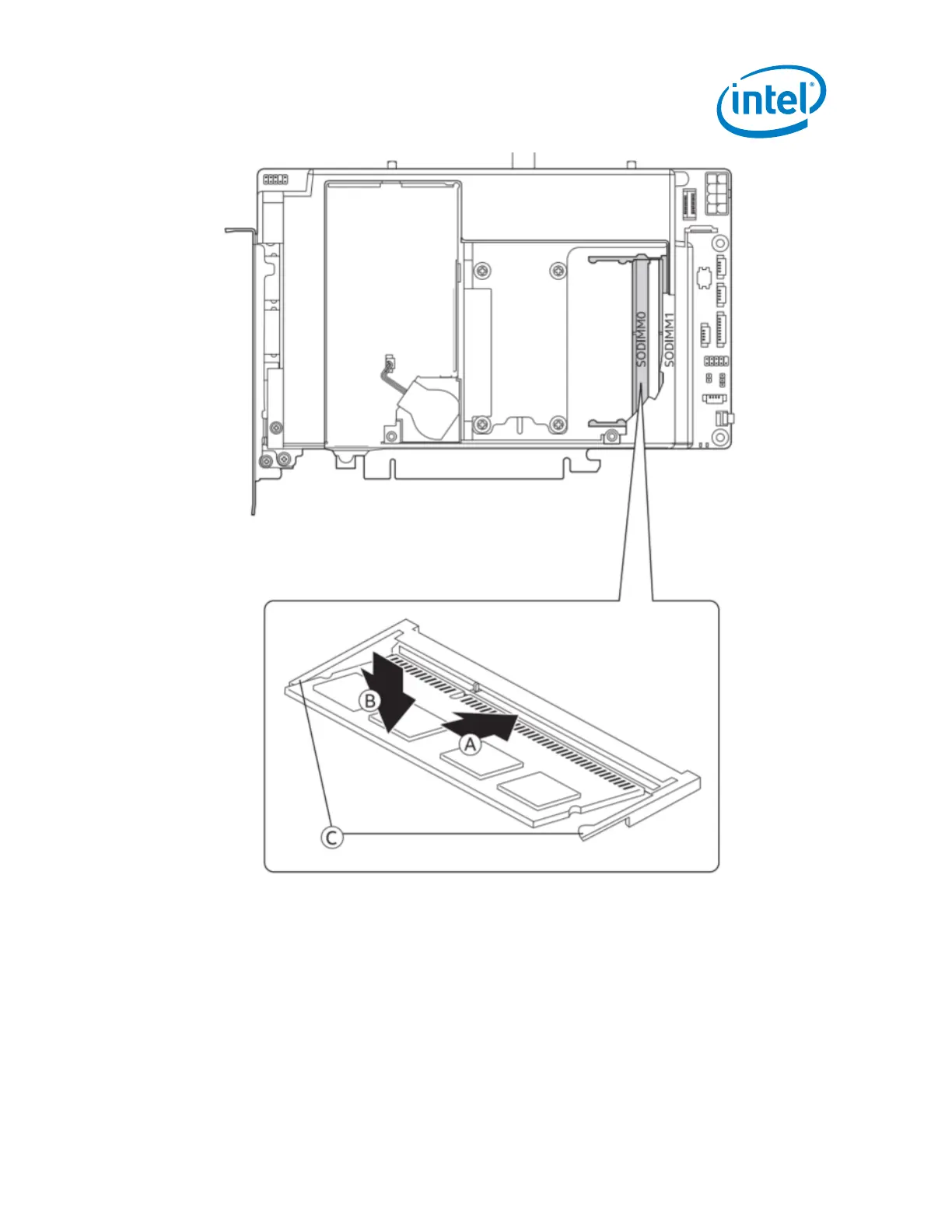

5. Insert the bottom edge of the module at a 45-degree angle into the socket (A).
6. When the module is inserted, push down on the outer edge of module
until the retaining clips snap into place (B). Make sure the clips are
firmly in place (C).
