Intel NUC Kit NUC5i3RYK & NUC5i5RYK User Guide
5

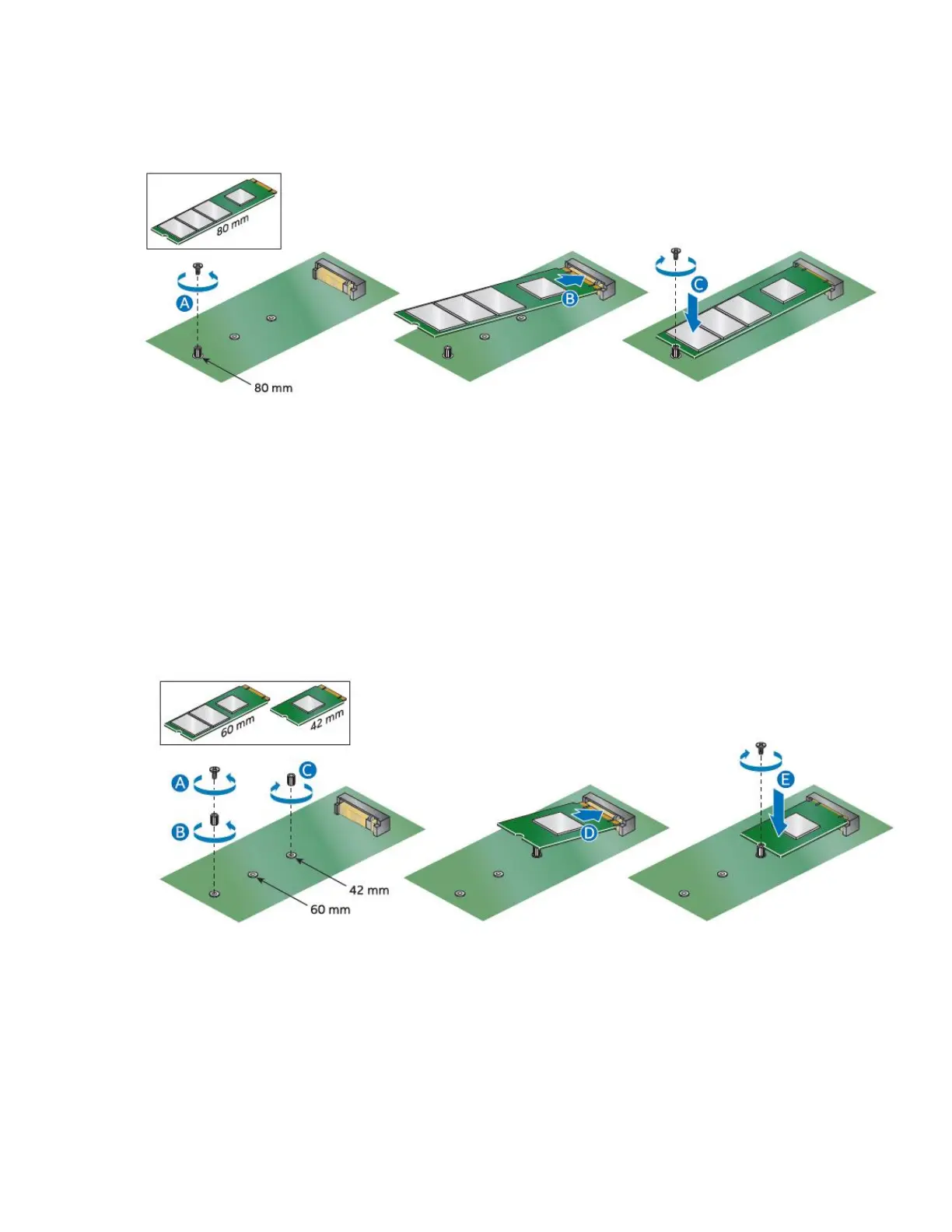

3. Insert the bottom edge of the M.2 card into the connector (B).
4. Secure the card to the standoff with the small silver screw (C).
If you are installing a 60mm or 42mm M.2 SSD:
1. Remove the small silver screw from the metal standoff on the motherboard (A).
2. Move the standoff (B) from the 80mm position to either the 60mm or 42mm position (C).
3. Align the small notch at the bottom edge of the M.2 card with the key in the connector.
4. Insert the bottom edge of the M.2 card into the connector (D).
5. Secure the card to the standoff with the small silver screw (E).

Intel NUC5i3RYK Specifications

General

Brand	Intel
Model	NUC5i3RYK
Category	Desktop
Language	English
