Intel NUC8i5BEH User Manual

User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH
3
This guide tells you how to:
• Install and remove memory
• Install an M.2 SSD
• Install a 2.5” drive
• Install a VESA mount bracket
• Connect power
• Install an operating system
• Install the latest device drivers and software

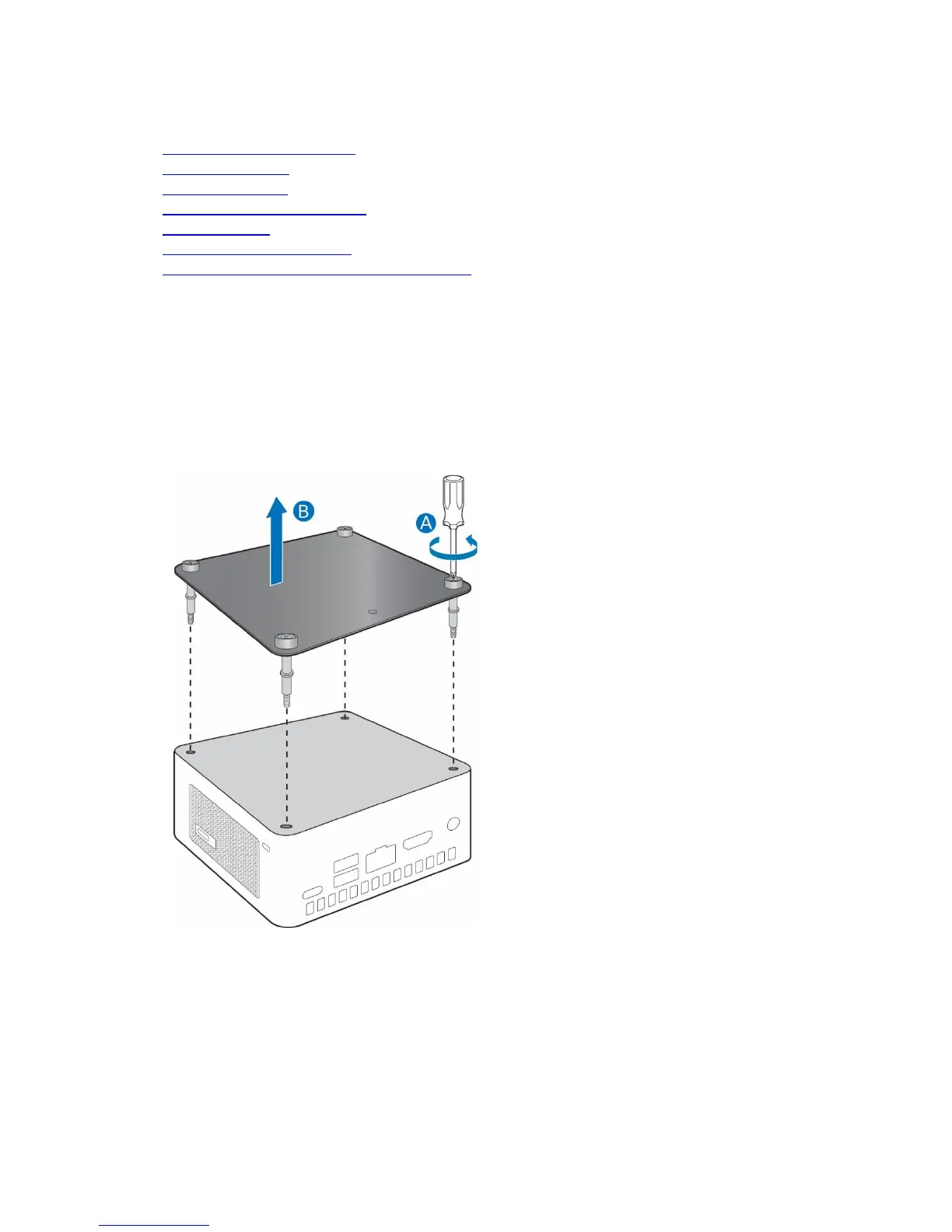

Open the Chassis
To open the Intel NUC chassis, follow these steps:
1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.

Intel NUC8i5BEH Specifications

General

BIOS type	EEPROM
BIOS memory size	64 Mbit
Processor socket	BGA 1528
Audio output channels	7.1 channels
Motherboard form factor	UCFF
Compatible processor series	Intel® Core™ i5
Consumer infrared Rx sensor	Yes
Supported RAID configuration	2.5\
Trusted Platform Module (TPM)	No
Number of processors supported	1
System Management BIOS (SMBIOS) version	2.5
Export Control Classification Number (ECCN)	5A992C
Commodity Classification Automated Tracking System (CCATS)	G157815L2
ARK ID	126148
Safety	IEC 60950-1, UL 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60950-1
Status	Launched
Cooling type	Active
Product type	Mini PC barebone
Product color	Black
Product family	Intel NUC
Product series	Intel NUC kit
Product codename	Bean Canyon
Cable lock slot type	Kensington
Certification	CISPR 32, FCC, ICES, EN, ETSI EN, AS/NZS, VCCI, KN, CNS, RoHS, WEEE
L3 cache	6 MB
Processor cores	4
Processor model	i5-8259U
Processor threads	8
Processor codename	Coffee Lake
Processor frequency	2.3 GHz
Processor lithography	14 nm
Processor manufacturer	Intel
Processor boost frequency	3.8 GHz
Thermal Design Power (TDP)	28 W
Memory bandwidth supported by processor (max)	38.4 GB/s
Maximum internal memory supported by processor	32 GB
Memory voltage	1.2 V
Memory channels	Dual-channel
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Removable memory card slot	microSDXC with UHS-I support
Supported memory clock speeds	2400 MHz
Maximum graphics card memory	32768 MB
Number of displays supported	3
On-board graphics card model	Intel Iris Plus Graphics 655
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
RAID levels	0, 1
SSD form factor	M.2
Compatible memory cards	MicroSDXC
Storage drive sizes supported	M.2, 2.5 \
Supported storage drive types	HDD & SSD
LAN controller	Intel® I219-V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	5.0
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN controller model	Intel Dual Band Wireless-AC 9560
USB version	2.0/3.2 Gen 2 (3.1 Gen 2)
Graphics output	HDMI 2.0a; USB-C (DP1.2)
USB ports quantity	6
USB 2.0 ports quantity	0
M.2 card slot (storage)	2242/2280
Power supply	90 W
Power supply type	External AC adapter
PCI Express slots version	3.0
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
HDD size	2.5 \
Launch date	Q3'18
Audio channels	7.1
DC input voltage	12 - 19 V
Processor ARK ID	135935
Additional headers	CEC, 2x USB2.0, FRONT_PANEL
Form factor	UCFF (4\
Last change	64158002
Built-in WiFi	Intel Wireless-AC 9560 + Bluetooth 5.0
Supported storage drives form factor (internal)	M.2 and 2.5\
Harmonized System (HS) code	84713000
Processor included	Intel® Core™ i5-8259U Processor (6M Cache, up to 3.80 GHz)
Compatible operating systems	Windows 11 (64-bit), Windows 10 (64-bit)
Windows operating systems supported	Windows 11 x64, Windows 10 x64

Weight and Dimensions

Depth	112 mm
Width	117 mm
Height	51 mm
