Intel NUC8i7BEH User Manual

User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH
3
This guide tells you how to:
• Install and remove memory
• Install an M.2 SSD
• Install a 2.5” drive
• Install a VESA mount bracket
• Connect power
• Install an operating system
• Install the latest device drivers and software

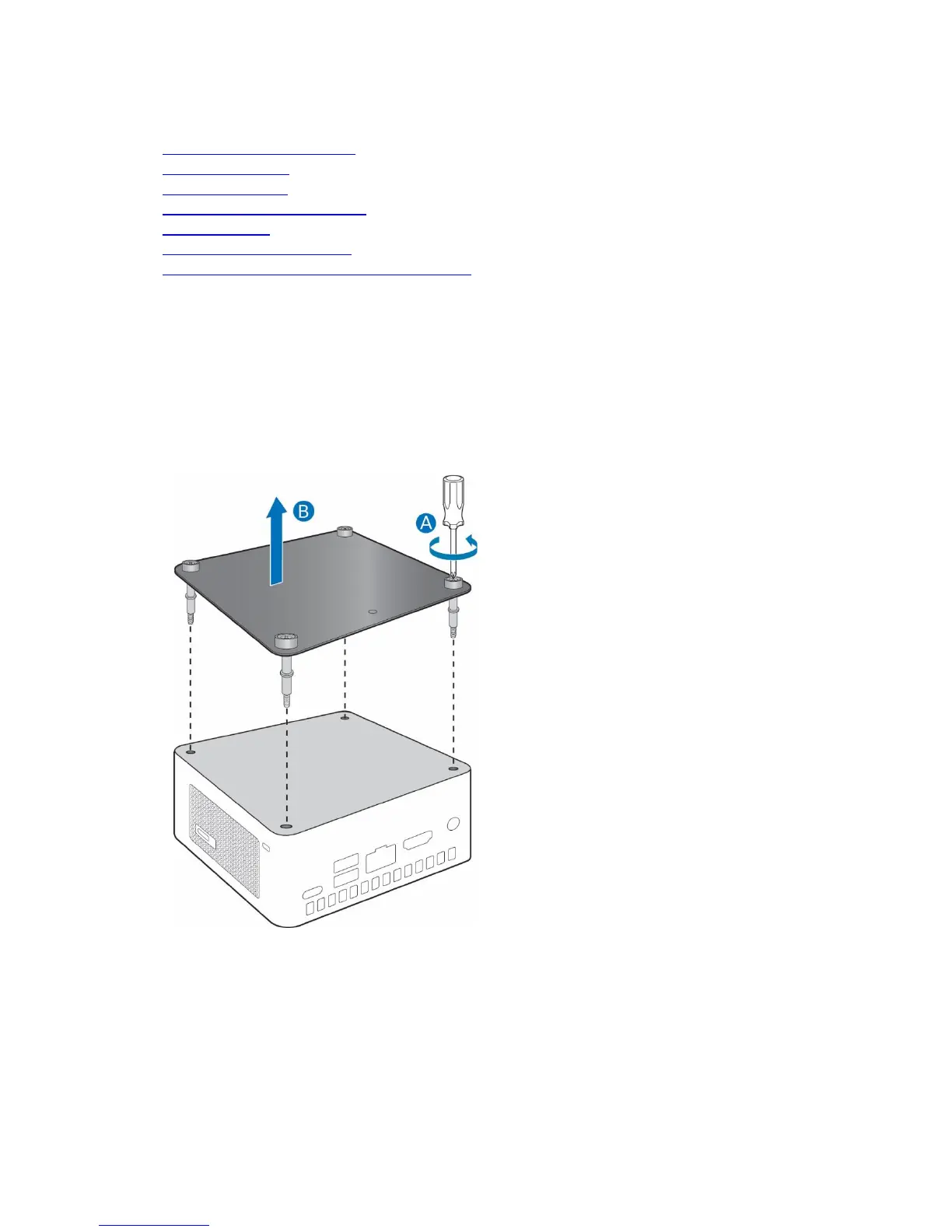

Open the Chassis
To open the Intel NUC chassis, follow these steps:
1. Unscrew the four corner screws on the bottom cover of the chassis and lift the cover.

Intel NUC8i7BEH Specifications

General

ARK ID	126140
Safety	IEC 60950-1, UL 60950-1, EN 60950-1, CAN/CSA-C22.2 No. 60950-1
Status	Launched
Chassis type	UCFF
Cooling type	Active
Product type	Mini PC barebone
Product color	Black
Product family	Intel NUC
Product series	Intel NUC kit
Cable lock slot	Yes
Product codename	Bean Canyon
Cable lock slot type	Kensington
BIOS type	EEPROM
BIOS memory size	64 Mbit
Processor socket	BGA 1528
Audio output channels	7.1 channels
Compatible processor series	Intel® Core™ i7
Supported RAID configuration	2.5\
Trusted Platform Module (TPM)	No
Number of processors supported	1
System Management BIOS (SMBIOS) version	2.5
RAID levels	0, 1
Compatible memory cards	MicroSDXC
Storage drive sizes supported	2.5, M.2 \
Supported storage drive types	HDD & SSD
Number of storage drives supported	2
L3 cache	8 MB
Processor cores	4
Processor model	i7-8559U
Processor threads	8
Processor codename	Coffee Lake
Processor frequency	2.7 GHz
Processor lithography	14 nm
Processor manufacturer	Intel
Processor boost frequency	4.5 GHz
Thermal Design Power (TDP)	28 W
Memory bandwidth supported by processor (max)	38.4 GB/s
Maximum internal memory supported by processor	32 GB
Audio channels	7.1
Graphics output	HDMI 2.0a; USB-C (DP1.2)
DC input voltage	12-19 DC V
Processor ARK ID	137979
Maximum internal memory	32768 MB
Intel® Virtualization Technology (Intel® VT)	VT-d, VT-x
USB ports quantity	6
USB 2.0 ports quantity	0
M.2 card slot (storage)	22x42/80
Number of displays supported	3
On-board graphics card model	Intel Iris Plus Graphics 655
Memory voltage	1.2 V
Memory channels	Dual-channel
Memory slots type	SO-DIMM
Supported memory types	DDR4-SDRAM
Removable memory card slot	microSDXC with UHS-I support
Supported memory clock speeds	2400 MHz
PCI Express slots version	3.0
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth version	5.0
Power supply	90 W
Power supply type	External AC adapter
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Certification	CISPR 32, FCC, ICES, EN, ETSI EN, AS/NZS, VCCI, KN, CNS, RoHS, WEEE
Form factor	UCFF (4\
Last change	64158000
Built-in WiFi	Intel Wireless-AC 9560 + Bluetooth 5.0
Additional I/O headers	CEC, 2x USB2.0, FRONT_PANEL
Supported storage drives form factor (internal)	M.2 and 2.5\
Harmonized System (HS) code	84713000
Processor included	Intel® Core™ i7-8559U Processor (8M Cache, up to 4.50 GHz)
Compatible operating systems	Windows 10, 64-bit*

Weight and Dimensions

Depth	112 mm
Width	117 mm
Height	51 mm
