User Guide for NUC8i7BEH, NUC8i5BEH, NUC8i3BEH
6
Install a 2.5” SSD or Hard Drive
The Intel NUC Kits NUC8i7BEH, NUC8i5BEH, and NUC8i3BEH support an additional 2.5” Solid State Drive
(SSD) or Hard Disk Drive (HDD).
Find compatible 2.5” drives in the Intel Product Compatibility Tool:
 NUC8i7BEH
 NUC8i5BEH
 NUC8i3BEH

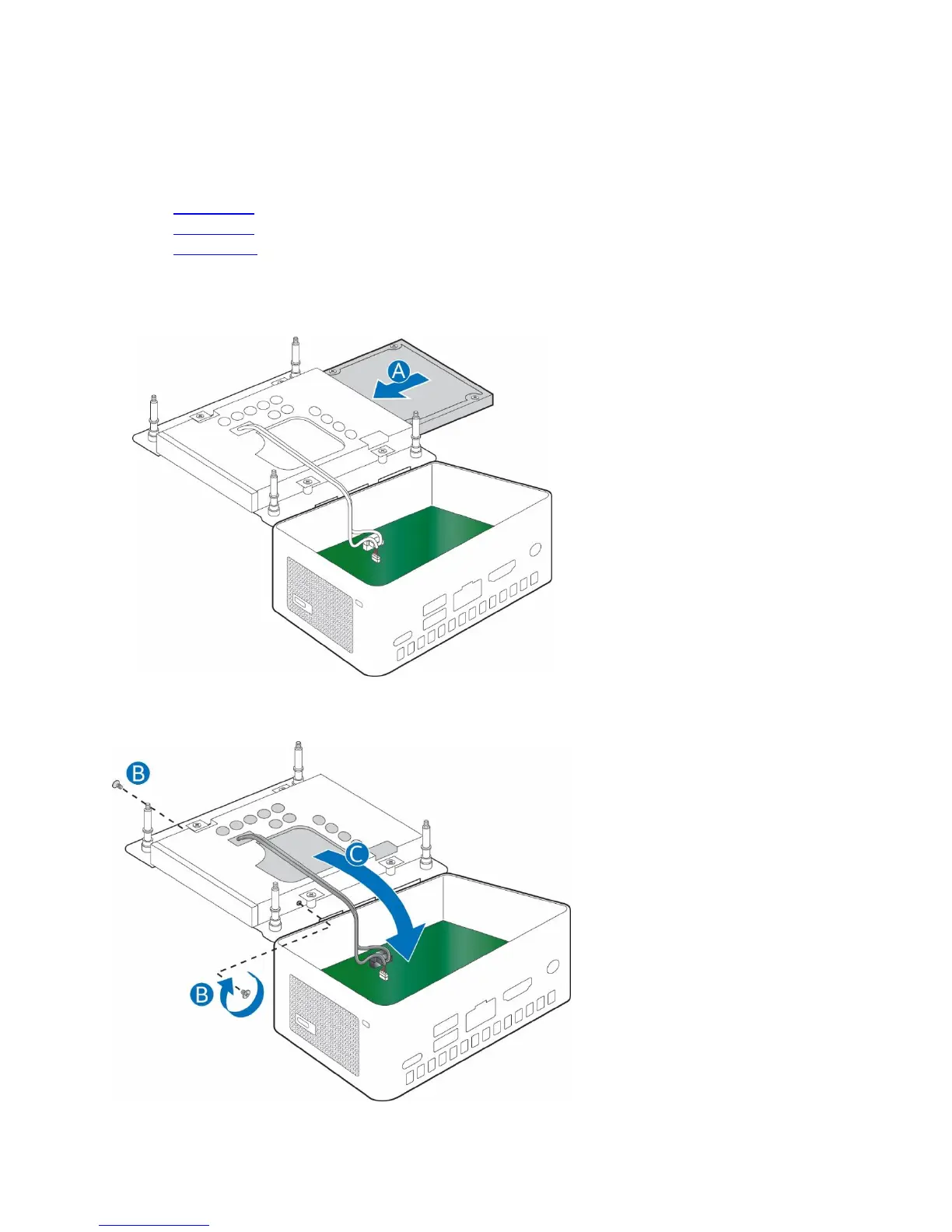

1. Slide the new 2.5” drive into the drive bay, ensuring the SATA connectors are fully seated into the
connectors of the SATA daughter card (A).
2. Secure the drive into the drive bay with the two small silver screws that were included in the box (B).
Set the drive bay bracket down inside the chassis (C).
