Preparing Antenna Supporting Pole
WARNING: Ensure that cables have been run through watertight ttings to prevent
water entry into the vessel when installation is completed.

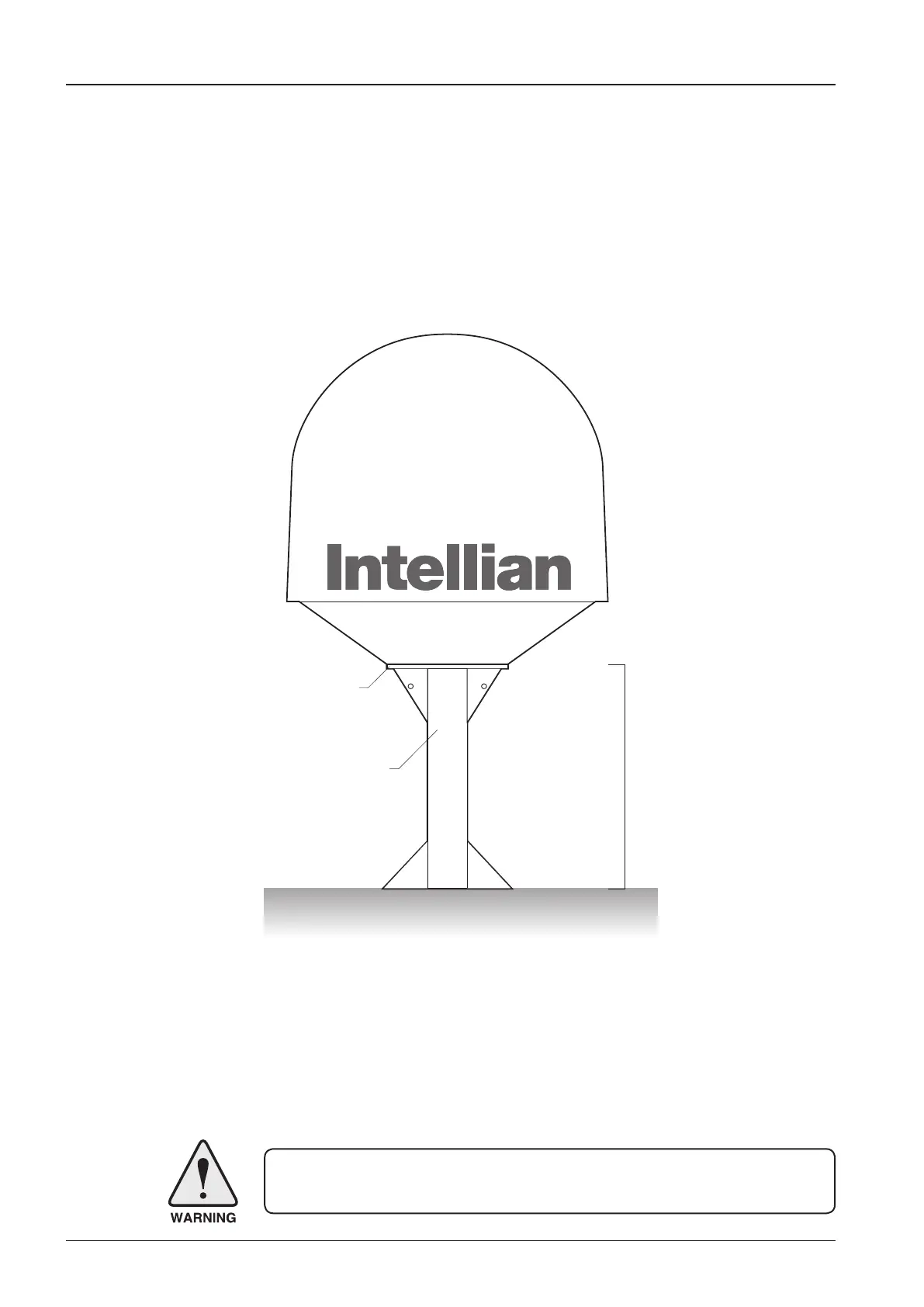

Min. 120 cm (47”)
Mounting Plate
Min. 1 cm (0.4”)
Max. 3 cm (15”)
Support Pedestal
Appr. Ø25.4 cm (10”)
