2 l Assembly Instructions | Montageanleitung
Note: If you purchased this cabinet as assembled version, please check that all components have been tightened
securely before you start using it and before you start installing networking components.
Introduction
• This guide is applicable to all Intellinet Basic Server & Network Cabinets
• Some illustrations may vary slightly from the actual product
• Follow all instruction steps completely
• If the cabinet includes any parts that are not described in this manual, please check the separate “Special
Instructions” sheet that is supplied with the cabinet.
• Depending on the model, different components are included with this cabinet, e. g. a perforated door or a
glass door
• Please read this guide completely before you start assembling

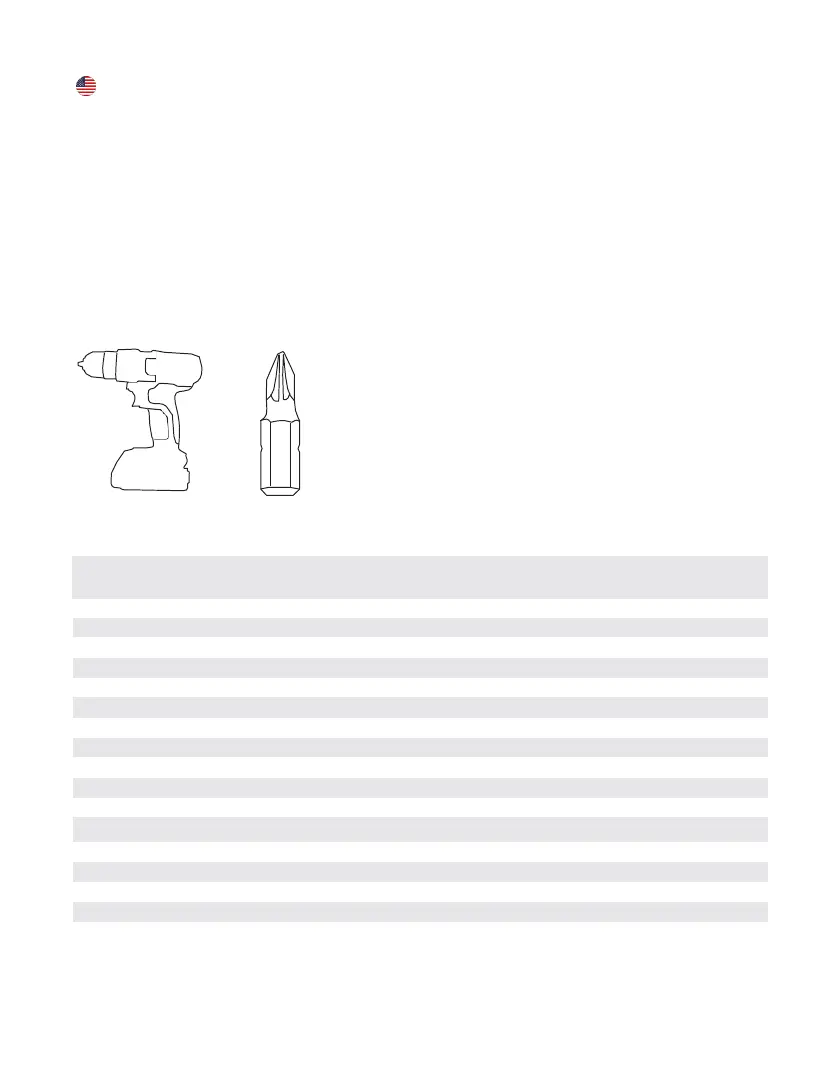

Required Tools
Drill Screwdriver Phillips Screwdriver Bit
M5 X12 Philips External 6-lobe 68 68 24 40
M12X85 Adjustable Feet 4 4 4 4
Bottom Cover 1 1 1 1
Top Cover 1 1 1 1
Vertical Profile 2 2 4 4
Side Support Rail 2 2 2 2
W=800 Adapter 0 2 0 4
19" Mounting Rail 2 2 4 4
Solid Side Panel 2 2 2 2
Solid Rear Panel 1 1 0 0
Front Door 1 1 0 0
Perforated Front&Rear Door 0 0 2 2
Rear Door Fixer 2 2 0 0
Fixation Hooks for pallet 4 4 4 4
Server Cabinets
(26U-47U)
Network Cabinets
(26U-47U)
Note: Use the above parts list to check that all parts are accounted for before you start assembling. If any
parts are missing, please contact your reseller or distributor for replacements.
