Connecting your Speaker System
Connecting your Speaker System
Always switch off the power to the amplifier before connecting speakers.
Choosing the Correct Speaker Cable
It is important to choose cabling designated for audio use and good quality connectors. Using guitar cable or
zip cord (designed for lamps and other electrical use) or poor quality connectors will degrade your
loudspeakers’ audio performance. For distributed loudspeaker systems, we recommend stranded twisted pair
speaker cable with an overall vinyl jacket (plenum rated when installed in required installations).
Always use the appropriate gauge of speaker cable. For cable runs of less than 25 feet (7.5 meters), 18-gauge
cable is adequate. For longer cables, we suggest 16-gauge stranded cable.
Speaker Connection Procedures
After removing approximately 10mm (1/4-inch) of insulation from the ends of the speaker cables, twist the
strands tightly and then twist together with the distribution cable(s), using an appropriate cable connector.
Make certain the wires do not protrude from the cable connector and touch any metal on the speaker chassis, or
any other adjacent metal.

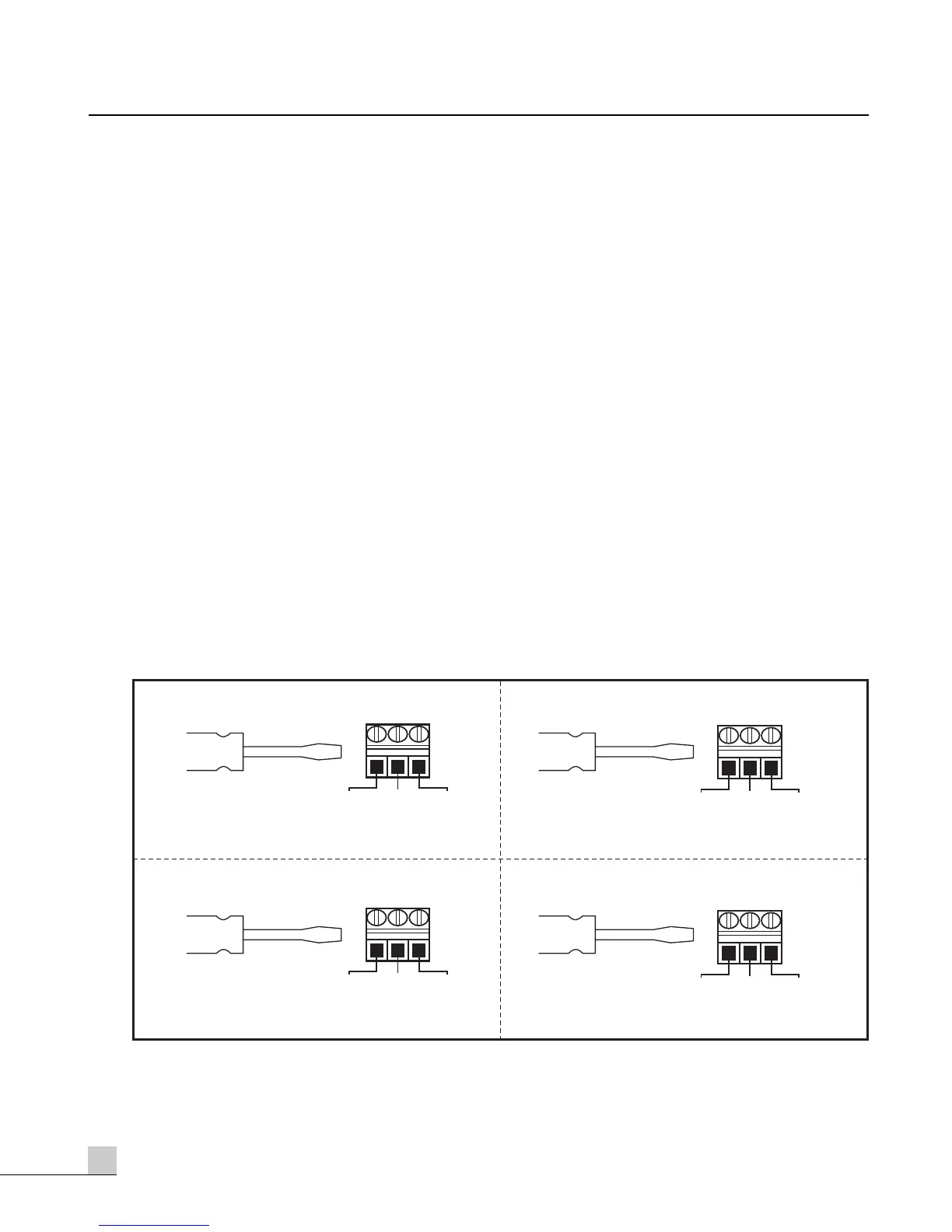

Connect speaker wires to the appropriate terminals for your mode of operation, as shown in the illustration
below.
To Next Page
